Acer Aspire V3-571G User Manual

Service and Maintenance 3-69
Power Board Removal
Prerequisite:
 Upper Case Removal on page 3-36
1. Locate the power board on the underside of the upper cover.
2. Remove the screw securing the power board to the upper case.

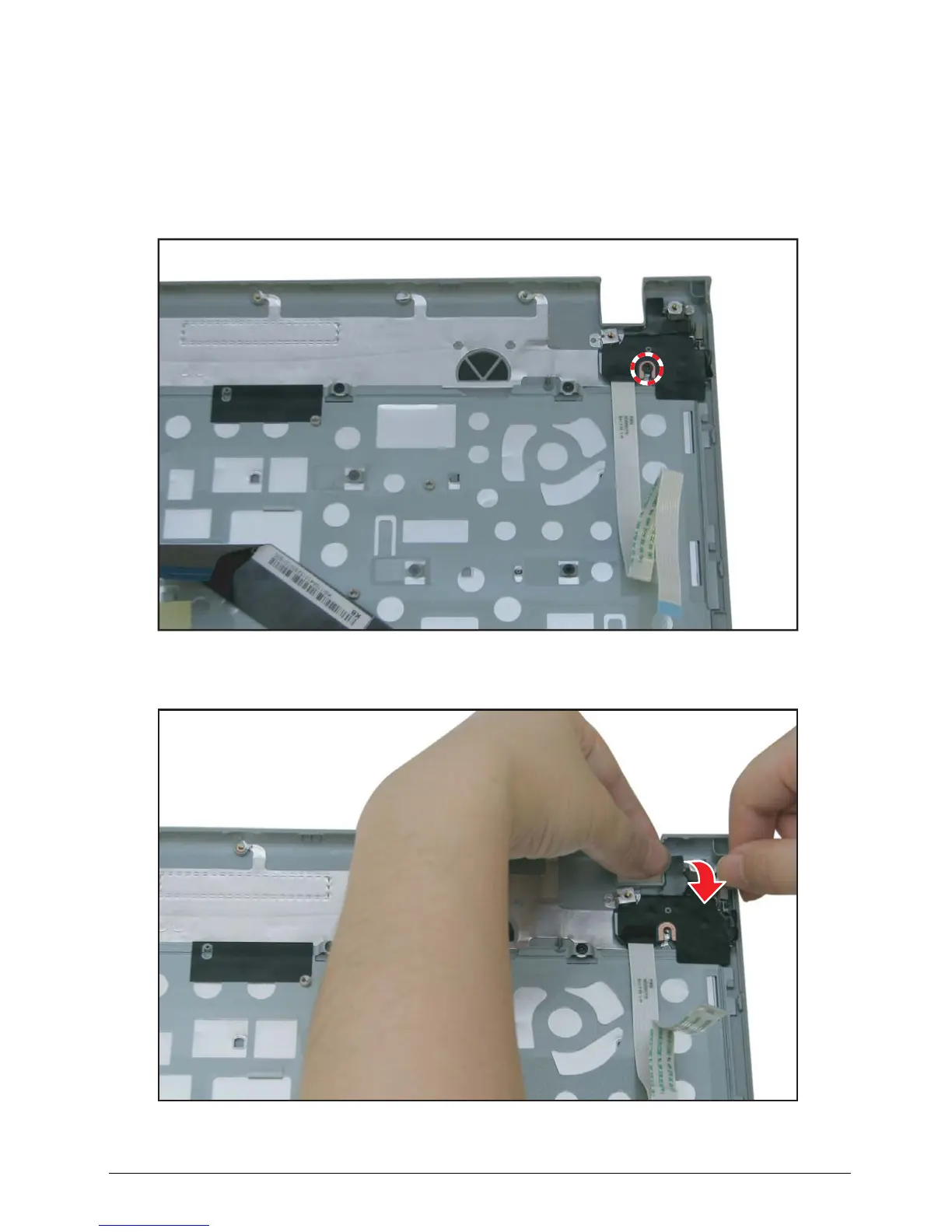

Figure 3:105. Removing the Power Board Screw
3. Detach the protective tape.
Figure 3:106. Detaching the Protective Tape

Acer Aspire V3-571G Specifications

General

Battery	6-cell Li-ion
Weight	2.6 kg
Processor	Intel Core i5
Graphics	NVIDIA GeForce GT 640M
RAM	Up to 8 GB DDR3
Storage	500GB HDD
Display	15.6-inch, 1366 x 768
Operating System	Windows 7/8
