Acer AT2010 Service Guide

27

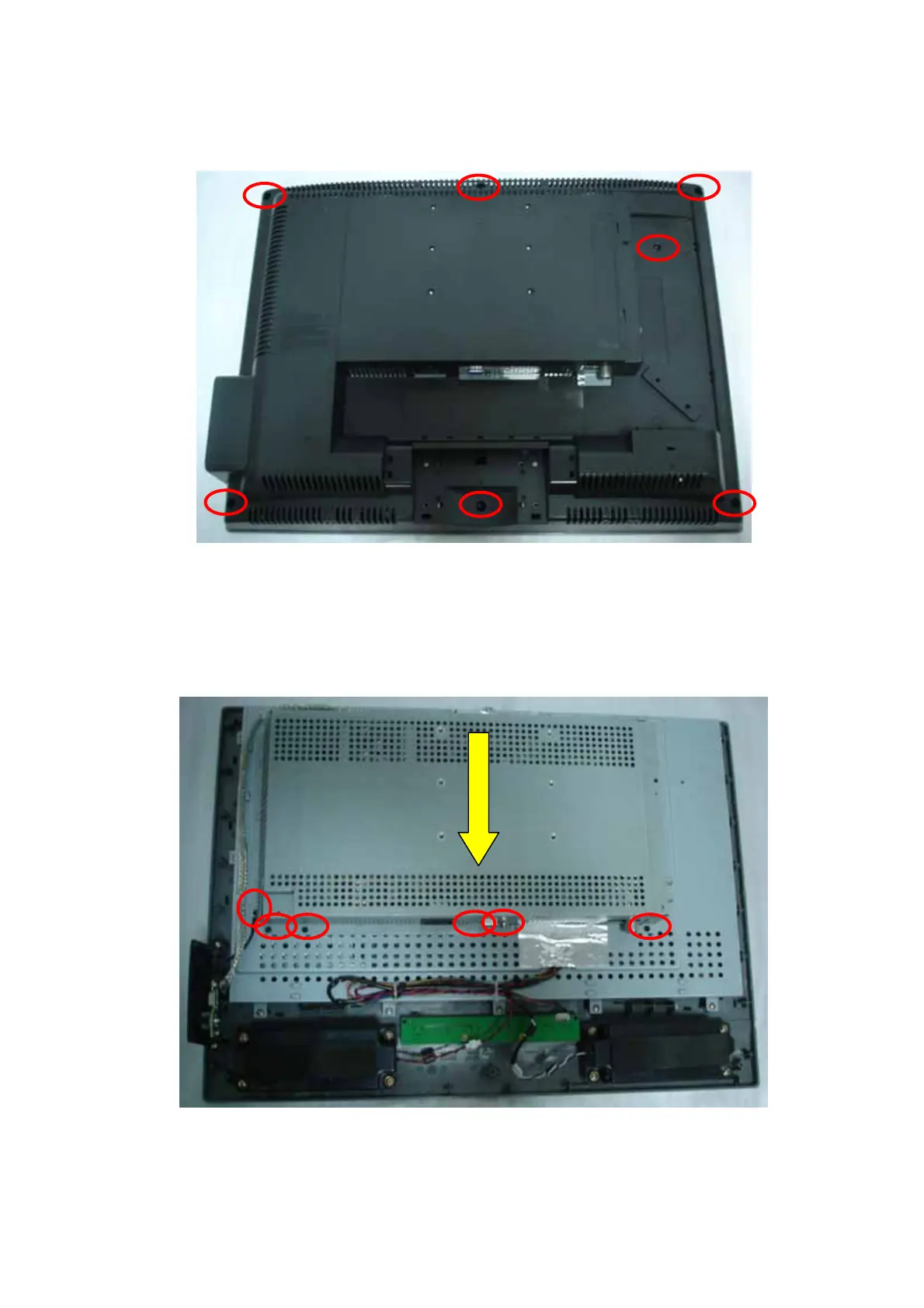

Disassemble the back cover
1. Remove seven screws to remove back cover. (Fig 6)
( Fig 6 )
Disassemble the shield
1. Remove six screws to remove the shield. The screws are marked in red. (Fig 7)
2. Remove the shield as marked with yellow direction.
(Fig 7)

Acer AT2010 Specifications

General

Brand	Acer
Model	AT2010
Category	Monitor
Language	English
