Acer AT2010 Service Guide

28

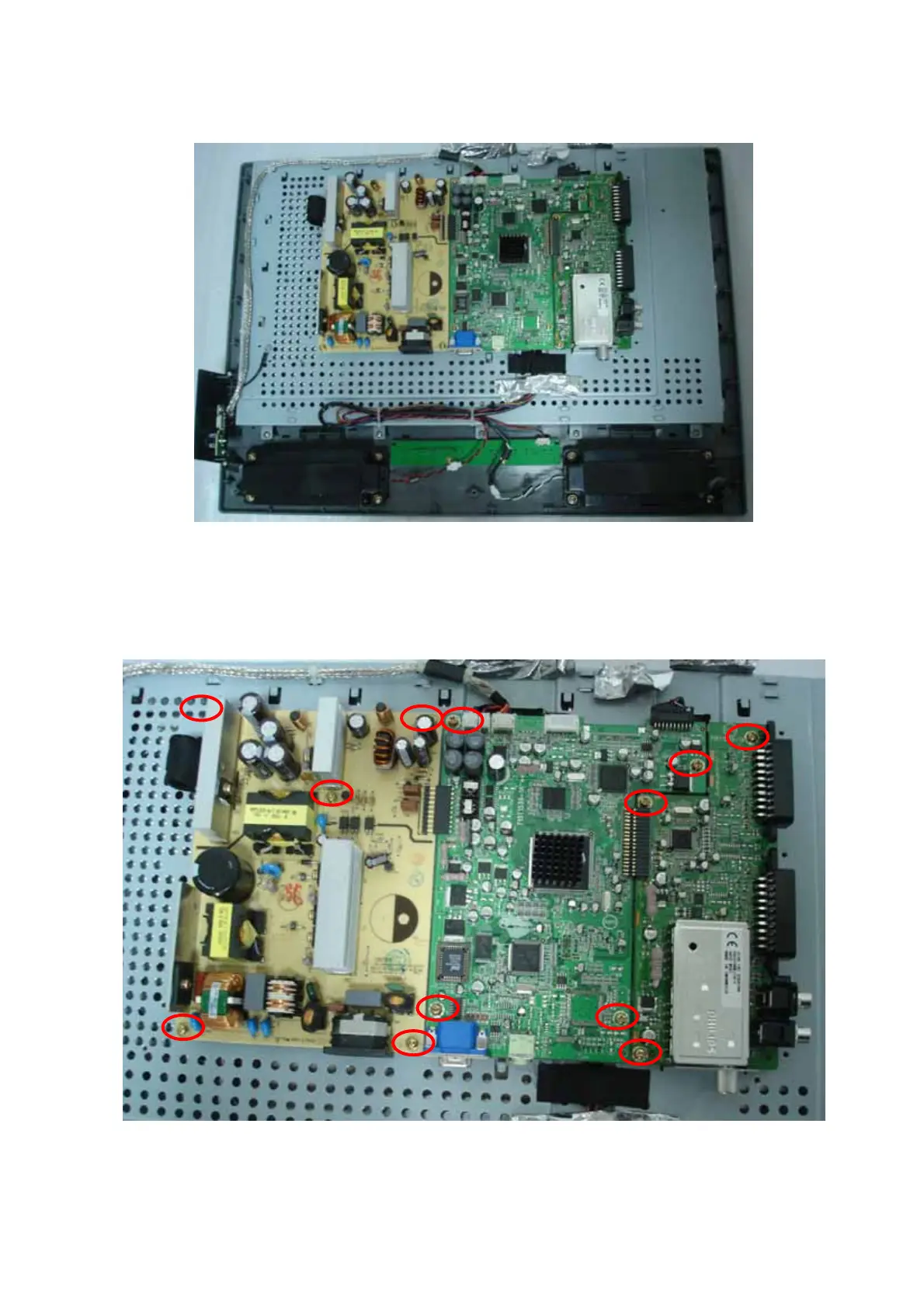

2. Remove the shield, then the main board and power board show as below. (Fig 8)
( Fig 8 )
Remove the main board, I/O board and Power Board
1. Remove the twelve screws marked in red to remove power, I/O board and main board. (Fig 9)
2. Remove all the connecting wires for these boards.
( Fig 9)
