Acer AT2245 - Page 39

39

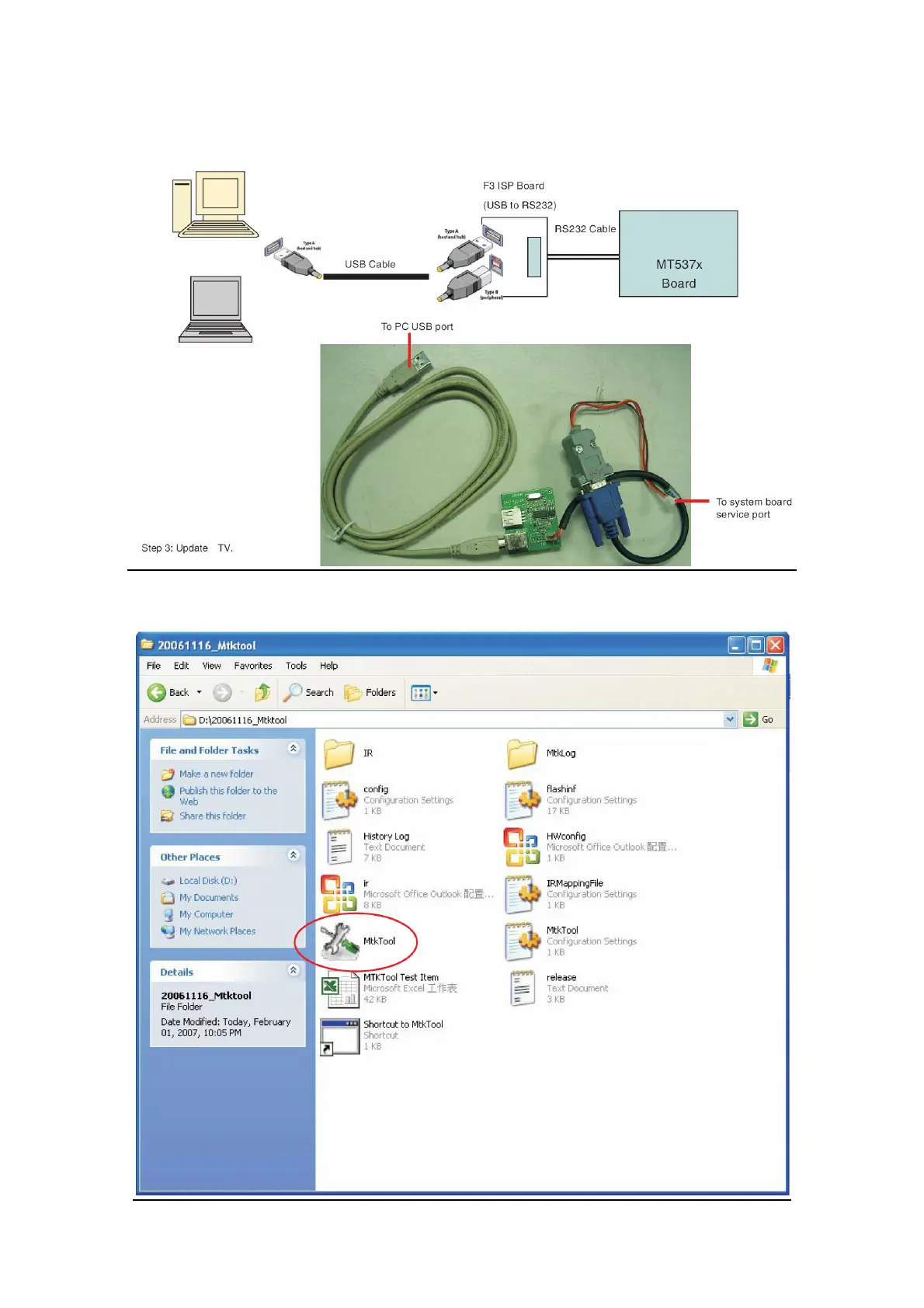

Step 2: Connect to ISP Board.
Use USB port connecting PC & MT537x (or MT5335) Board via ISP board(Code number: 715G537XL2).
USB Cable
Use Desktop PC or Notebook USB Port
Step 3: Update TV.
I. Open the MtkTool to Load .bin file (Example: F3_dbg_image.bin) & Set Auto Set Flash BaudRate
