Acer B287K - 19-Pin Color Display Signal Cable; 20-Pin Color Mini-DP Cable

English

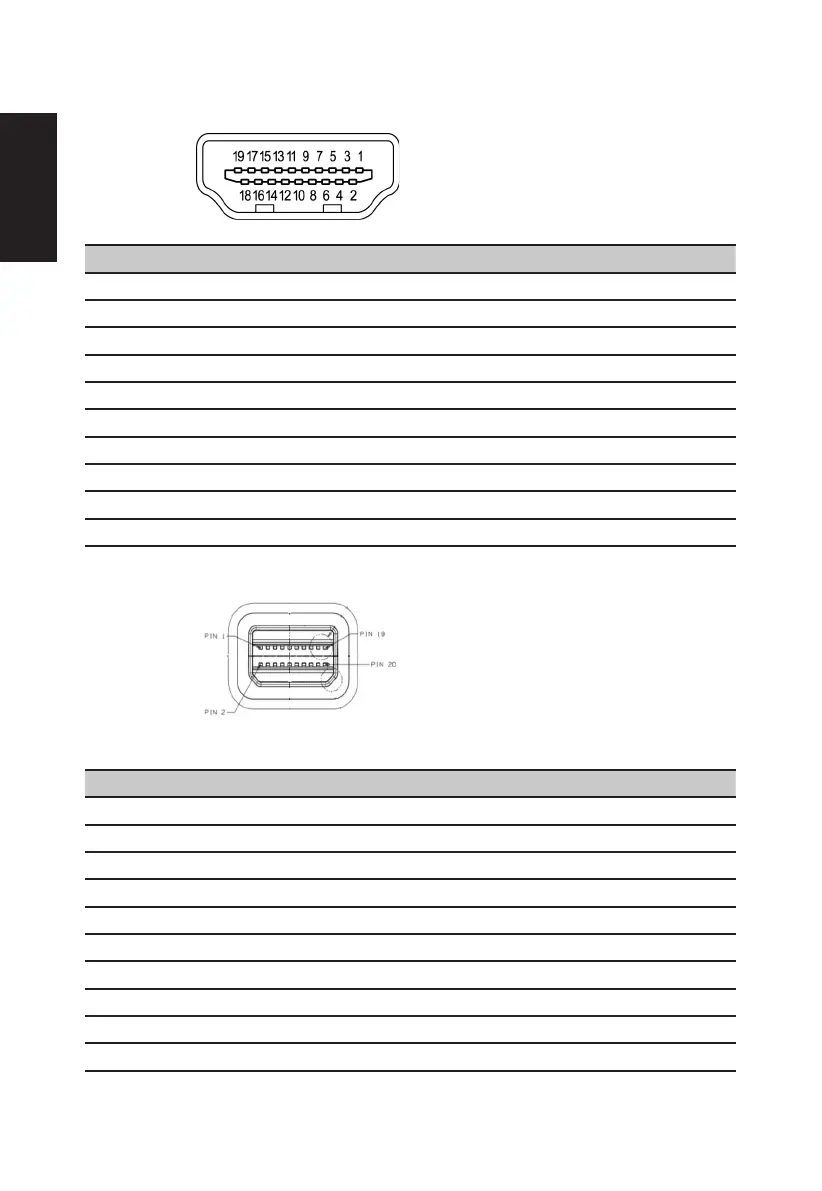

19-pin color display signal cable
PIN No. Description PIN No. Description
1 TMDS Data2+ 2 TMDS Data2 Shield
3 TMDS Data2- 4 TMDS Data1+
 TMDS Data1 Shield 6 TMDS Data1-
 TMDS Data0+ 8 TMDS Data0 Shield
9 TMDS Data0- 10 TMDS Clock+
11 TMDS Clock Shield 12 TMDS Clock-
13  14 
 SCL 16 SDA
  18 
19 Hot Plug Detect
20-pin color Mini-DP cable*
PIN No. Description PIN No. Description
1 ML_Lane 0+ 2 GND
3 ML_Lane 0- 4 ML_Lane 1+
 GND 6 ML_Lane 1-
 ML_Lane 2+ 8 GND
9 ML_Lane 2- 10 ML_Lane 3+
11 GND 12 ML_Lane 3-
13 KONFIG1 14 CONFIG2
 AUX CH+ 16 GND
 AUX CH- 18 Hot Plug
19 Return 20 DP_PWR
