Disassembly Procedures 1-5
Base Cover Removal 0

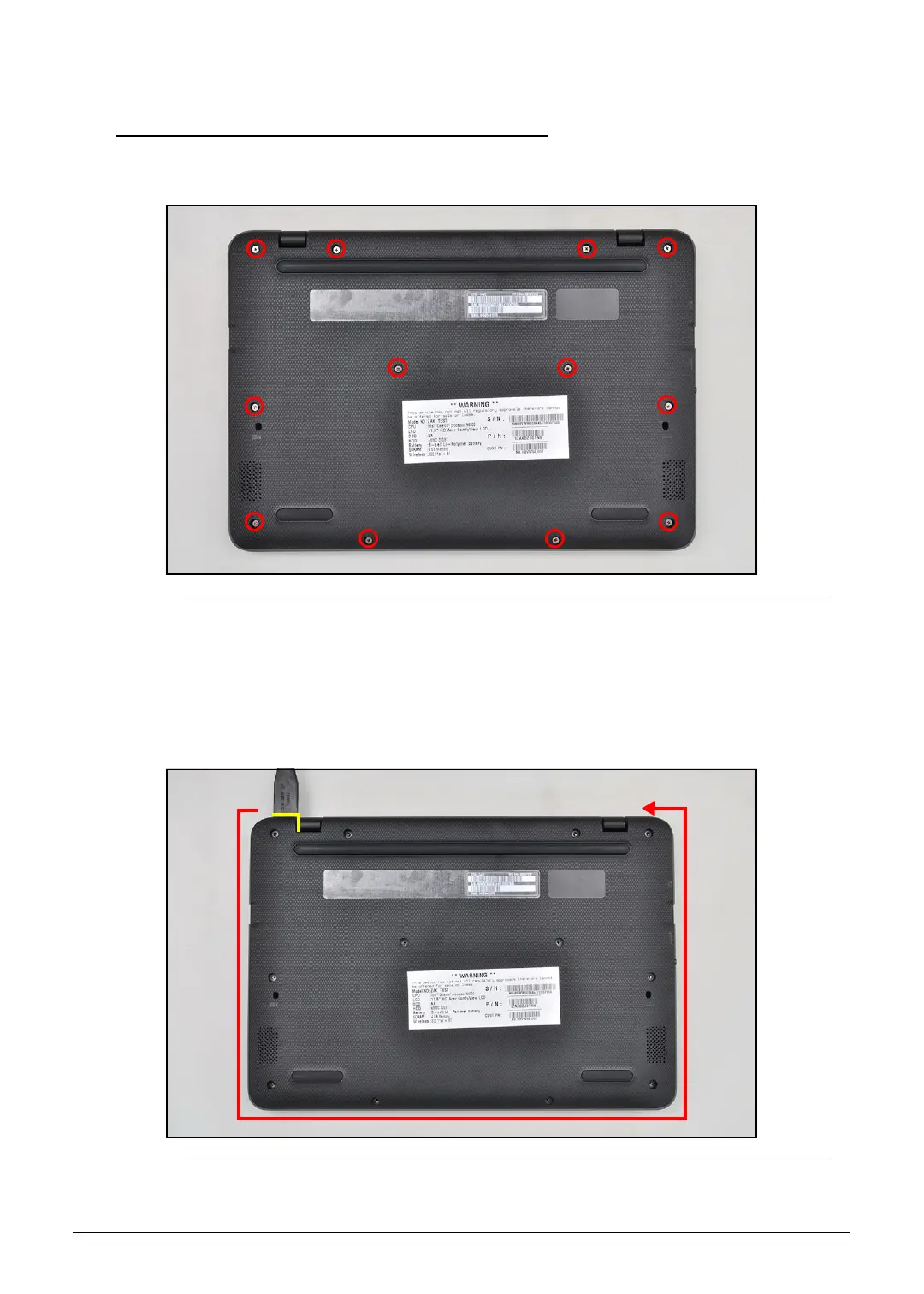

1. Remove twelve (12) screws from the base cover (Figure 1-3).
Figure 1-3. Base Cover Removal
2. Using a scribe, carefully pry open the base cover starting from the gap between the
base cover and top assembly next to the LCD hinge (as indicated in yellow)
(Figure 1-4).
3. Slide the scribe along the edges of the base cover in the direction indicated until all
the latches have been released (Figure 1-4).
Figure 1-4. Base Cover Removal
