1-12 Disassembly Procedures

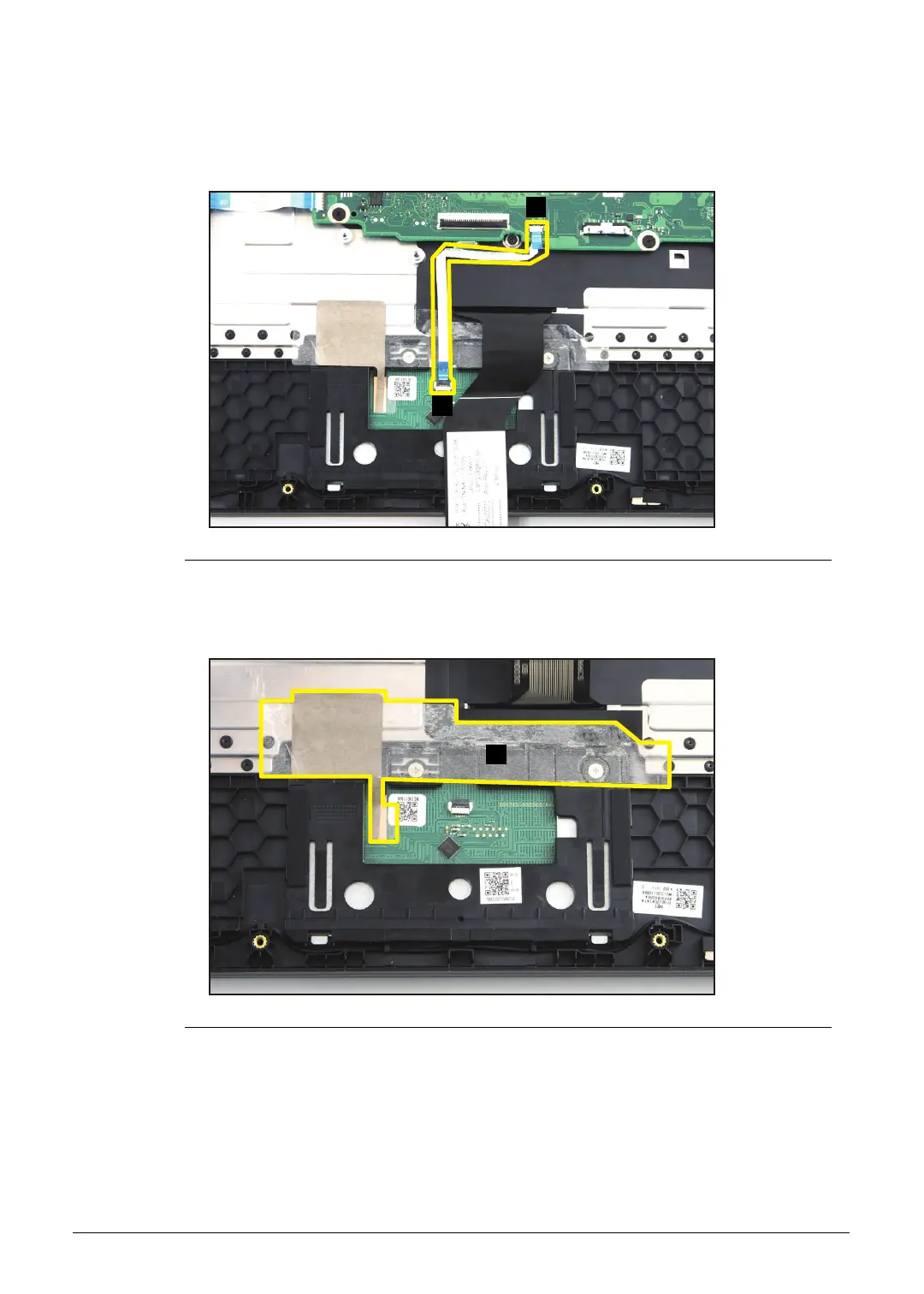

3. Release the latches and disconnect the touchpad FFC from the touchpad module
connector (C) and the mainboard connector (D). Then remove the touchpad FFC from
the top assembly (Figure 1-11).
Figure 1-11. Touchpad Module Removal
4. Detach the insulation mylar (E) from the touchpad module (Figure 1-12).
Figure 1-12. Touchpad Module Removal
C
D
E
