Acer Chromebook Spin R721T User Manual

Disassembly Procedures 1-19
USB Board Removal 0
Prerequisite:
LCD Module Removal (ZHU/ ZHUA Only) or
LCD Module Removal (ZHUB Only)

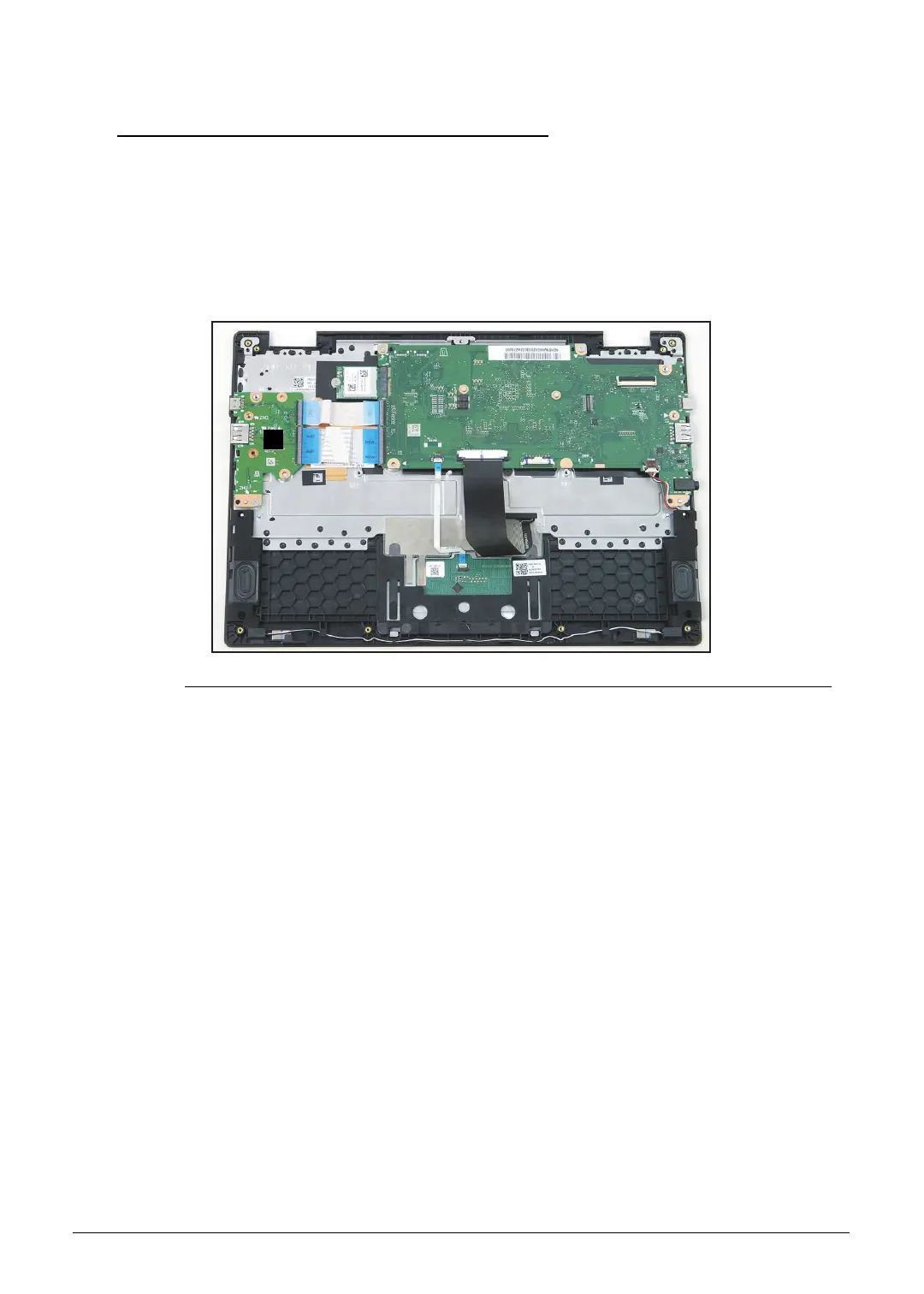

1. Find the USB board (A) on the top assembly (Figure 1-23).
Figure 1-23. USB Board Location
2. Release the latches and disconnect the 30-pin USB board FFC (B) from the mainboard
connector (D) and the USB board connector (F). Remove the 30-pin USB board FFC
from the top assembly (Figure 1-24).
3. Release the latches and disconnect the 40-pin USB board FFC (C) from the mainboard
connector (E) and the USB board connector (G). Remove the 40-pin USB board FFC
from the top assembly (Figure 1-24).
A

Acer Chromebook Spin R721T Specifications

General

Operating System	Chrome OS
Battery Life	Up to 10 hours
Wireless	802.11ac Wi-Fi
Bluetooth	Bluetooth 4.2
Ports	microSD card reader, headphone/microphone combo jack
Battery	3-cell Li-ion
