Graphic board
The computer contains one or two Graphic boards installed in
the PCIE x16 slots. The detail configuration will be differed by
different models.

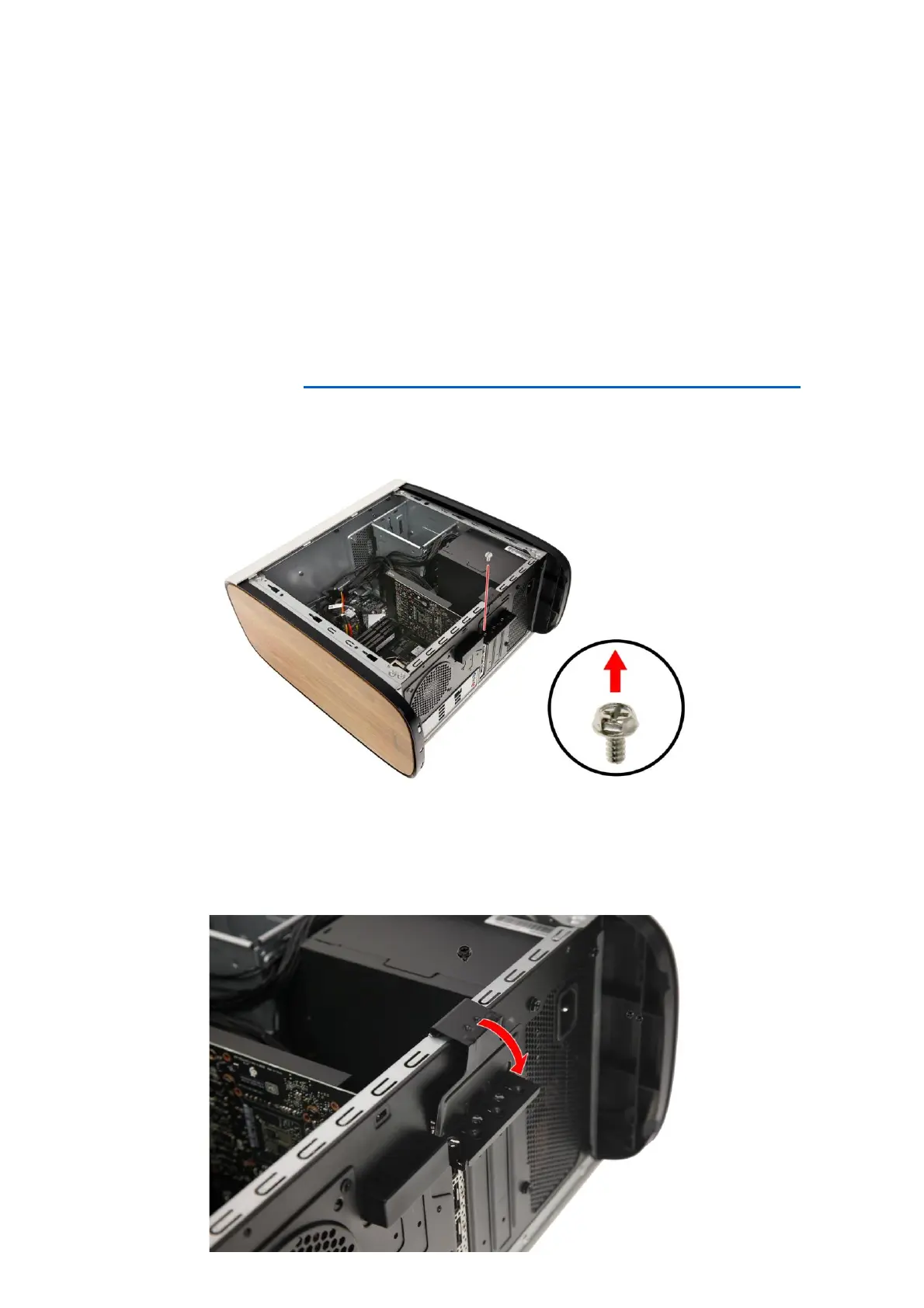

Removing the Graphics board
1. Perform the Pre-installation instructions on page 2.
2. Remove the screw that secures the graphics board to
the chassis.
3. Unlatch the metal clip that secure the graphics board
to the chassis.
