Service and Maintenance 3-38
LVDS Cable Installation
1. Connect the LVDS cable connector to the LCD panel connector.

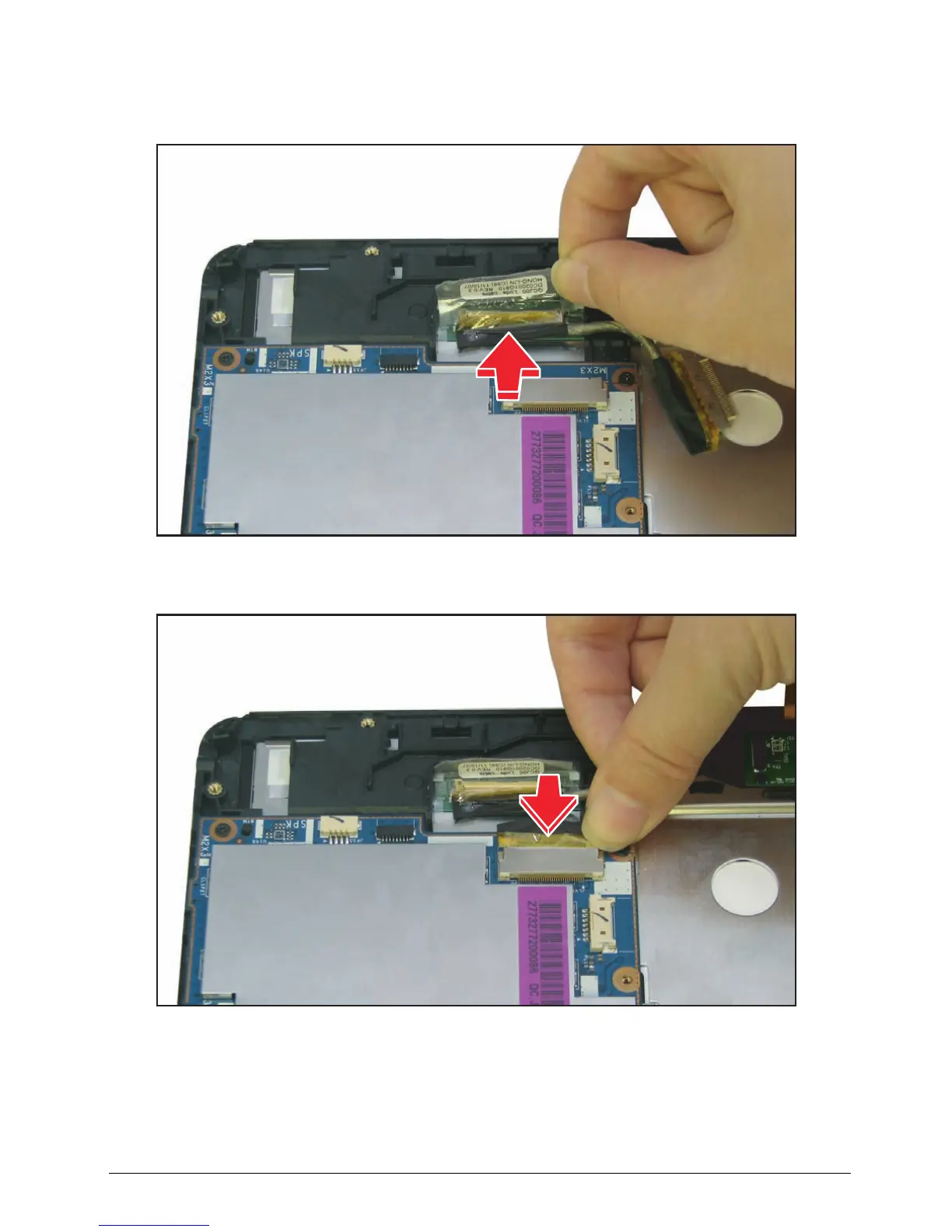

Figure 3:58. Connecting the LVDS Cable (1 of 2)
2. Connect the LVDS cable connector to the mainboard connector.
Figure 3:59. Connecting the LVDS Cable (2 of 2)
