Acer TMP214-52 - WLAN Module Removal (LTE SKU Only)

1-10 Disassembly Procedures
WLAN Module Removal (LTE SKU Only) 0
Prerequisite:
Battery Pack Removal
1. Find the WLAN module (A) on the top assembly (Figure 1-12).

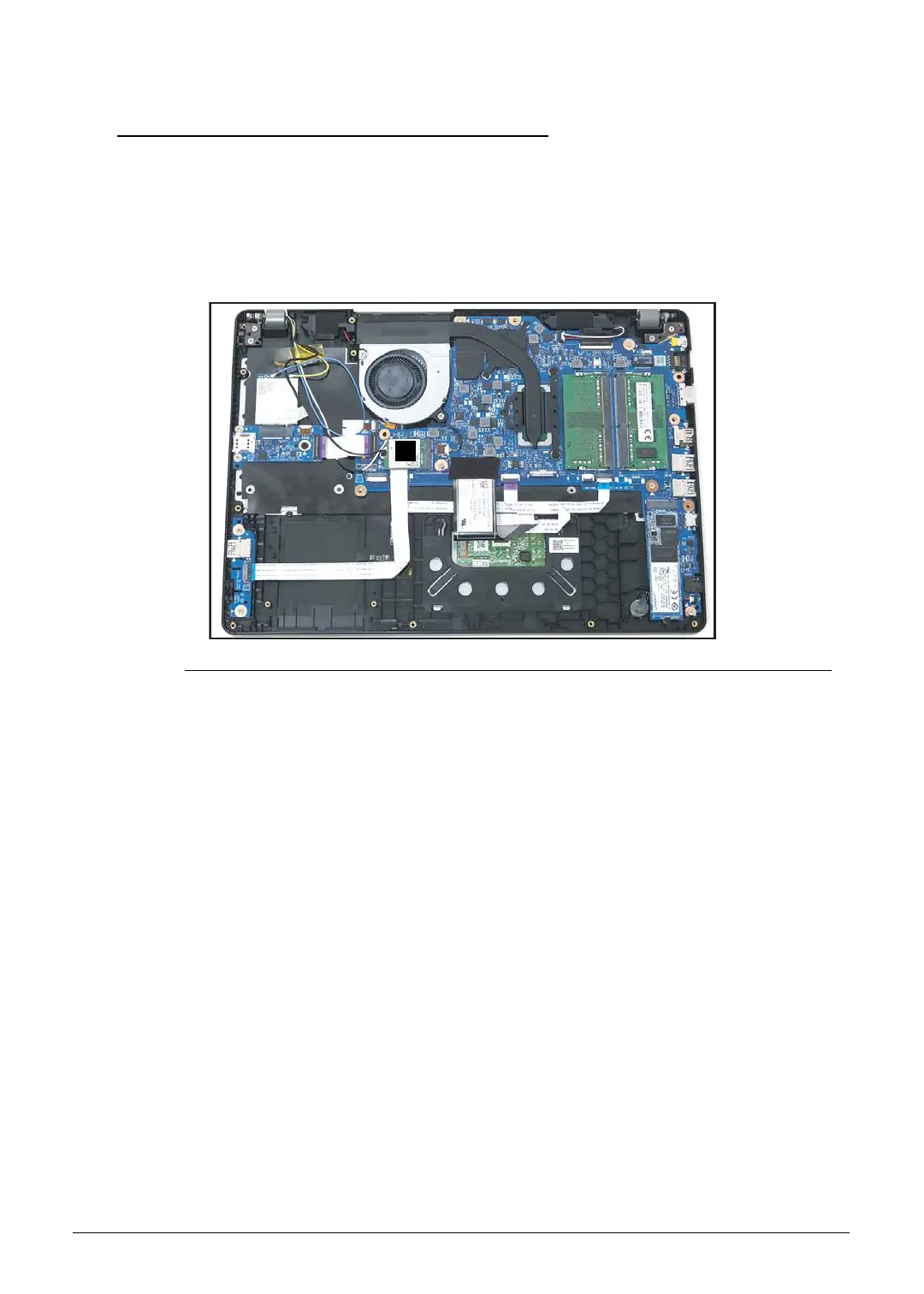

Figure 1-12. WLAN Module Location
2. Disconnect the AUX antenna cable (white-color) from the WLAN AUX pin
(Figure 1-13).
3. Disconnect the MAIN antenna cable (black-color) from the WLAN MAIN pin
(Figure 1-13).
A
