Acer TMP214-52 - HDD Module Removal (HDD SKU Only)

1-18 Disassembly Procedures

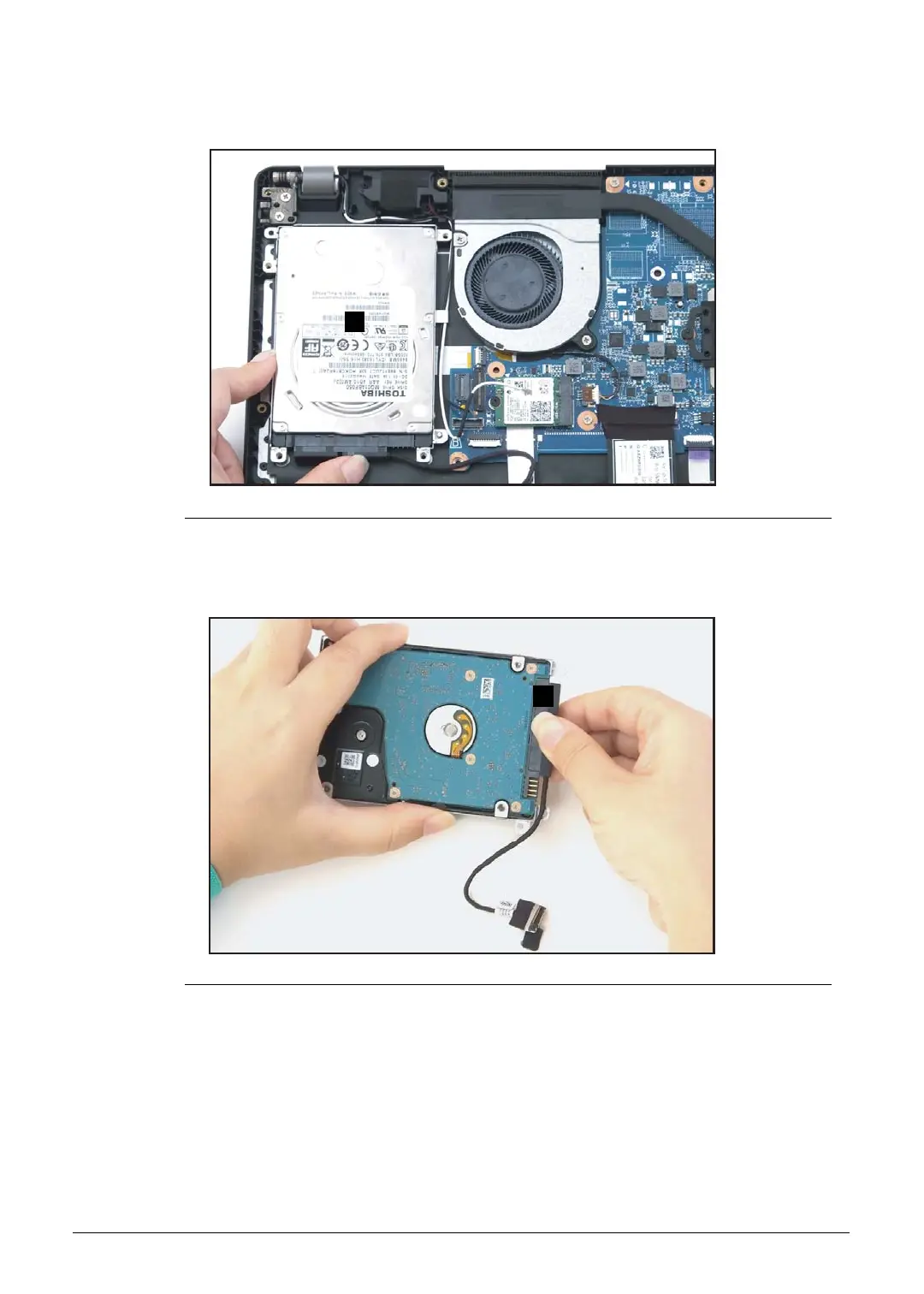

4. Remove the HDD module assembly (D) from its compartment (Figure 1-22).
Figure 1-22. HDD Module Removal
5. Disconnect the HDD cable from the HDD module connector (E) (Figure 1-23).
Figure 1-23. HDD Module Removal
D
E
