1-34 Disassembly Procedures
4. Remove the adhesive tape on the keyboard FPC connector (B) (Figure 1-47).

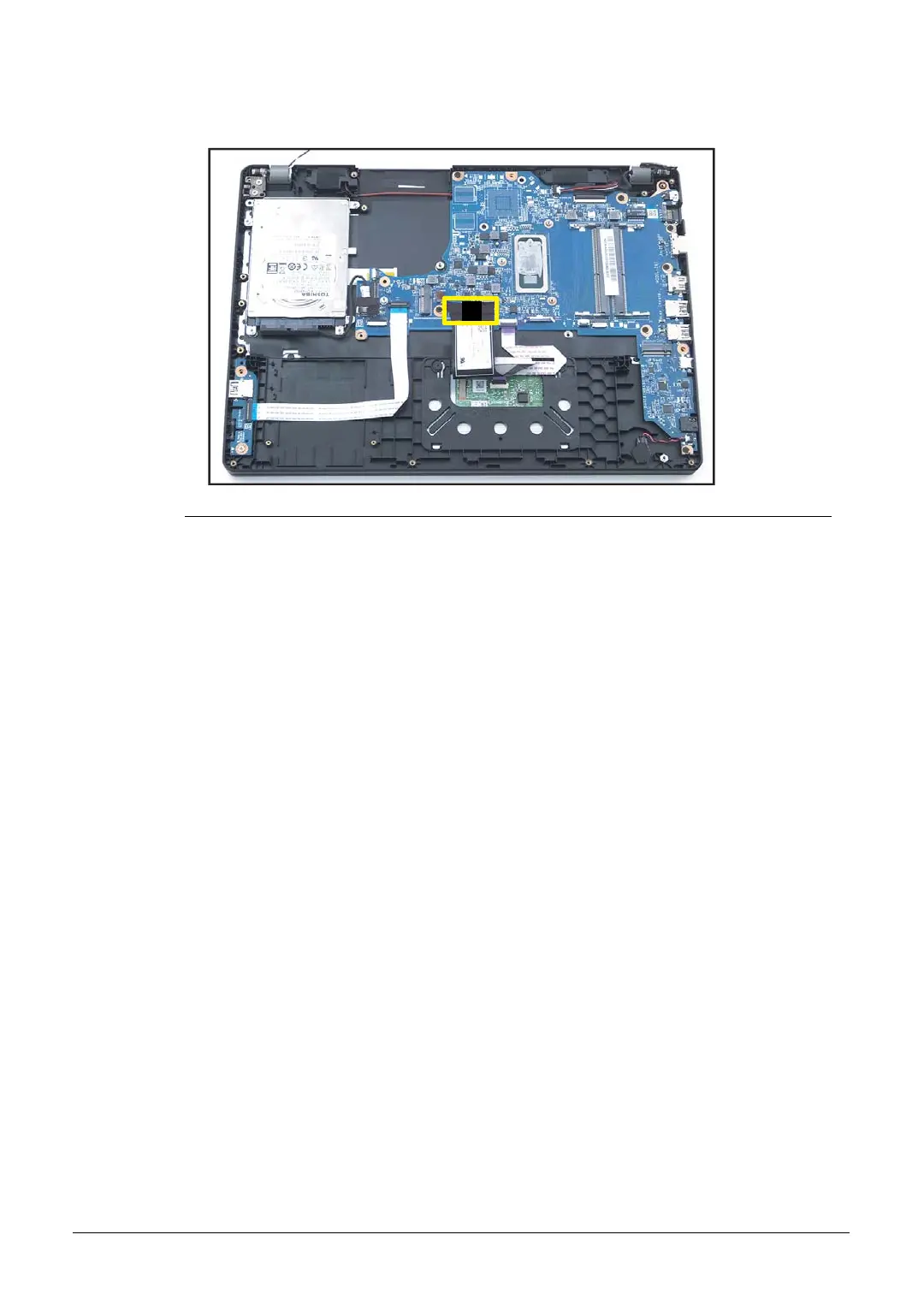

Figure 1-47. Mainboard Removal
5. Disconnect the HDD cable from the mainboard connector (C) (Figure 1-48).
6. Disconnect the USB board FFC from the mainboard connector (D) (Figure 1-48).
7. Disconnect the keyboard FPC from the mainboard connector (E) (Figure 1-48).
8. Disconnect the touchpad FFC from the mainboard connector (F) (Figure 1-48).
9. Pry to detach the adhesive tape underneath the RTC battery. Then remove the RTC
battery (G) (Figure 1-48).
10. Disconnect the eDP cable from the mainboard connector (H) (Figure 1-48).
11. Disconnect the speakers cable from the mainboard connector (I) (Figure 1-48).
B
