Disassembly Procedures 1-35
12. Remove seven (7) screws (J) securing the mainboard in place (Figure 1-48).

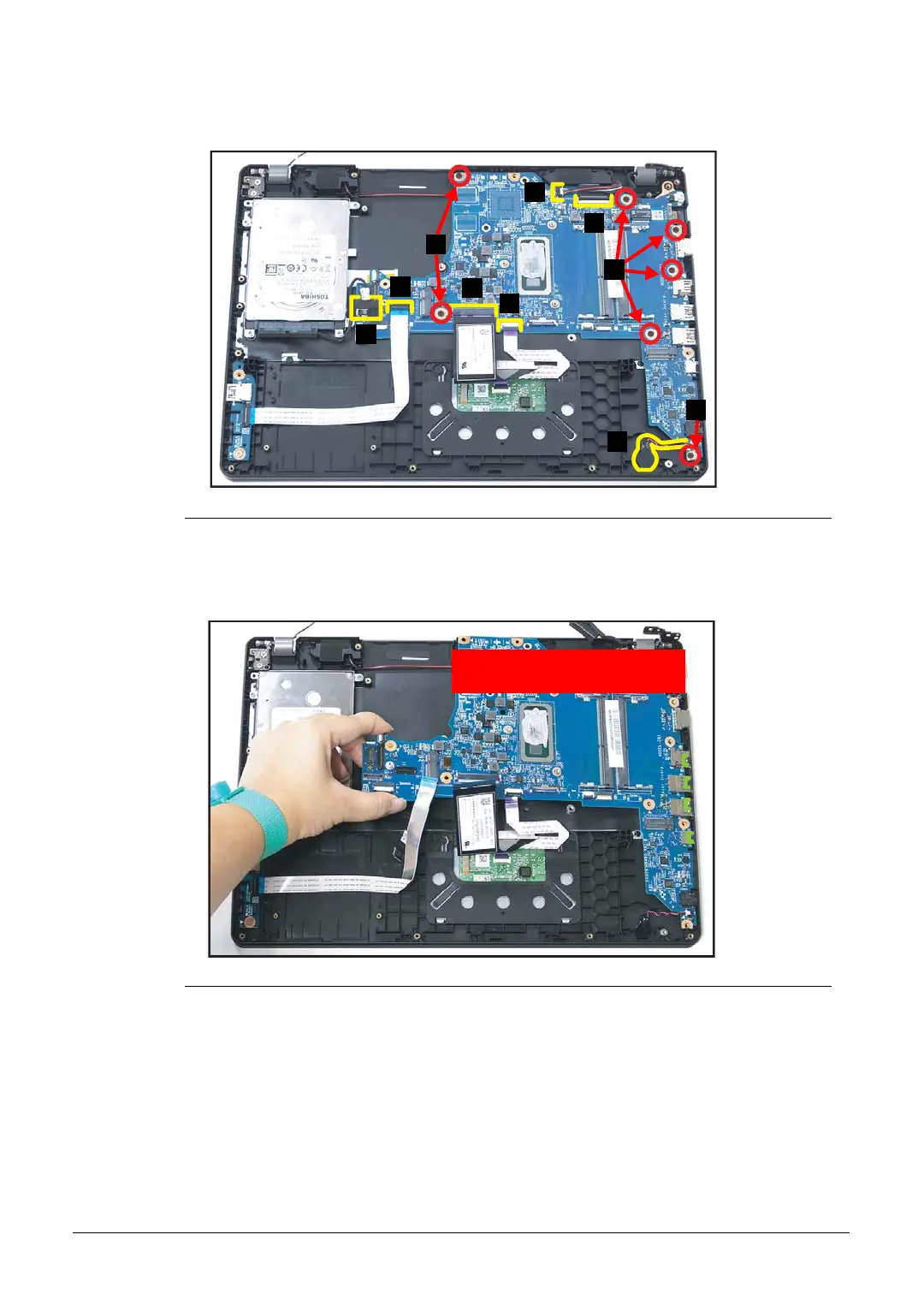

Figure 1-48. Mainboard Removal
13. Release the mainboard from the top assembly and then remove (Figure 1-49).
Figure 1-49. Mainboard Removal
H
I
C
E
D
F
G
J
J
J
WEEE Annex VII Component:
Mainboard
