1-36 Disassembly Procedures
USB board FFC (Flexible Flat Circuit), touchpad FFC, and keyboard FPC
(Flexible Printed Circuit) can be damaged if removed while the mainboard
connectors are locked.

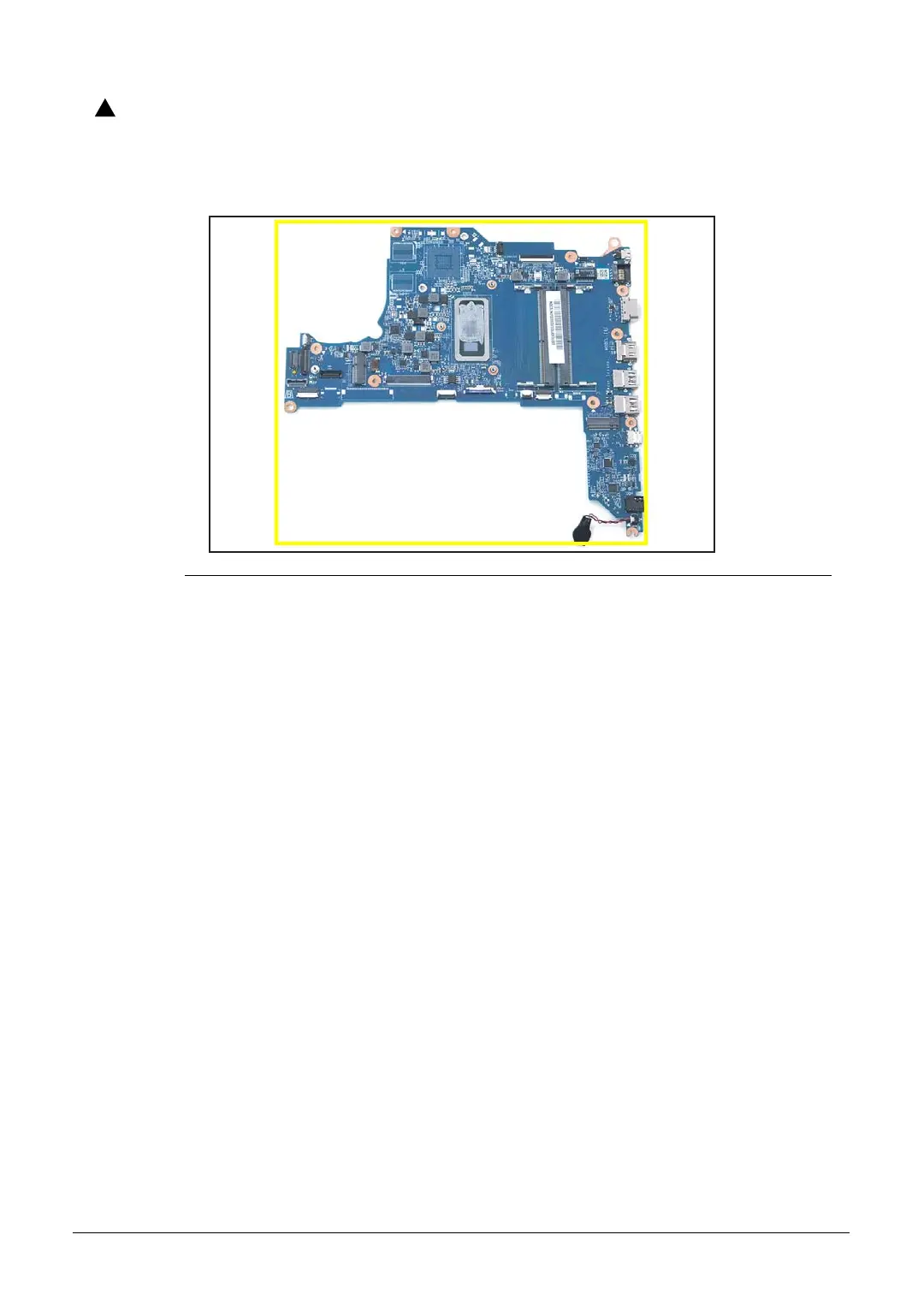

Figure 1-50. Mainboard
Circuit board >10 cm² has been highlighted with a yellow rectangle as
shown in Figure 1-50. Remove the circuit board and follow local
regulations for disposal.
