1-4 Disassembly Procedures
Base Cover Removal 0
1. Remove twelve (12) screws from the base cover (Figure 1-3).

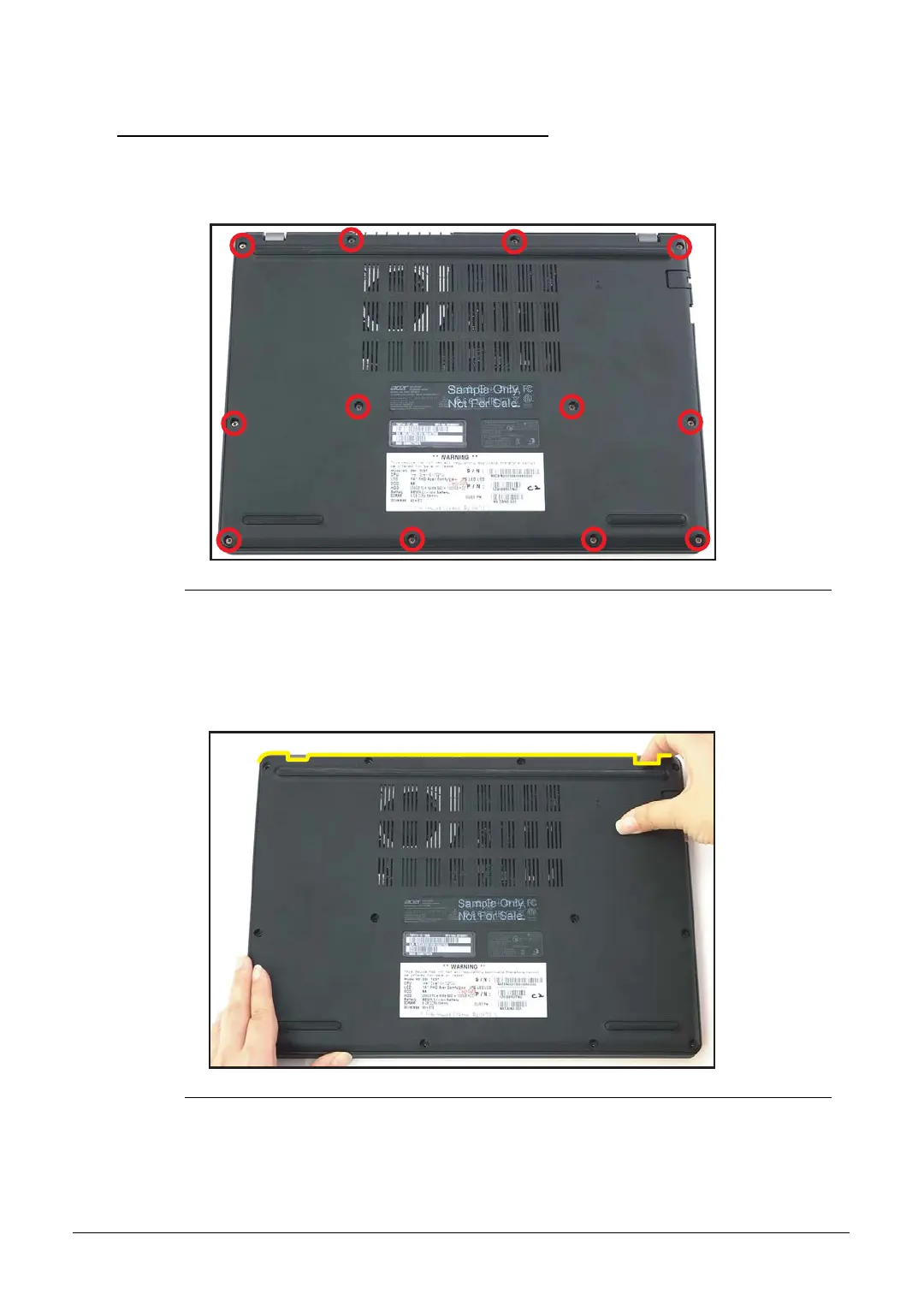

Figure 1-3. Base Cover Removal
2. Carefully pry up the base cover starting from the upper side near the LCD hinges to
release the latches. Then continue releasing the remaining latches on the left and
right sides (Figure 1-4).
Figure 1-4. Base Cover Removal
