Acer TravelMate 290 Series User Manual

Chapter 3 51

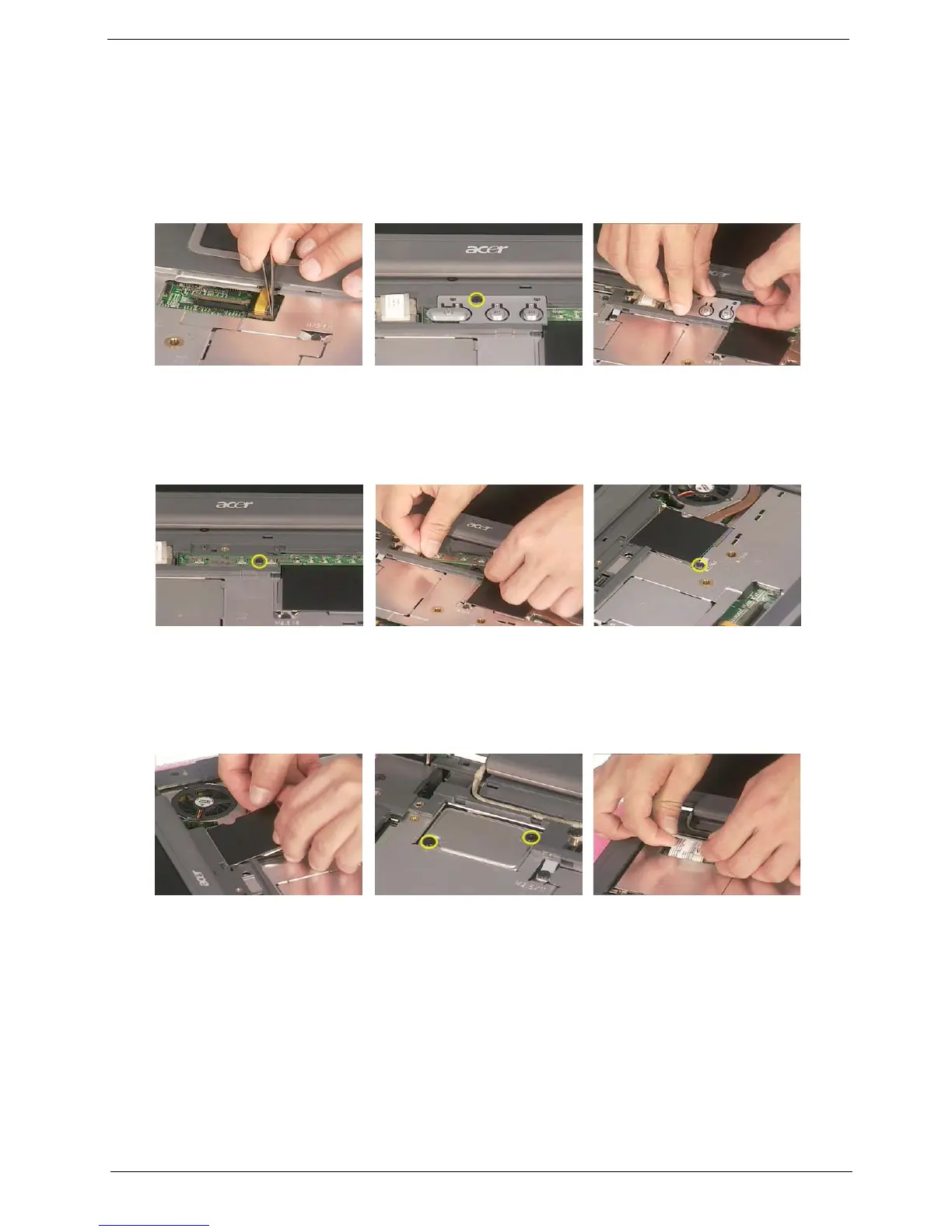

Disassembling the Main Unit
1. See “Removing the Keyboard/LCD Module” on page 49
2. Disconnect the touchpad FPC.
3. Remove the screw that fastens the power button.
4. Then take off the power button.
5. Remove the screw holding the launch board.
6. Take off the launch board.
7. Then remove the screw that secures the thermal plate.
8. Take off the thermal plate.
9. Remove the two screws that fasten the MDC cover plate then remove it.
10. Disconnect the MDC card connector.
11. Disconnect the modem card cable.
12. Disconnect the fan cable.
13. Remove the four screws according to the order as shown.

Acer TravelMate 290 Series Specifications

General

Chipset	Intel 855GME
Processor	Intel Pentium M or Intel Celeron M
RAM	Up to 2GB DDR
Storage	40GB to 80GB HDD
Display	15-inch TFT
Resolution	1024 x 768 (XGA)
Graphics	Intel Extreme Graphics 2
Optical Drive	DVD-ROM
Networking	10/100 Mbps Ethernet, 56K V.92 modem
Ports	USB 2.0, VGA, Parallel, Serial
Battery	Li-ion battery
Operating System	Windows XP Professional or Windows XP Home
