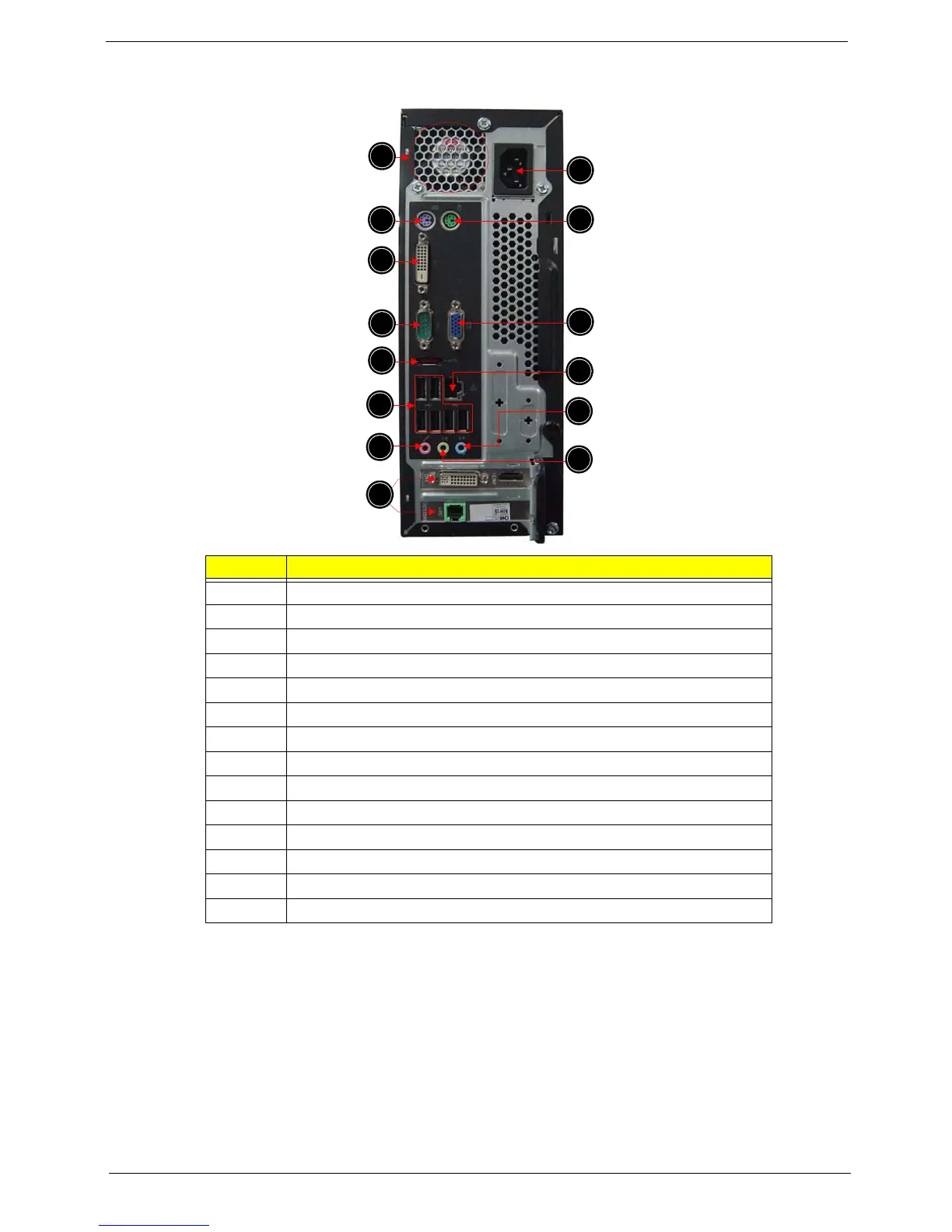

Acer Veriton X680G - Rear Panel

Chapter 1 7
Rear Panel
No. Component
1 Fan aperture
2 PS2 keyboard connector
3 DVI port
4COM port
5e-SATA port
6 USB 2.0 ports
7 Microphone/speaker-out/line-in jack
8 Expansion slot(graphics card and modem card)
9 Line-out jack
10 Line-in jack
11 RJ45 LAN port
12 D-sub port
13 PS2 mouse connector
14 Power connector
