Acer XB253Q

ACER XB253Q
11

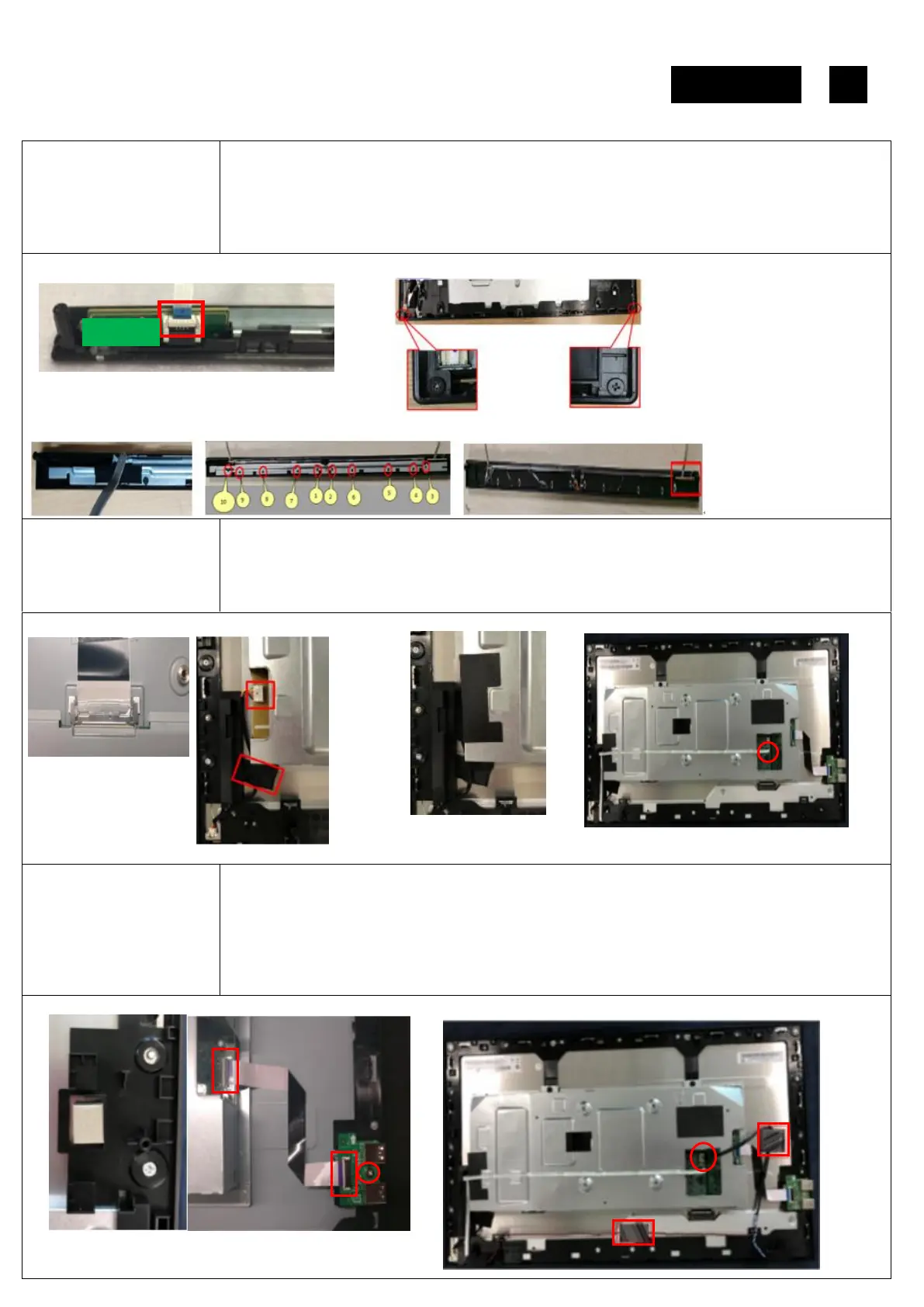

S3
Assemble ASSY TRIM
and Light bar
Insert the LED wire into the LED BD and assemble the LED BD into the TRIM as picture 1.
Assemble the ASSY TRIM on the MF.
Lock 2 screws to the ASSY TRIM as the picture 2.
Assemble the Light Bar and LED BD into the ASSY TRIM as the picture 3.
Assemble the SHD .Lock 10 light bar screws as the picture 4.
Stick a piece of adhesive tape cover the SHD as the picture 5.
PICTURE 1 PICTURE 2
PICTURE 3 PICTURE 4 PICTURE 5
S4
Assemble SHD
Insert the LVDS into the Panel, locate the SHD on the Panel and insert the big connector of the
lamp wire to P/BD as picture 1.
Paste 1 mylar on SHD as picture 2.
Tear off the 4 gums on the LED wire, arrange the LED wire and insert the LED wire into the I/F
BD as picture 3.
PICTURE 1 PICTURE 2 PICTURE 3
S5
Assemble USB BD and
SPK
Assemble the Sponge on the Panel as the picture 1.
Insert USB-FFC into side USB BD. Assemble the side USB BD on the MF and lock 1 USB
screws; then insert the wire of SPK into the I/F BD as the picture 1.
Insert the SPK wire to the I/F BD as the picture 2.
Arrange the wire of the SPK (Attention: Keep the speaker wire straight, and the middle of the
speaker wire is not allowed to be placed on the step of the MF.)
Tear 2 tapes to fasten the SPK wire as the picture.
PICTURE 1 PICTURE 2
LED BD
