Acer XB253Q

ACER XB253Q
12
S6

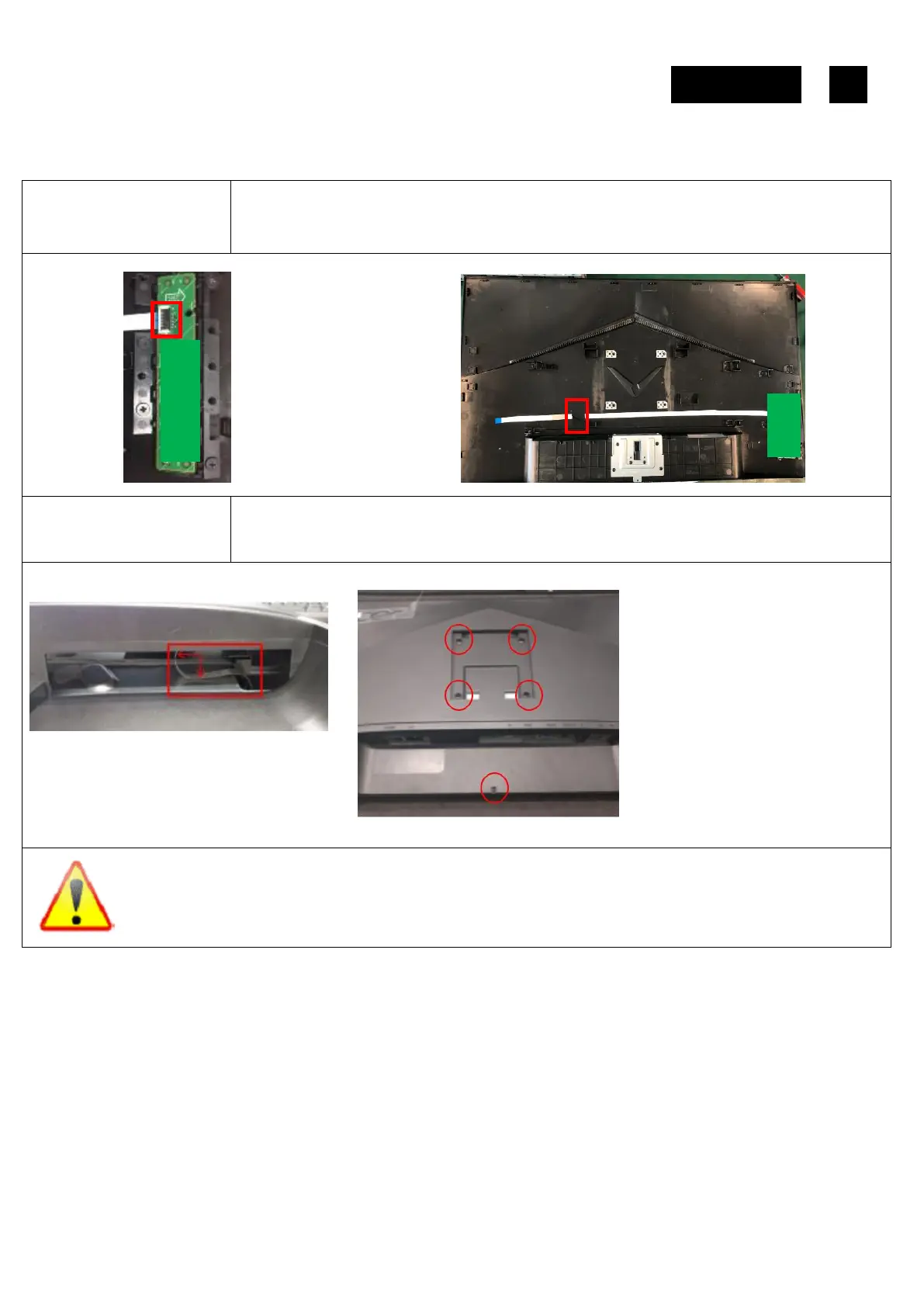

Assemble CTRL BD
Assemble the FFC CTRL to the CTRL BD and assemble the CTRL BD to the RC as picture 1.
Stick a piece of adhesive tape to fasten the FFC CTRL on the RC as picture 2.
PICTURE 1 PICTURE 2
S7
Assemble the RC,
stand and base
Insert the FFC CTRL to the IF BD and assemble the RC to the MF as picture 1.
Lock 1 screw to the RC, and lock 4 screws to assemble the Stand and Base to Monitor as
picture 2.
PICTURE 1 PICTURE 2
NOTE: Circuit boards >10 cm² has been highlighted with the yellow rectangle as above image
shows. Please detach the Circuit boards and follow local regulations for disposal.
CTRL BD
CTRL BD
