Acer XB253Q

ACER XB253Q
9
S6

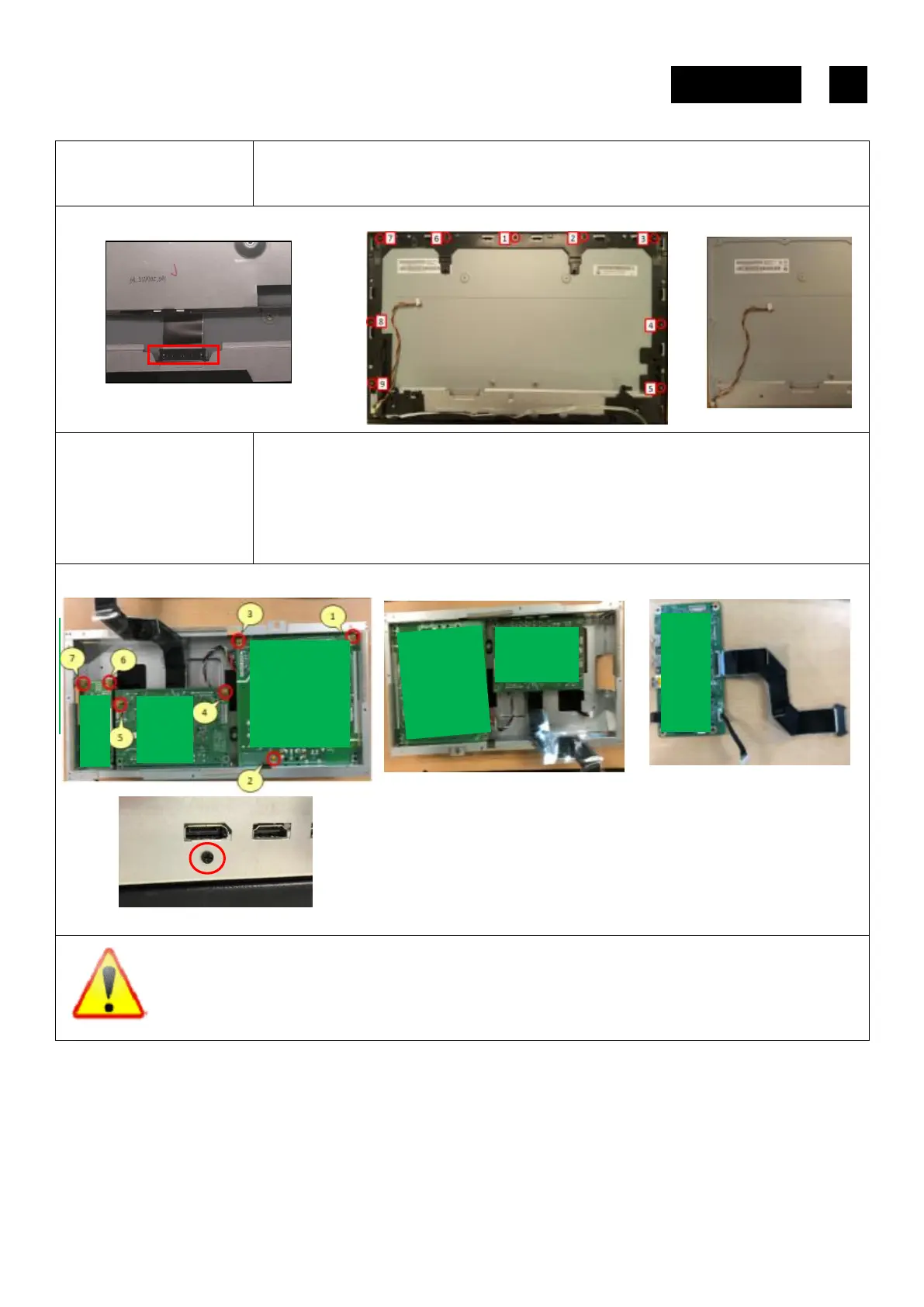

Disassemble SHD and
MF.
Extract 1 FFC wires from the panel as picture 1.
Unlock 9 screws from the MF and disassemble the MF from the Pane as picture 2.
Extract the lamp wire from the panel as picture 2.
PICTURE 1 PICTURE 2 PICTURE 3
S7
Disassemble I/F BD
and P/BD.
Tear off Mylar from the SHD.
Unlock 7 PCBA screws from the PCBA BD and 1 DP screw as picture 1
Disassemble the USB BD from the SHD and extract the USB BD wire from USB BD as
the picture 2.
Disassemble the I/F BD from the SHD and extract the P/BD wire and FFC LVDSfrom I/F
BD as the picture 3
Disassemble the P/BD from the SHD.
PICTURE 1 PICTURE 2 PICTURE 3
NOTE: Circuit boards >10 cm² has been highlighted with the yellow rectangle as above image shows.
Please detach the Circuit boards and follow local regulations for disposal.
I/F BD
P/BD
I/F
BD
I/F BD
I/F
BD
P/BD
USB BD
P/BD
