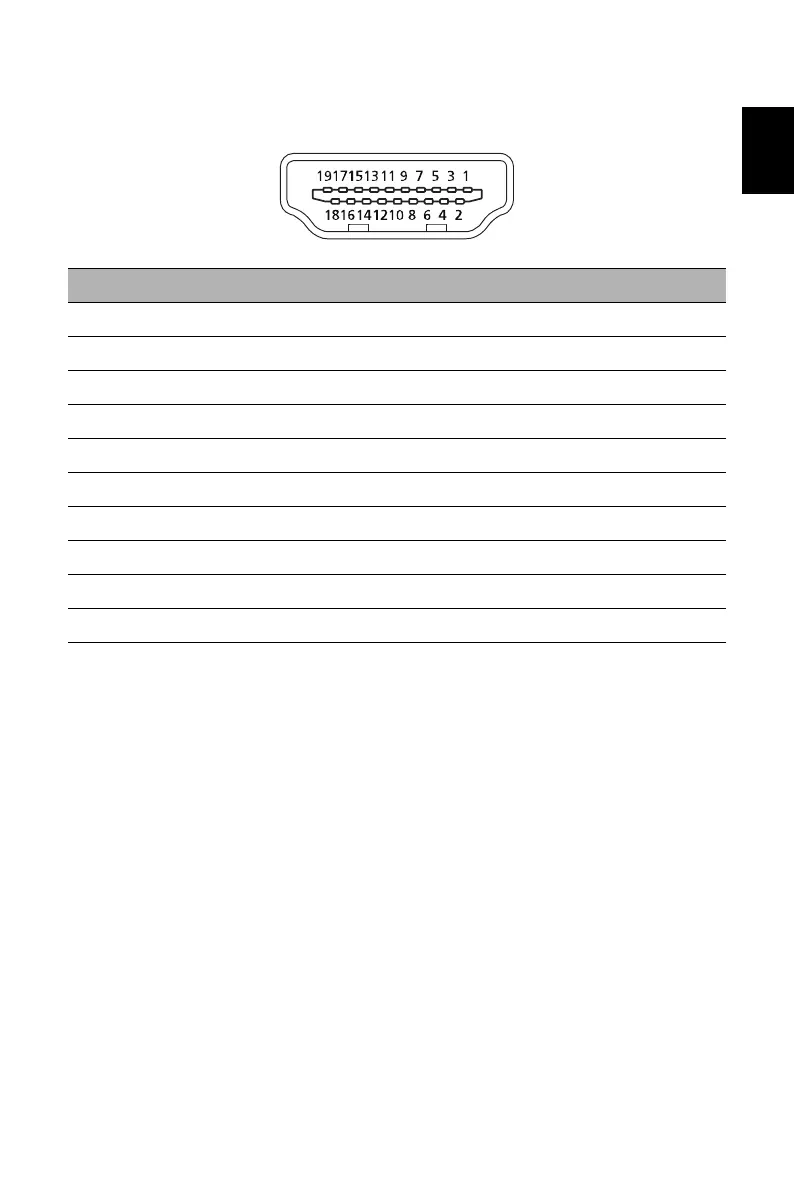

19-Pin Color Display Signal Cable
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 DATA2- 2 GND
3 DATA2+ 4 DATA1-
5 GND 6 DATA1+
7 DATA0- 8 GND
9 DATA0+ 10 DCLK-
11 GND 12 DCLK+
13 NC 14 NC
15 HDMI_SCL 16 HDMI_SDA
17 HDMI_DET 18 HDMI15V
19 HDMI_HPD
