OPERATION OF TRACK WIDTH
CHANGE AND DOZER
CAUTION
To avoid personal injury:
Do not operate in narrow track
width (1120mm)], it makes risk
of the excavator tipping over,
operate always in standard track
width [(1030mm)], except to
pass through narrow space on a
even ground.
For changing the track width
or using the dozer, set
the track width change/
dozer select lever fully.
If not, the excavator may
unintentionally move.

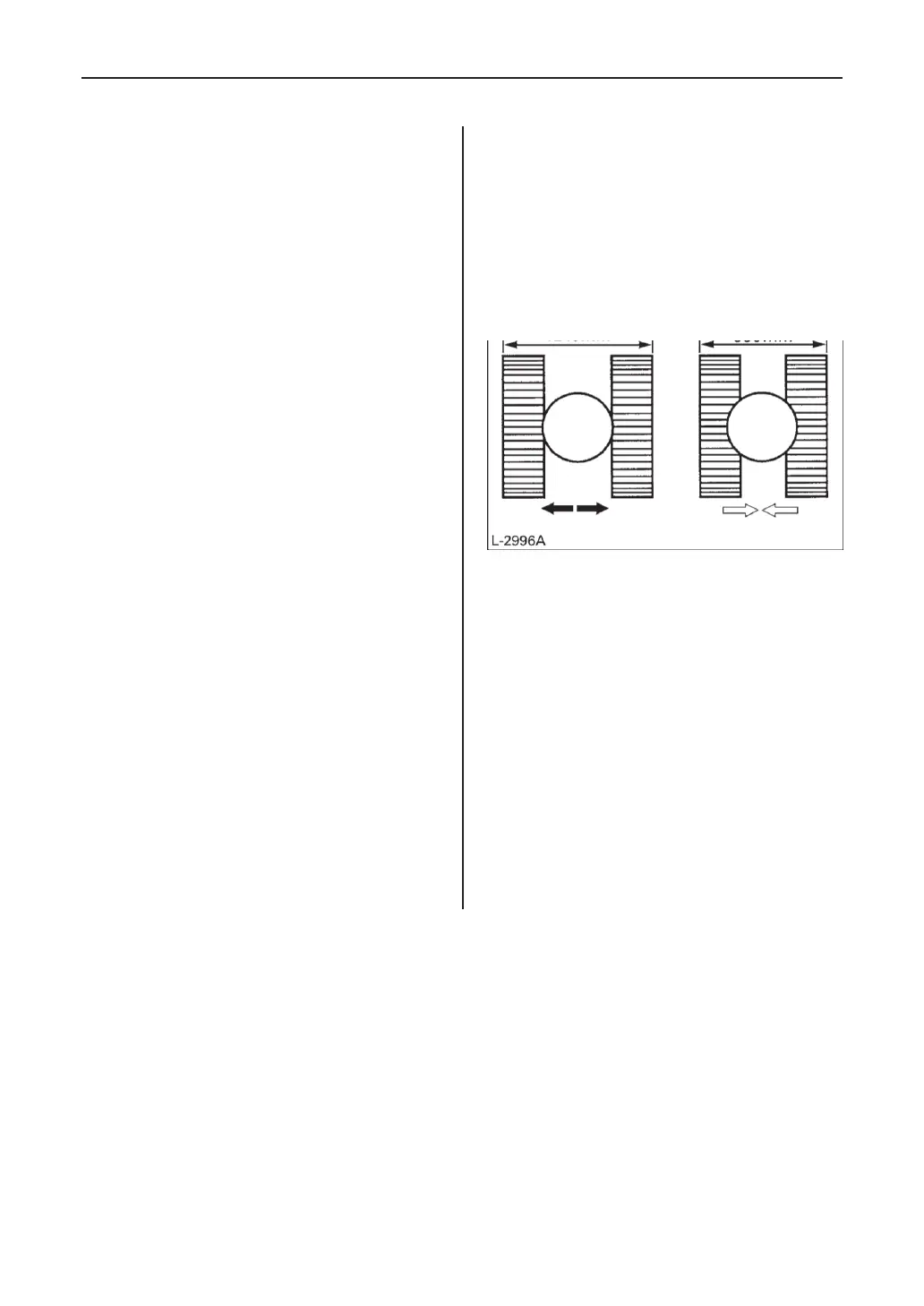

Operation of the Track Width
1.
Set the track width change/dozer select
button to the “Track width change”
position
2.
Push the control lever forward.
... The track width increases (830 mm to
1030 mm)].
Pull the control lever backward.
... The track width reduces (1030 mm to
830 mm)].
(1) Control lever (A) “Increase”
(B)“Reduce”
3.
After track width change, be sure to set
the track width change/dozer select lever
to the “Dozer” position (A).
To Next Page
