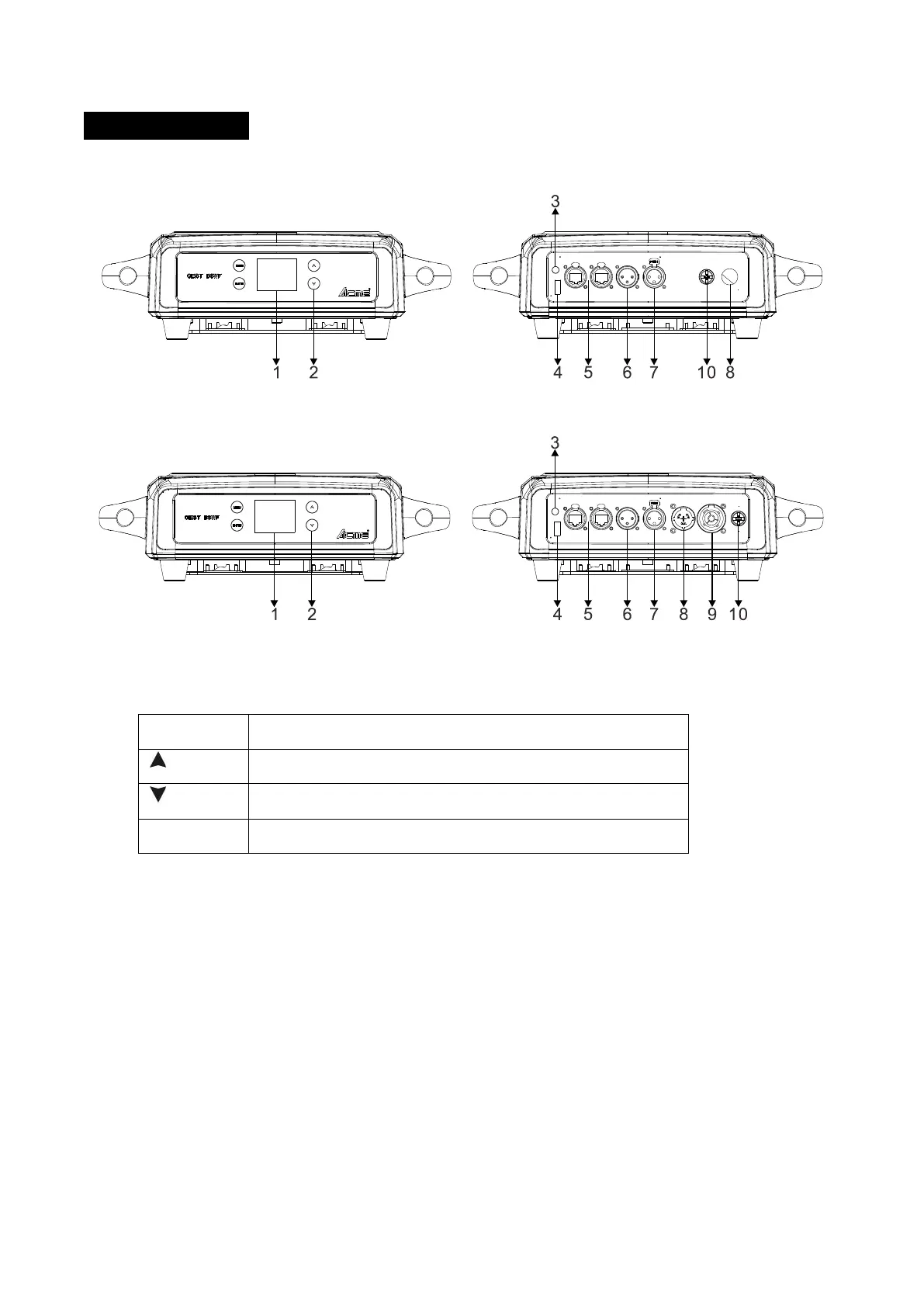

3. Control Panel
Wire Version:
POWERCON Version:
1. Display: To show the various menus and the selected function
2. Button:
To enter into move backward or leave the menu
To go backward to move up in the menu
To go forward to move down in the menu
To perform the desired functions
3. BATTERY DISPLAY
4. FIRMWARE UPGRADE: Used to upgrade the fixture’s firmware
5. ETHERNET: Transfers fixture’s information to a main controller
6. DMX IN:
For DMX512 link, use 3-pin XLR cable to link the unit and DMX controller (5-pin XLR is optional)
7. DMX OUT:
For DMX512 link, use 3-pin XLR cable to link the next units (5-pin XLR is optional)
8. POWER IN: To connect to supply power
9. POWER OUT(POWERCON Version): To connect to the next fixture
10. FUSE(T 10A): Protects the unit from over-voltage or short circuit
6C
