5

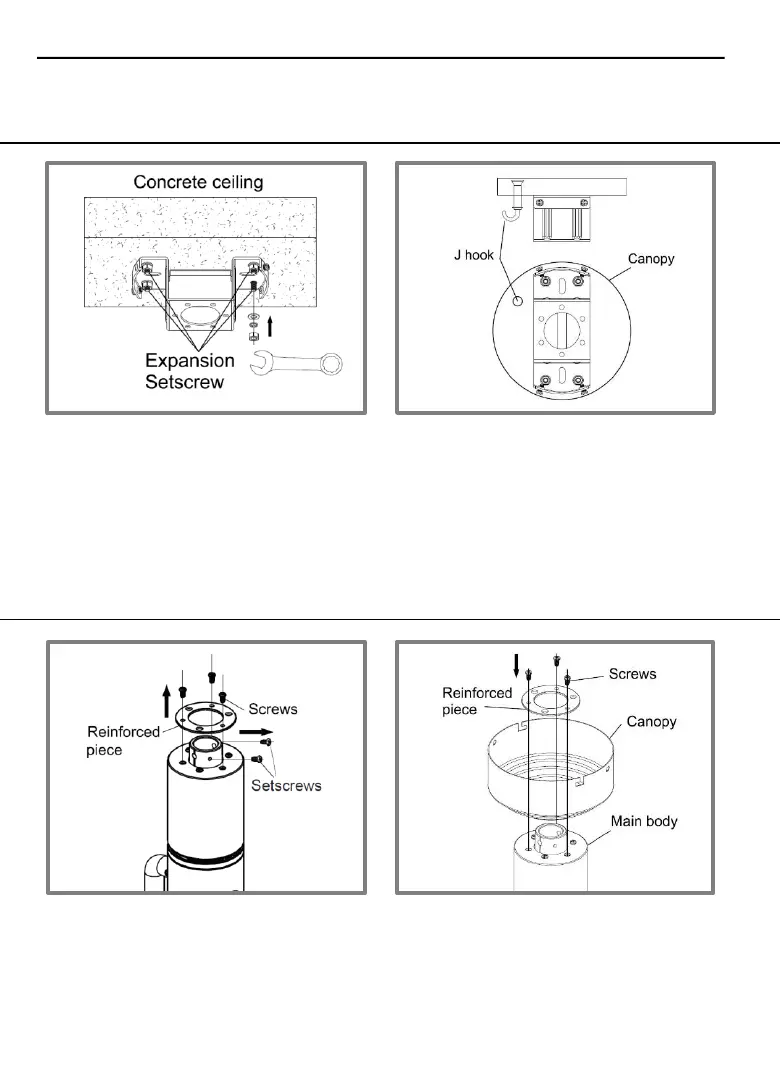

METHOD OF INSTALLATION – HUGGER / FLUSH MOUNT
1) To use Four Expansion Setscrew to install the hanger bracket firmly (fig 1).
2) Install the ‘J’ hook onto the concrete ceiling and fasten firmly. Note the
place of ‘J’ hook as (fig 2).
fig 3
fig 1
1) Remove the two setscrews, three screws and reinforced piece as (fig 3).
2) Install the canopy to the main body with the three screws and reinforced
piece as (fig 4).
3) Keep the two setscrews which will not be used.
INSTALLATION OF CANOPY:
fig 4
fig 2
INSTALLATION OF HANGER BRACKET:
