7

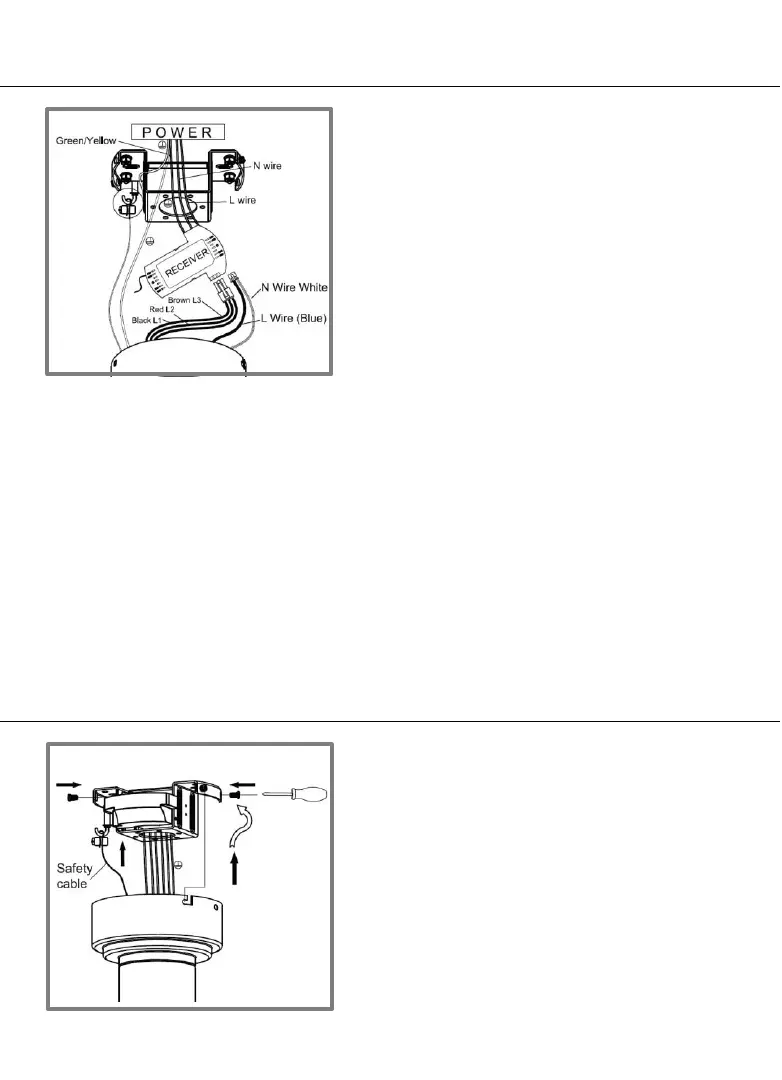

WIRING OF FAN:
fig 7
fig 6
INSTALLATION OF FAN:
1) Total three groups of wires from the
top of the main body:
• White, Blue wires with small
connector - for Synchronous Motor
• Black(L1), Red (L2), Brown (L3)
wires with big connector - for fan
• Green/Yellow - ground wire
2) Plug the connector from the main body into the remote control receiver:
big connector to big socket & small connector to small socket.
3) Connect remote control receiver wires to AC wires: White to Neutral,
Black to Live, Green/Yellow to Ground.
4) Earth wire is longer than safety cord by 60mm and more. When the
failure of the suspension system occurs, the current carrying conductor
taut before the earthling conductor and the body of the fan assembly is
still effectively earthed.
1) Unscrew the two screws from the
hanger bracket out by ½ (fig 7).
2) Aligned and insert the canopy ‘L’
shape groove to the hanger bracket
screws, twist until it held tight.
3) Fix back the two screws which were
removed earlier during step ‘PRE-FIX
THE FAN’ to the hanger bracket hole
and tighten all the four screws firmly
(fig 7).
To Next Page
