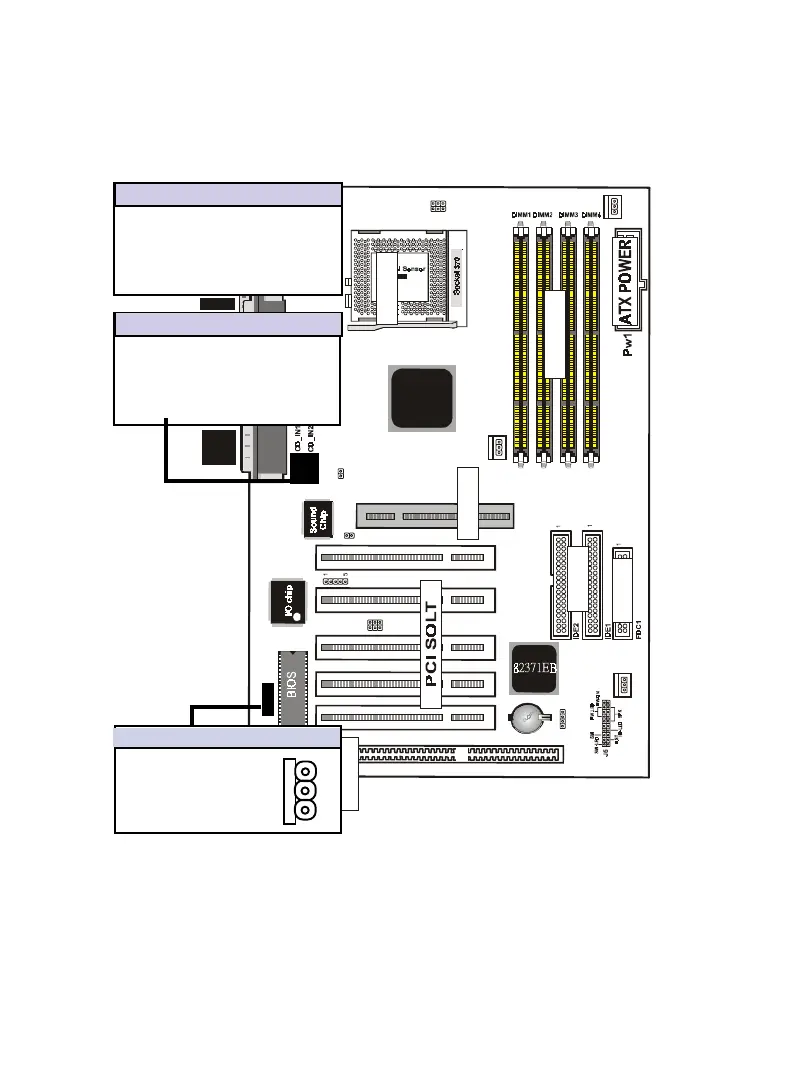

Pin Description
1 5VSB
2 GND
3 SENSOR
P3
P1
Wake-On-LAN Connector
12. CD Audio Connector- CD_IN1/CD_IN2
The 4-pin connectors enable the system to receive the audio
output from the CD-ROM.
CD_IN1 Description
1 CD-R
2 GND
3 CD-L
4 GND
CD_IN2 Description
1 CD-R
2 GND
3 GND
4 CD-L
13. Wake Up On LAN : J3
This connector connects LAN cards and a Wake On LAN output.
When the system is in soft-off mode LAN activity will power
on the system.
