ACPro AUHD18ND3F1O - Disassembly and Assembly Procedure of Main Parts; Outdoor Unit

ƵƸ
18K
ƹ.1 Outdoor Unit
ƹ. Disassembly and Assembly Procedure of Main
Parts
Disassembly and Assembly of external casing
Remark:

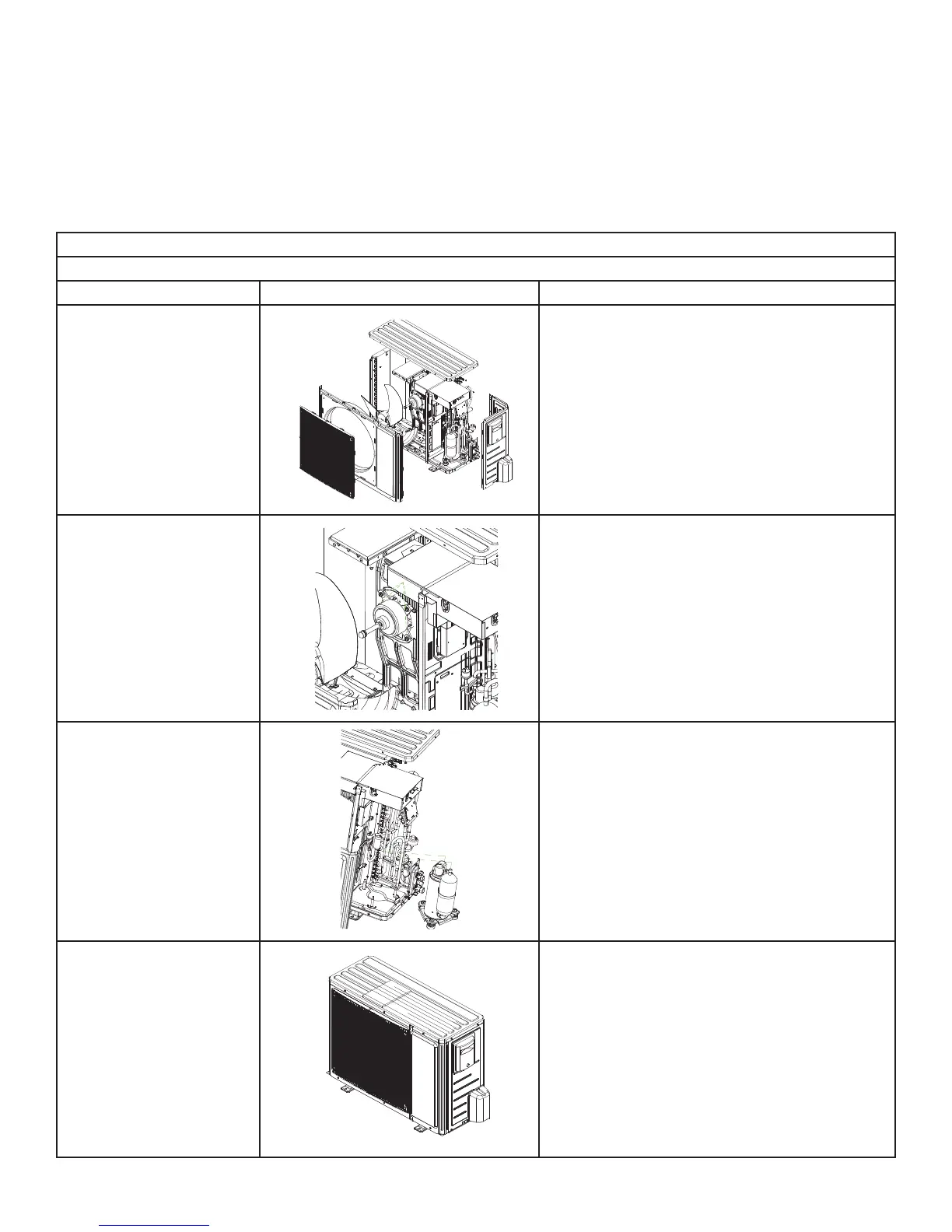

Step Illustration Handling Instruction
1. Remove external casing
1. Remove the top cover and handle;
2. Remove the grille, outer case and right side
plate.
2. Remove motor
1. Remove the blade nut and then remove the
blade;
2. Remove the motor from motor support.
3. Remove compressor
1. Discharge the refrigerant inside the pipeline and
recycle the refrigerant during discharging;
2. Unsolder the 4-way valve assy from
compressor;
3. Remove the nut fixing compressor;
4. Take away the compressor from chassis.
4. Assemble unit
Assemble the unit in the reverse procedures of
disassembly.
