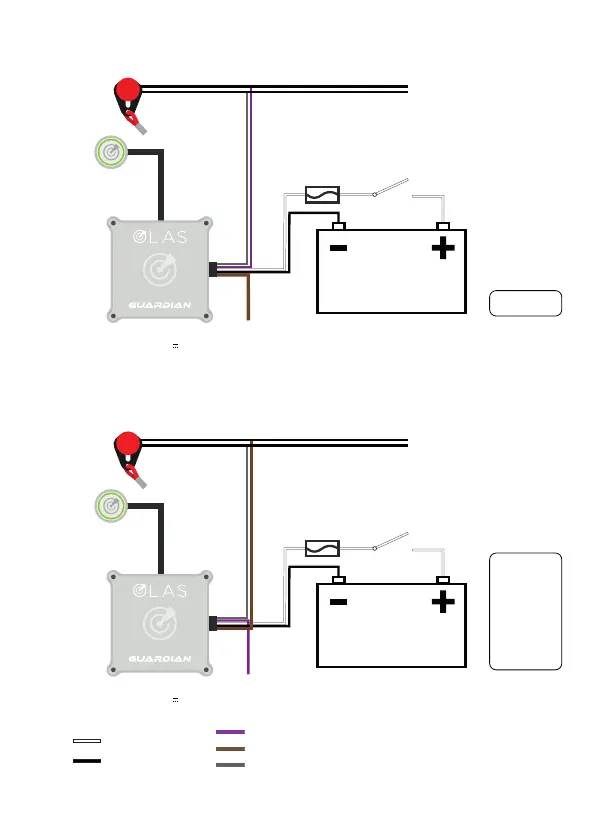

Battery
10-32Vdc
Signal Wires
Existing
Kill Switch
Control
Switch
*19mm hole required
Input:
10-32Vdc 13~17mA
1-3A Fuse
CMN
CMN CS
Power Ground
OS
CS
Volvo Penta
CLOSE TO STOP
Battery
10-32Vdc
Signal Wires
Existing
Kill Switch
Control
Switch
*19mm hole required
Input:
10-32Vdc 13~17mA
1-3A Fuse
CMN
CMN OS
Power Ground
CS
OS
Yamaha
Suzuki
Evinrude
Tohatsu
Honda
Mercury
OPEN TO STOP
*22mm hole required
*22mm hole required
White Power
Black Ground
Purple Open to stop (OS)
Brown Close to stop (CS)
Grey Common (CMN)
