Acrel ADL3000-E - Display Menu

8

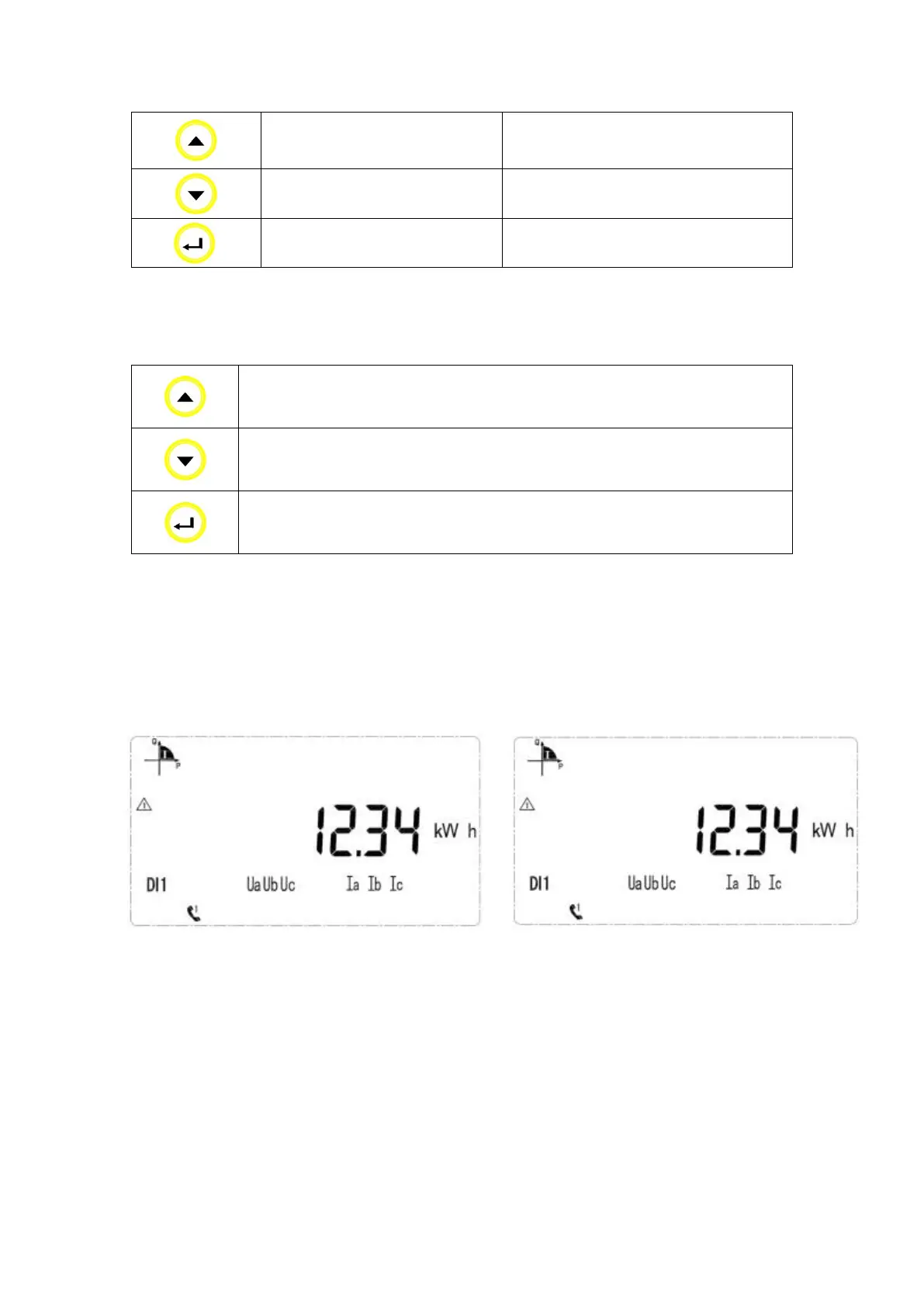

Voltage and current, up
Check the voltage and current
Leftward and change flash in
programming menu
Power, down
Check the power
Rightward and change the value on flash
Energy, enter
Check the energy
Enter in programming menu
8.2 Display menu
The meter will show the forward active energy after powering. The customers can change the
information showing by pressing the keys. The menu description is listed as below:
Voltage on A, B, C phase, Current on A, B, C phase, Frequency, Date, Time,
Address, Version, Test on display
Total active/reactive/apparent power and on A, B, C phase, Total power factor and
on A, B, C phase, Forward/reversing active/reactive maximum demand
Total forward/reserving active/reactive energy, forward/reserving active/reactive
spike/peak/flat/valley energy, forward active energy on A, B, C phase.
Note:
1 All the display menus above are in the model of ADL3000-EF three phases four lines with
multi-tariff rate function and can be changed by the keys.
2 There will not be power or power factor on each phase and will only show total power and
power factor (Active, reactive, apparent) under the three phase three lines.
3 There will not be date, time, maximum demand and energy by time without the function of
multi-tariff rate.
Current forward active energy 12.34kWh
Current reversing active energy 12.34kWh
