Acrel ADL3000-E - General; Type Description; Function Description; Measurement of kWh

1
1 General
ADL3000-E is a smart meter designed for power supply system, industrial and mining
enterprises and utilities to calculate the electricity consumption and manage the electric demand. It
features the high precision, small size and simple installation. It integrates the measurement of all
electrical parameters with the comprehensive electricity metering and management provides
various data on previous 12 months, checks the 31st harmonic content and the total harmonic
content, realizes the remote communication and the remote control with switching input and relay
output and boasts the alarm output. It is fitted with RS485 communication port and adapted to
MODBUS-RTU. ADL3000-E can be used in all kinds of control systems, SCADA systems and
energy management systems. All meters meet the related technical requirements of electricity
power meter in the IEC62053-21、IEC62053-22 standards.

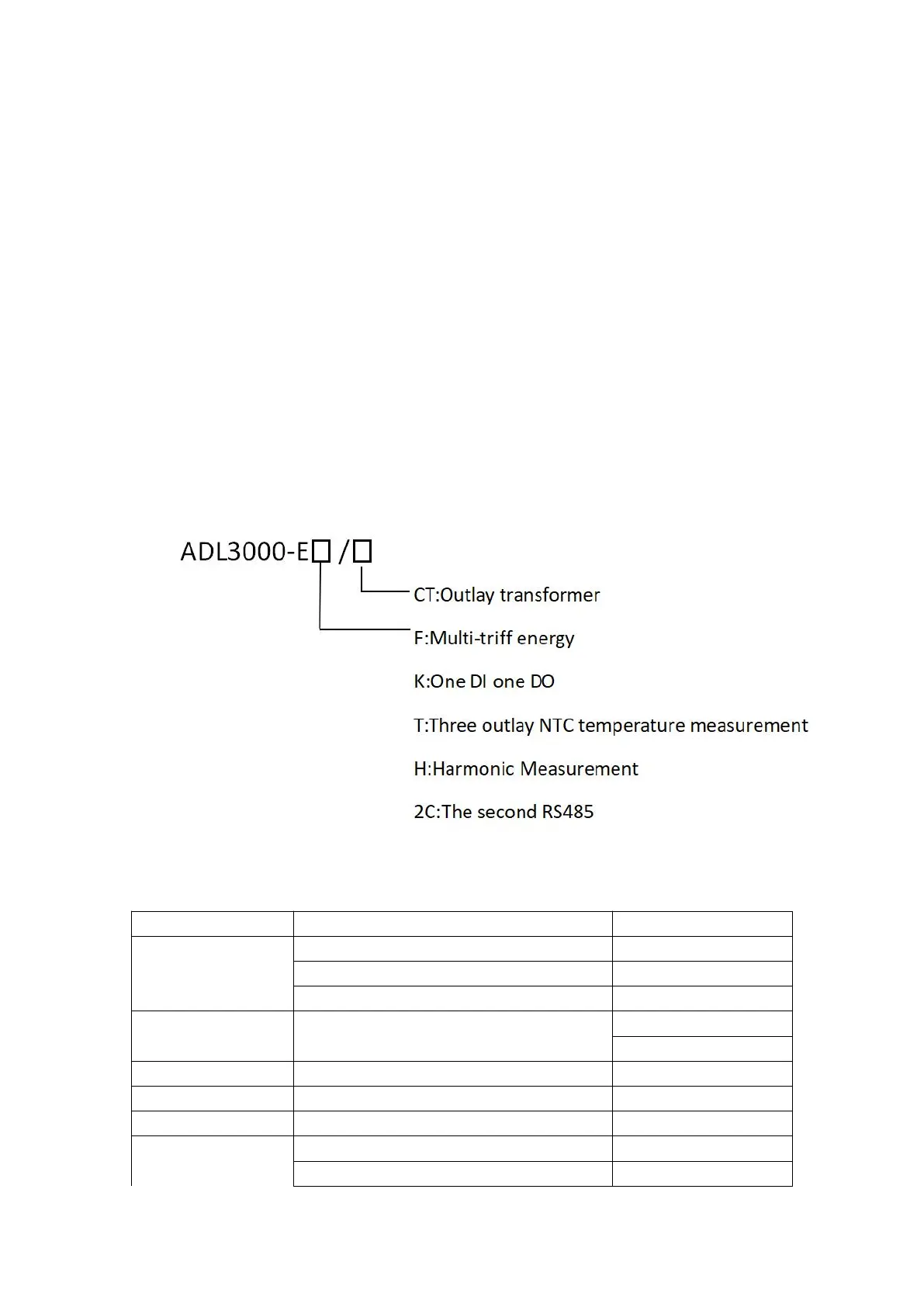

2 Type description
3 Function description
Function
Function description
Function provide
Measurement of kWh
Active kWh (positive and negative)
■
Reactive kWh (positive and negative)
■
A, B, C phase positive active kWh
■
Measurement of
electrical parameters
U、IP、Q、S、PF、F
■
■
Measurement of
2~31
ST
Voltage and current harmonic
□Note 1
LCD Display
8 bits section LCD display, background light
■
Key programming
4 keys to communication and set parameters
■
Pulse output
Active pulse output
■
Reactive pulse output
□Note 2
