Width of pulse
80±20ms
Pulse constant
6400imp/kWh,400imp/kWh(Correspond with the basic current)
Interface and communication
RS485：Modbus RTU
Range of communication
address
Modbus RTU:1~ 247；
Baud rate
1200bps~19200bps
Relative temperature
-25℃~+55℃
Relative humidity
≤95℅(No condensation)

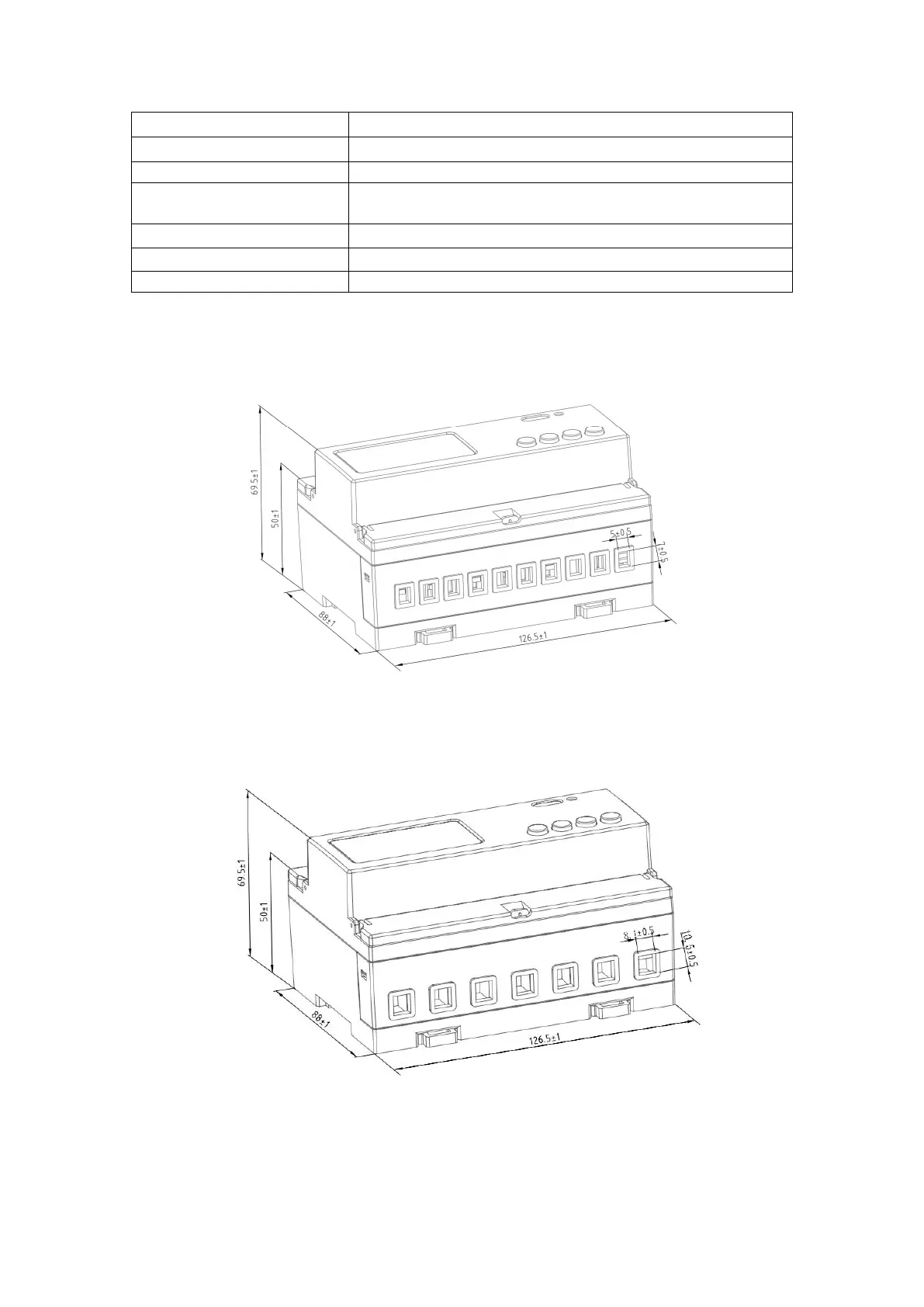

5 Dimension drawings
Fig1 connect via CT
8
Fig2 direct connect
Note：The torque of direct connect should not be greater than 4.0N·m，and the torque of
connect
via CT should not be greater than 2.0N
·m。
