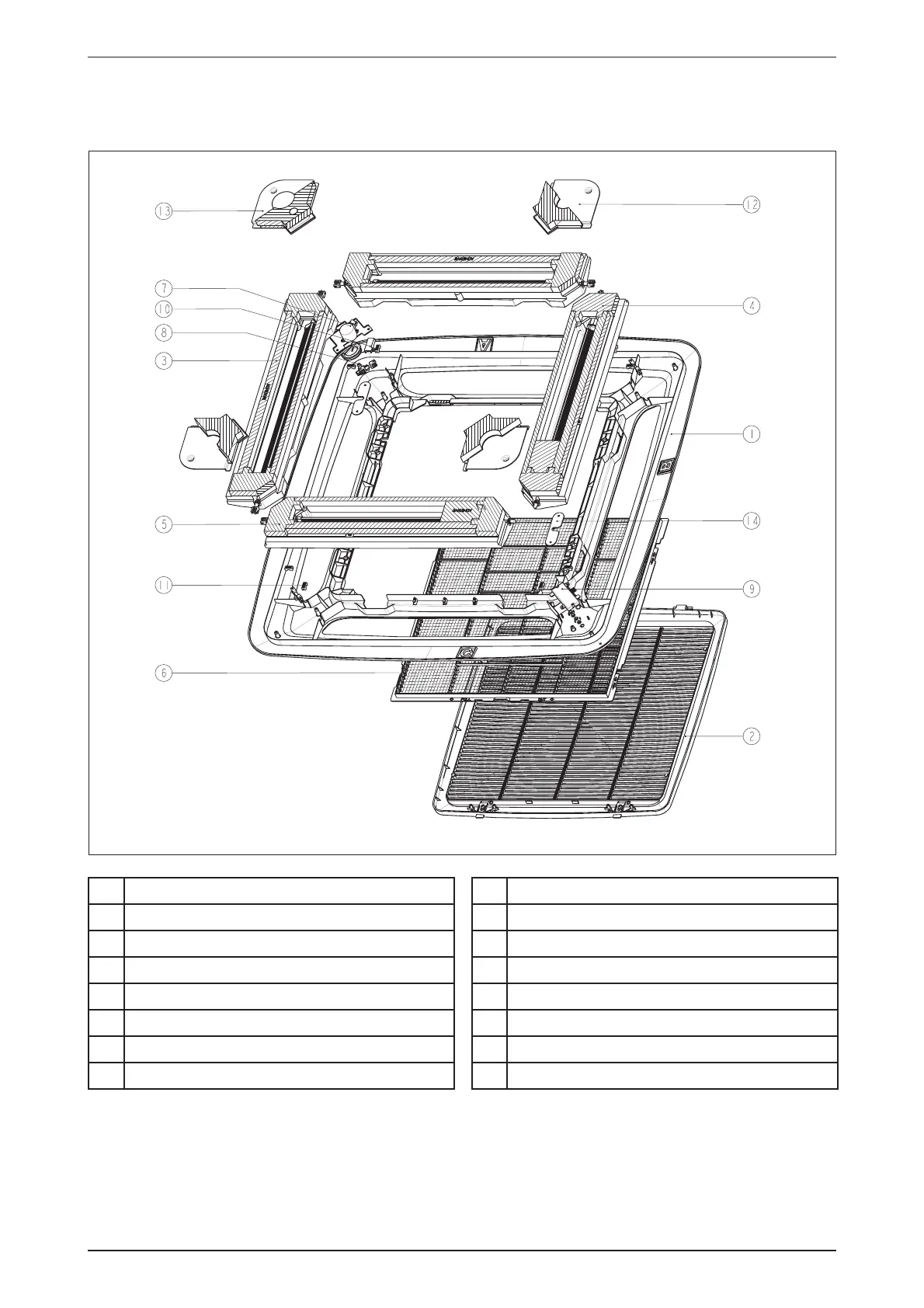

Exploded View and Part List A5MSY-2010
Note: All exploded view and part list are subjected to change by the manufacturer without prior notice
Indoor Unit
Model: PLCKY-ER
No
Description
1 Front, Frame
2 Assy., Intake Grille
3 Assy., Air Discharge Main
4 Assy., Air Discharge Main Right
5 Assy., Air Discharge Main Left
6 Air Filter, CK-A/AR
7 Assy., Air Swing Motor
No
Description
8 Crank Connector
9 Assy., LED
10 Wire, Guide
11 Cover, Cross Connector
12 Assy., Cover Corner A
13 Assy., Cover Corner B
14 Mounting Plate
To Next Page
