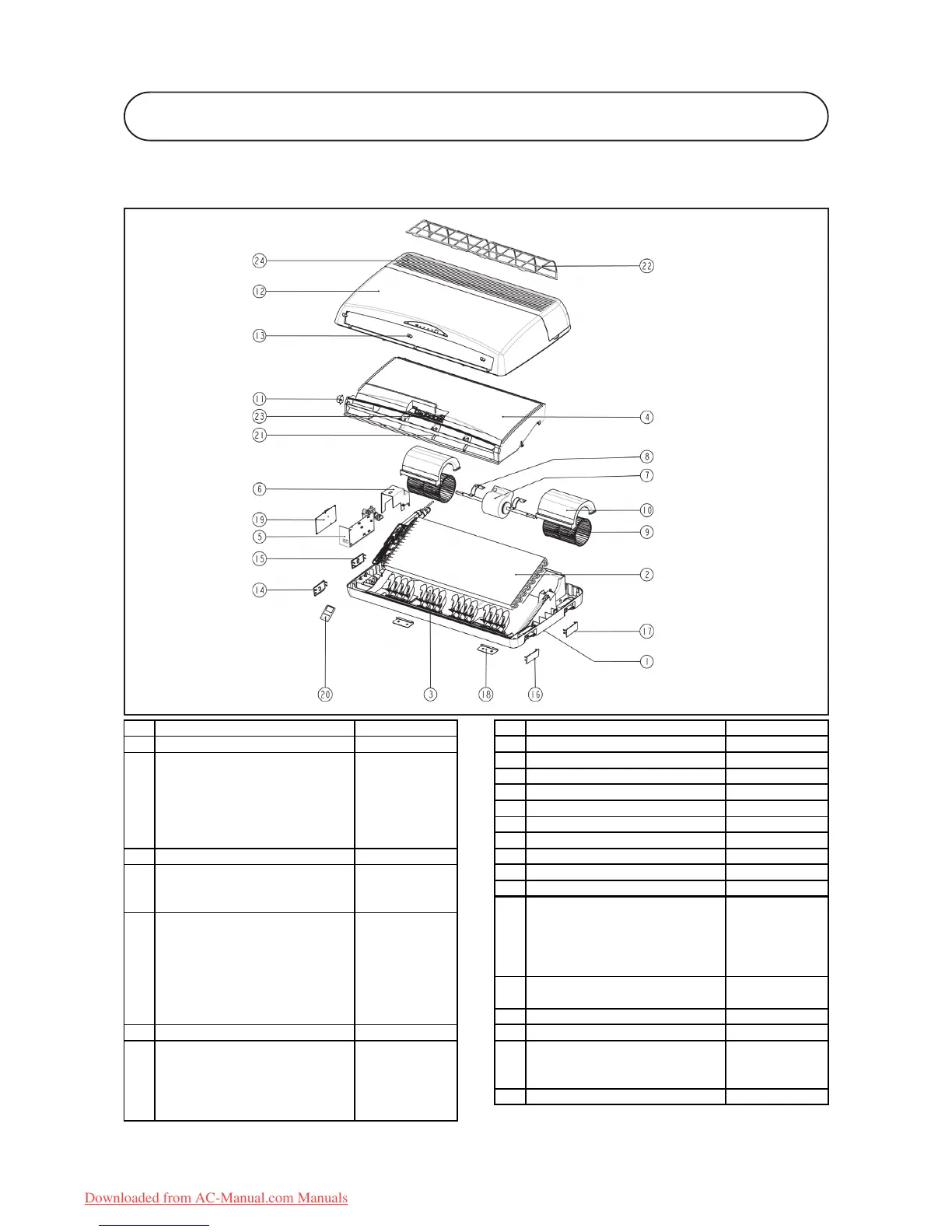

12. EXPLODED VIEW & PARTS LIST
115
MODEL: ACM / A5CM 15/20/25/28 E/ER
1) ALL SPECIFICATIONS ARE SUBJECT TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE
No Description Part No No Description Part No
1 Assy., Top Panel R50124074907 8 Motor, Bracket R01014071324
2 Assy., Coil 9 Blower Wheel R03024004754
ACM / A5CM 15E/ER R50024085233 10 Blower Housing R12014071385
ACM 20E/ER, A5CM 25E/ER R50024071828 11 Motor, Air Swing R03039023303
A5CM 20E/ER R50024080385 12 Assy., Bottom Panel R50124074909
ACM 25E/ER, ACM 28ER,A5CM 28E/ER R50024074757 13 Cover, Hanger L1 (C) R12014071354
ACM 28E R50024075729 14 Cover, Hanger L2 (D) R12014071355
3 Assy., Vane R50124074906 15 Cover, Hanger R1 (A) R12014071356
4 Assy., Drain Pan 16 Cover, Hanger R2 (B) R12014071357
ACM / A5CM 20/25/28E R50124076123 17 Mounting Bracket R01014071319
ACM / A5CM 20/25/28ER R50124080076 18 Control Module
5 Assy., Control Box ACM / A5CM 20/25/28E (IONIZER) R04089023399
ACM / A5CM 15/20/25/028E (IONIZER) R50044083484 ACM / A5CM 20/25/28E (NTP) R04089023670
ACM / A5CM 20/25/28E (NTP) R50044083700 ACM / A5CM 20/25/28ER (IONIZER) R04089023668
ACM / A5CM 15/20/25ER (IONIZER) R50044080078 ACM / A5CM 20/25/28ER (NTP) R04089023667
ACM / A5CM 20/25ER (NTP) R50044083701 19 G12 Handset (Cooling Only) R04084065327
ACM / A5CM 28ER (IONIZER) R50044080079 G12 Handset (Heatpump) R04084067315
ACM / A5CM 28ER (NTP) R50044083702 20 Louver R12014071335
6 Cover, Control Box R01014069872 21 Saranet Filter R12014071342
7 Motor 22 Assy., LED Board
ACM / A5CM 15E/ER R03034085800 ACM / A5CM 20/25/28E R50044076124
ACM / A5CM 20E/ER R03039023304 ACM / A5CM 20/25/28ER R50044080080
ACM / A5CM 25E/ER R03039023305 23 Air Intake Grille R12014071341
ACM / A5CM 28E/ER R03039023306
