117

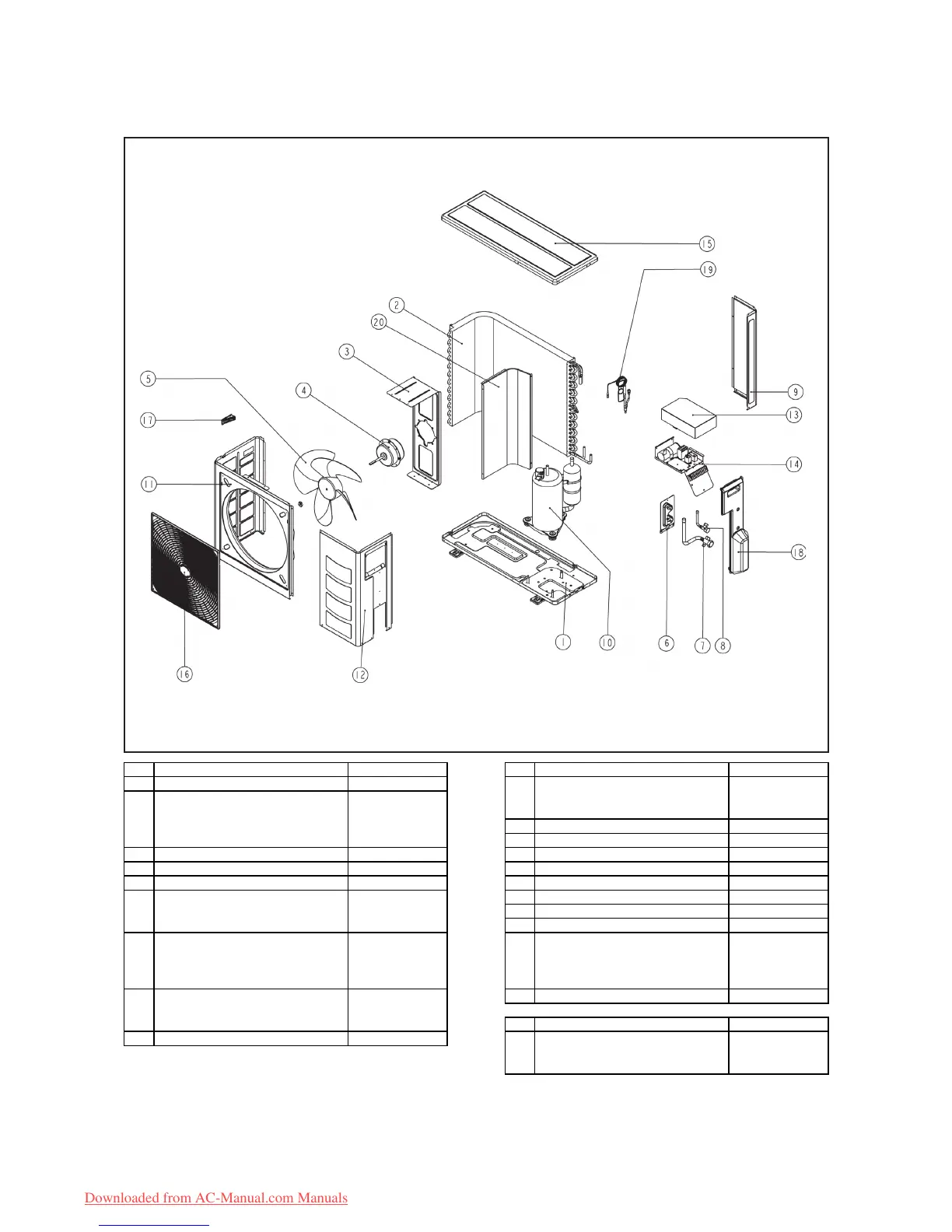

MODEL: ALC 18 / 20C, A5LC 20C
1) ALL SPECIFICATIONS ARE SUBJECT TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE
No Description Part No No Description Part No
1 Assy. Base Pan R50014078281 10 Compressor
2 Assy. Outdoor Coil ALC 18/20C A04019027266
ALC 18C R50024089940 A5LC 20C R04019020625
ALC 20C A50024084570 11 Front Panel, Left R01014070597
A5LC 20C R50024079078 12 Service Panel R01014070598
3 Motor Bracket R01014070601 13 Terminal Cover Panel R01014070838
4 Fan Motor R03039024539 14 Assy. Control Panel R50014072877
5 Fan Blade R03019023393 15 Top Panel R01014070596
6 Valve Bracket 16 Assy. Front Grille R50124072880
ALC 18/20C A50014072861 17 Plastic Handle R12014057948
A5LC 20C R50014078280 18 Assy. Valve Cover R50124072885
7 ALC 18/20C 19 Assy. Cap Tube
Assy. Flare Valve 3 Ways 5/8" R50054072863 ALC 18C R50024089926
A5LC 20C ALC 20C A50024087066
Assy. Flare Valve 3 Ways 1/2" R50059023335 A5LC 20C R50024081921
8 Assy. Flare Valve 2 Ways 1/4" 20 Partition R01014070603
ALC 18/20C R50059022156 Parts Not in Diagram
A5LC 20C R50059023334 Capacitor, Fan Motor R04029026759
9 Back Panel, Right R01014070599 Capacitor, Compressor
ALC 18/20C R04029026782
A5LC 20C R04029026779
