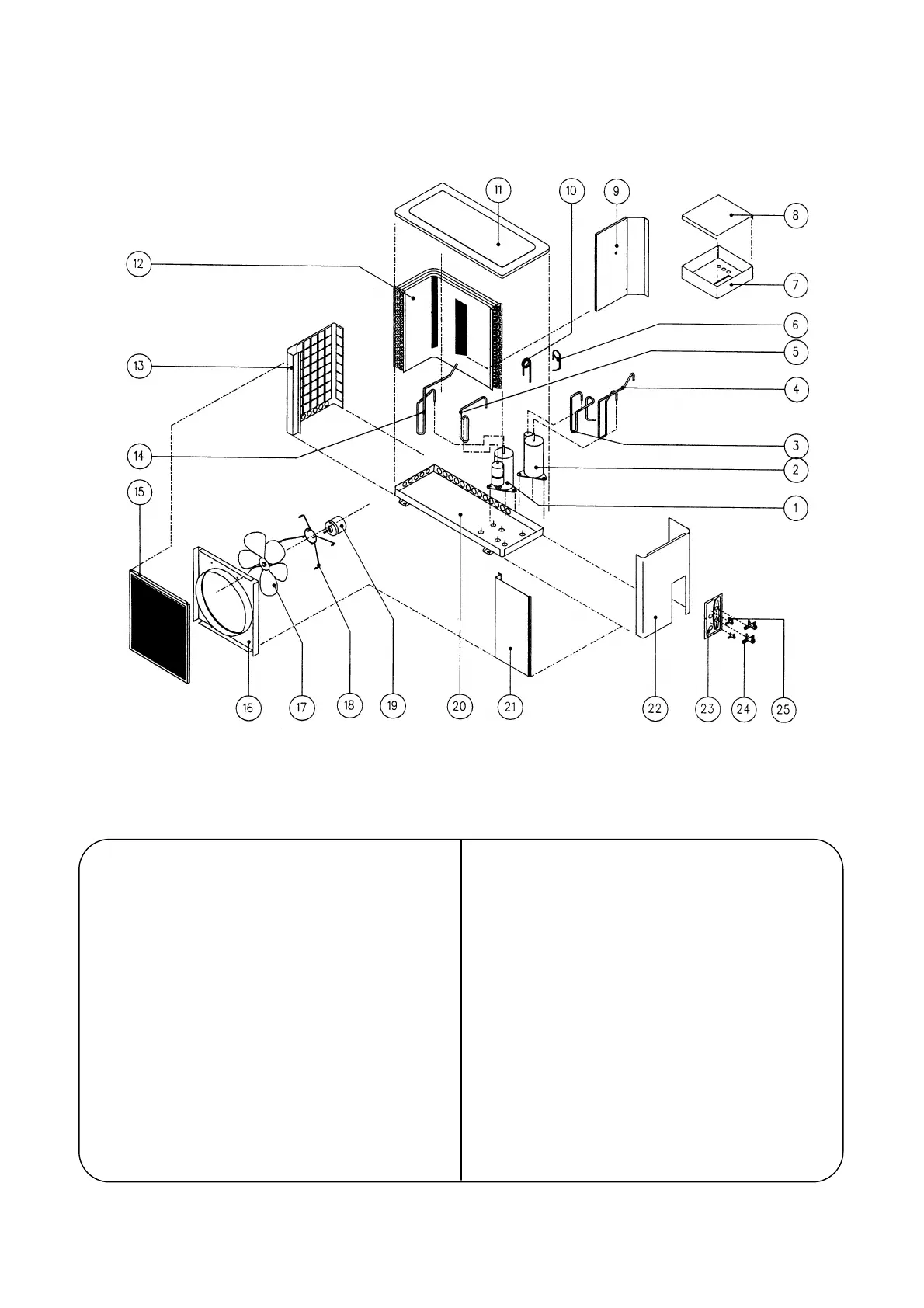

MODEL : AMSD 2020A
1. ROTARY COMPRESSOR 1 14. DISCHARGE TUBE 1
2. ROTARY COMPRESSOR 2 15. FAN GUARD
3. SUCTION TUBE 2 16. ORIFICE FOR 19” PROPELLER
4. DISCHARGE TUBE 2 17. FAN BLADE 19”
5. SUCTION TUBE 1 18. FAN MOTOR BRACKET
6. CAP. TUBE 2 ASSY 19. FAN MOTOR
7. CONTROL BOX ASSY 20. BASE PAN ASSY
8. CONTROL BOX COVER 21. FRONT PANEL
9. PARTITION 22. SIDE PANEL RIGHT
10. CAP. TUBE 1 ASSY 23. VALVE PLATE
11. TOP PANEL 24. FLARE VALVES (GAS)
12. CONDENSER COIL ASSY 25. FLARE VALVES (LIQUID)
13. SIDE PANEL LEFT
