MODEL : AMST 101010 / 101015 / 101515 / 151515 / 101020 A

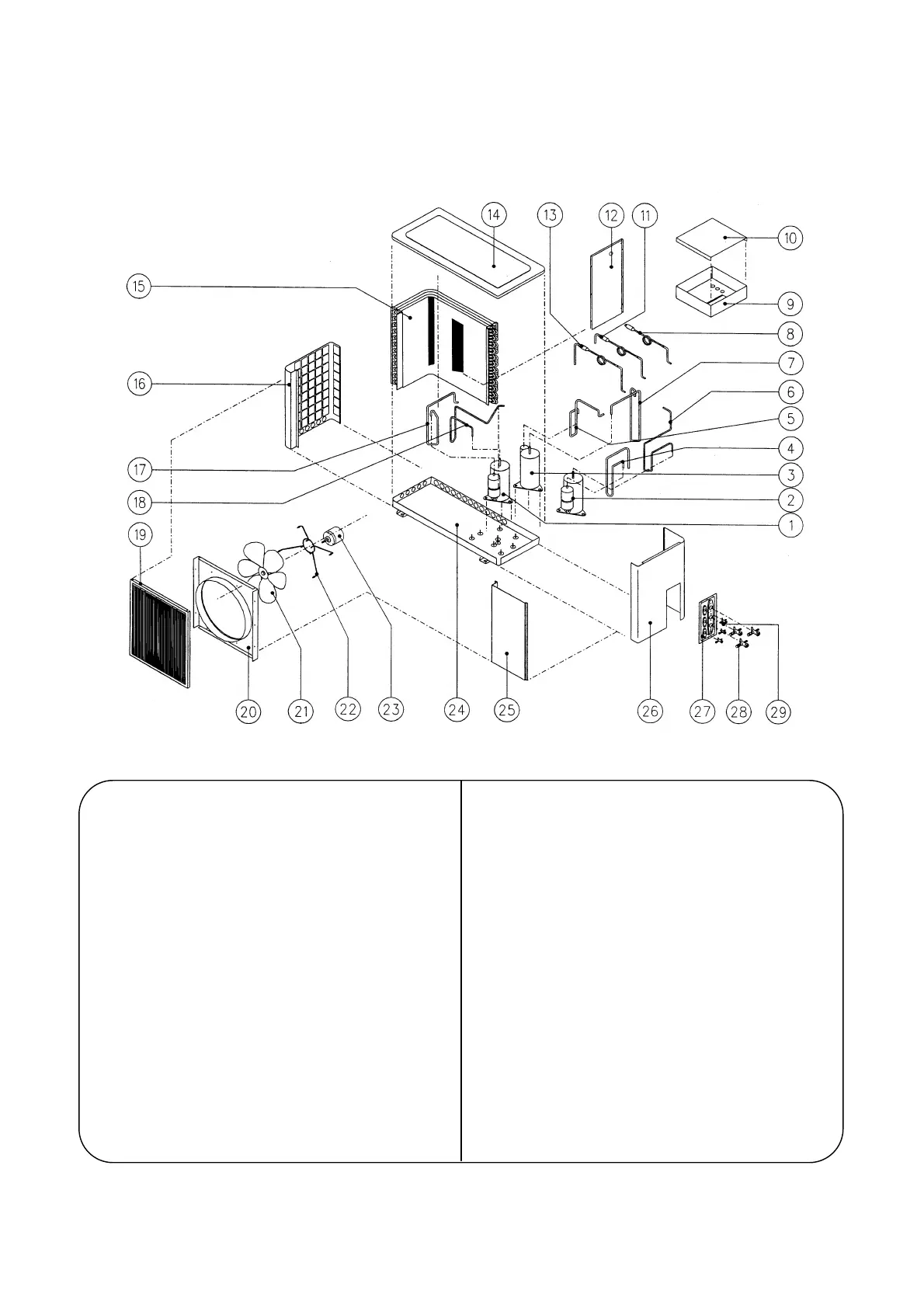

1. ROTARY COMPRESSOR 2 16. SIDE PANEL LEFT
2. ROTARY COMPRESSOR 1 17. SUCTION TUBE 2
3. ROTARY COMPRESSOR 3 18. DISCHARGE TUBE 2
4. SUCTION TUBE 1 19. FAN GUARD
5. SUCTION TUBE 3 20. ORIFICE FOR 19” PROPELLER
6. DISCHARGE TUBE 1 21. PROPELLER 19”
7. DISCHARGE TUBE 3 22. FAN MOTOR BRACKET
8. CAP. TUBE 1 ASSY 23. FAN MOTOR
9. CONTROL BOX ASSY 24. BASE PAN ASSY
10. CONTROL BOX COVER 25. FRONT PANEL
11. CAP. TUBE 2 ASSY 26. SIDE PANEL RIGHT
12. PARTITION 27. VALVE PLATE
13. CAP. TUBE 3 ASSY 28. FLARE VALVES (GAS)
14. TOP PANEL 29. FLARE VALVES (LIQUID)
15. CONDENSER COIL ASSY
A4MST 101010 / 101015 / 101515 / 151515 A
