MODEL : AMSH K77 A

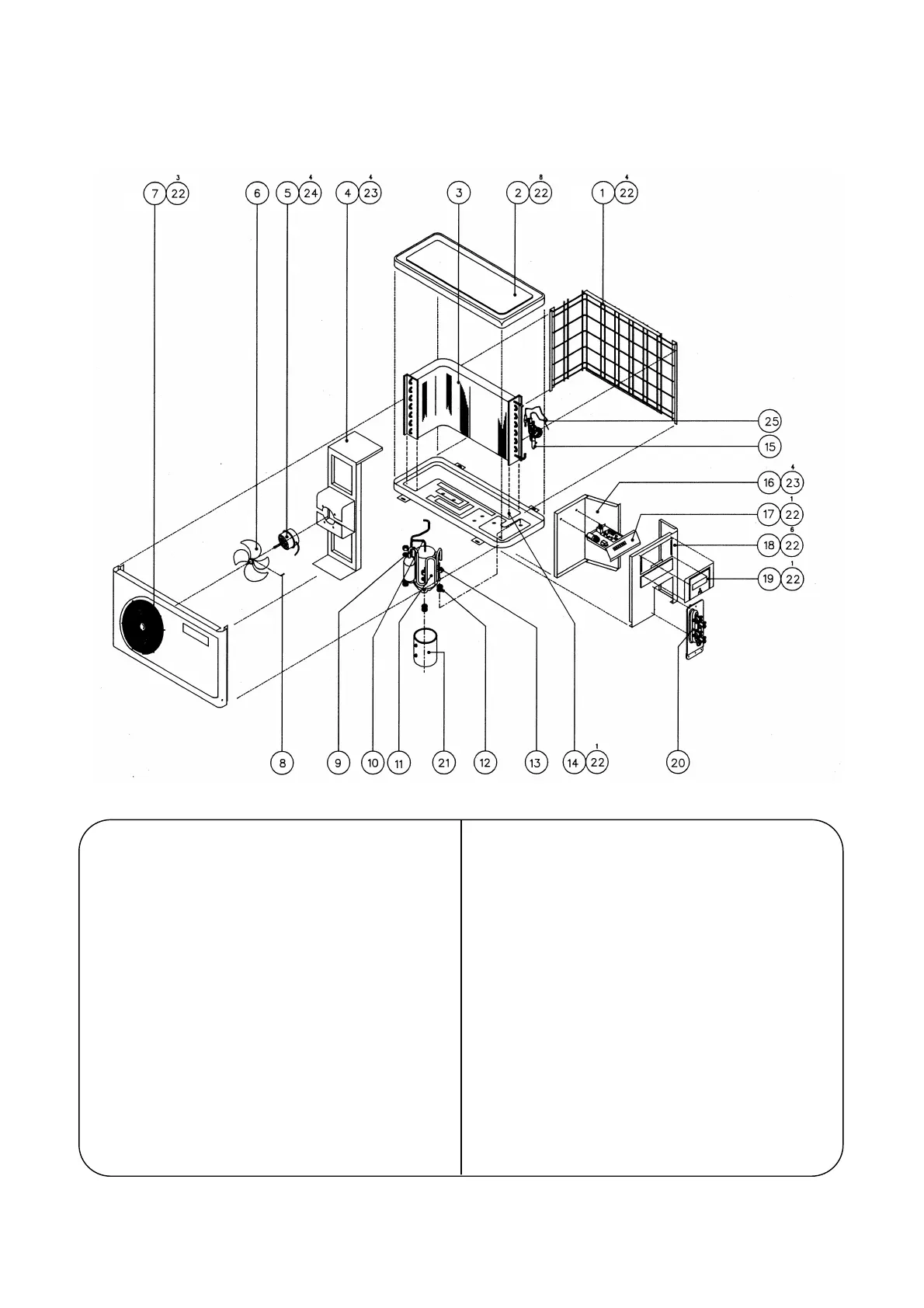

1. BACK PANEL ASSY 14. BASE PAN ASSY
2. TOP PANEL ASSY 15. CAPILLARY TUBE ASSY
3. CONDENSER COIL ASSY 16. PARTITION ASSY
4. MOTOR MOUNTING BRACKET 17. TERMINAL BOX ASSY
5. FAN MOTOR 18. SIDE PANEL ASSY
6. FAN BLADE 19. ACCESS PANEL
7. FRONT GRILLE ASSY 20. VALVE PLATE ASSY
8. FAN SET SCREW 21. COMPRESSOR JACKET
9. TUBE SUCTION A & B ASSY 22. TRUSS HEAD PHILIP SCREW
10. DISCHARGE TUBE 23. PAN HEAD TAPPING SCREW
11. ROTARY COMPRESSOR 24. TRUSS HEAD PHILIP SCREW
12. RUBBER GROMMET 25. SOLENOID COIL INS 1&2 ASSY
13. NUT WITH WASHER (M8)
