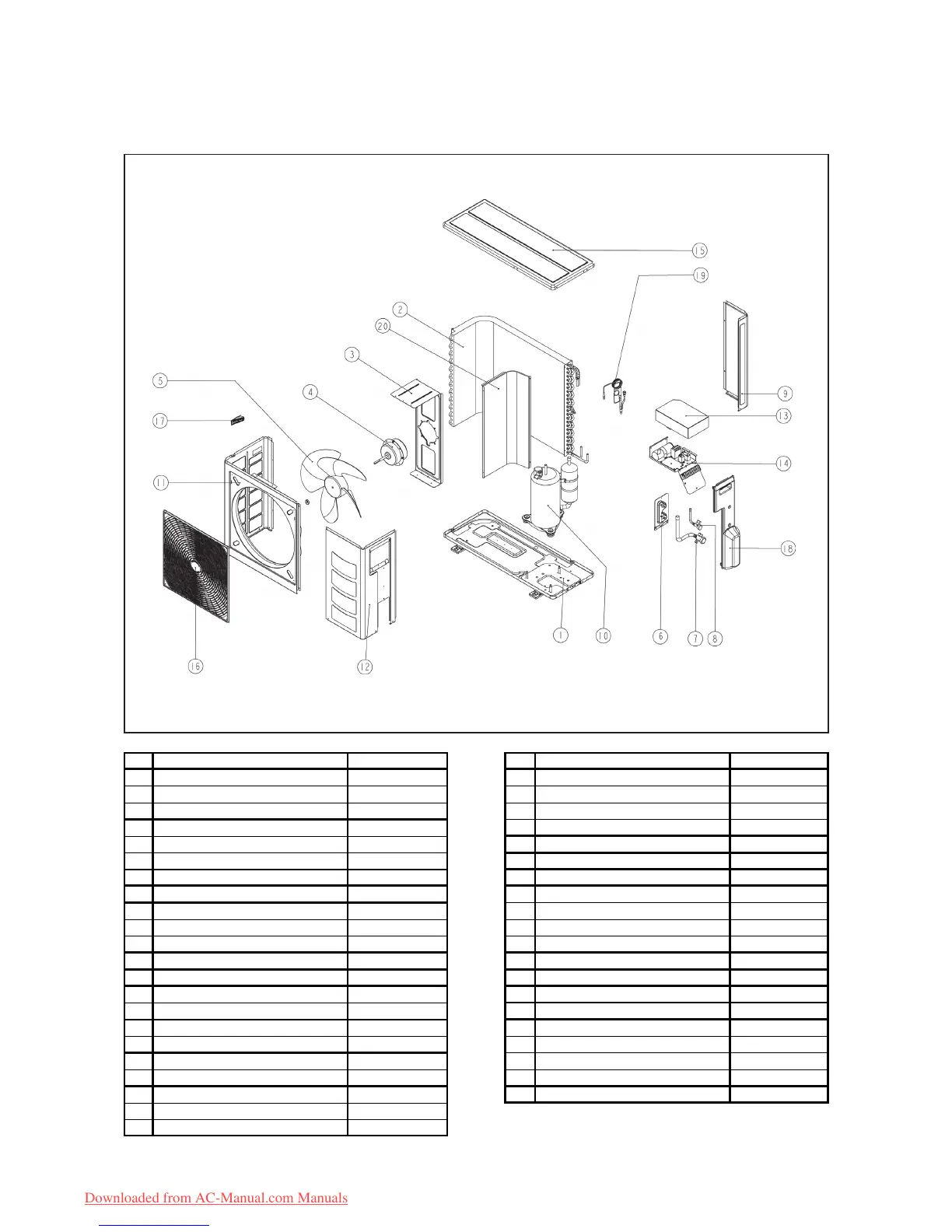

MODEL: A5LC 20C

No Descriptions Part No No Descriptions Part No

1 Assy. Base Pan 10 Compressor

ALC 18C R50014077978 ALC 18C R50049022614

A5LC/ALC 20C R50014013884 ALC 20C R04019018334

2 Assy. Outdoor Coil A5LC 20C R04019021361

ALC 18C R50024077968 11 Front Panel, Left R01014070597

ALC 20C R50024070651 12 Service Panel R01014070598

A5LC 20C R50024079078 13 Terminal Cover Panel R01014070838

3 Motor Bracket R01014070601 14 Assy. Control Panel

4 Fan Motor ALC 18C R50044077990

ALC 18C R03039024539 ALC 20C R50044073902

A5LC/ALC 20C R03039023391 A5LC 20C R50044072876

5 Fan Blade R03019023393 15 Top Panel R01014070596

6 Valve Bracket R50014072861 16 Assy. Front Grille R50124072880

7 Assy. Flare Valve 3 Ways 5/8" 17 Plastic Handle R12014057948

ALC 18C/20C R50054072863 18 Assy. Valve Cover R50124072885

Assy. Flare Valve 3 Ways 1/2" 19 Assy. Cap Tube

A5LC 20C R50059023335 ALC 18C R50024077976

8 Assy. Flare Valve 2 Ways 1/4" ALC 20C R50024077257

ALC 18C/20C R50059022156 A5LC 20C R50024079156

9 Assy. Flare Valve 2 Ways 1/4" 20 Partition R01014070603

A5LC 20C R50059023334

Back Panel, Right R01014070599
