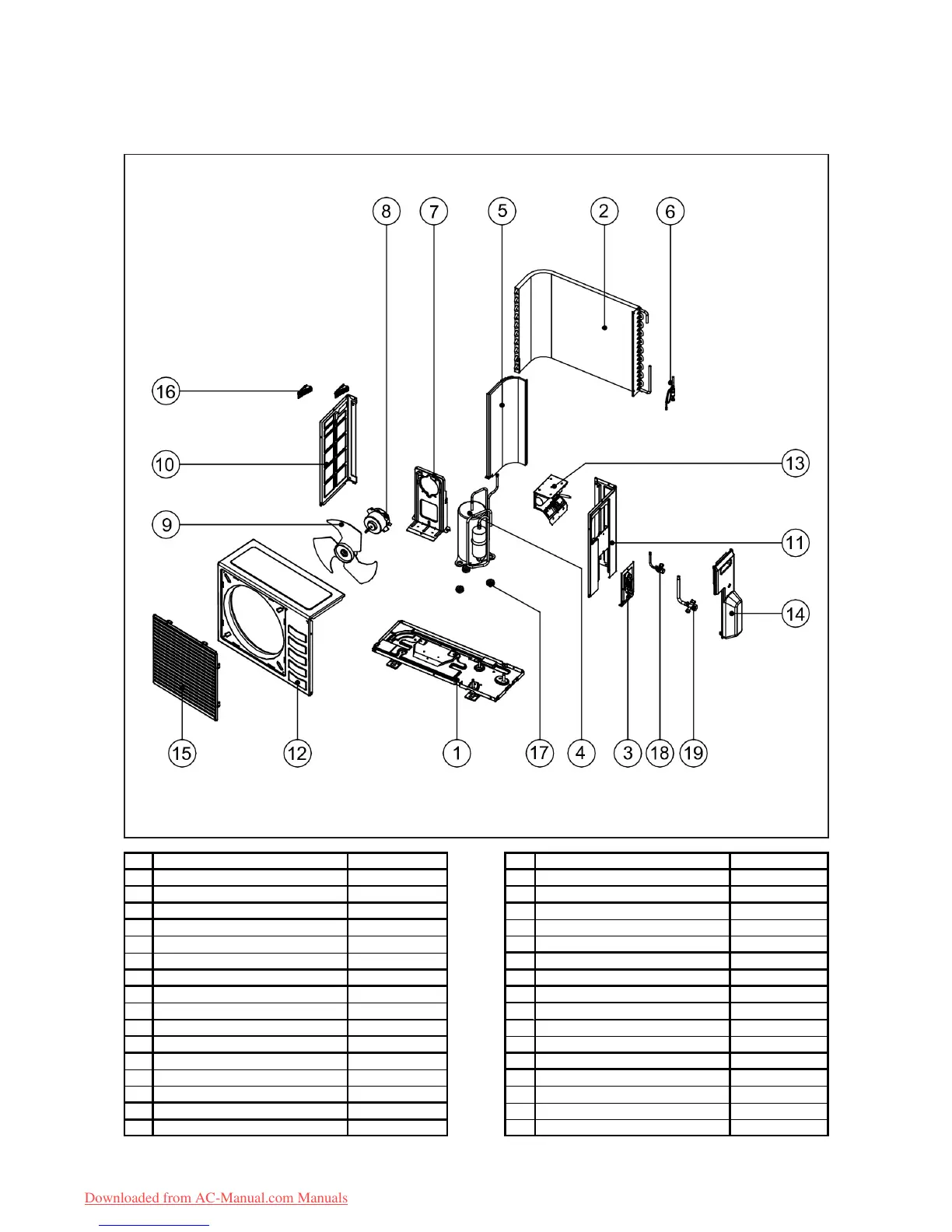

Model: A5LC 10C / 15C
No Descriptions Part No No Descriptions Part No
1 Assy., Base Pan R50014051158 11 Right Panel R01014051167
2 Assy., Condenser Coil R50024064721 12 Assy., Front Panel R01014051171
3 Valve Bracket R01014051164 13 Assy. Control Panel
4 Compressor A5LC 10C R50044058195
A5LC 10C R04019019590 A5LC 15C R50044057994
A5LC 15C R04019019594 14 Assy., Valve Cover R50124051173
5 Assy., Partition R50064055063 15 Assy., Front Grille R50124056700
6 Assy., Cap Tube 16 Plastic, Handle R12014057948
A5LC 10C R50024056101 17 Rubber Grommet
A5LC 15C R50024054807 A5LC 10C R11054000272
7 Bracket, Fan Motor R01014051162 A5LC 15C R11054000271
8 Fan Motor 18 Assy., Flare Vlave 2 Ways 1/4" R50059019453
A5LC 10C R03039016104 19 Assy., Flare Valve 3 Ways 3/8"
A5LC 15C R03039015323 A5LC 10C R50059019454
9 Fan Blade R03019015339 Assy., Flare Valve 3 Ways 1/2"
10 Left Panel R01014051166 A5LC 15C R50054019452
