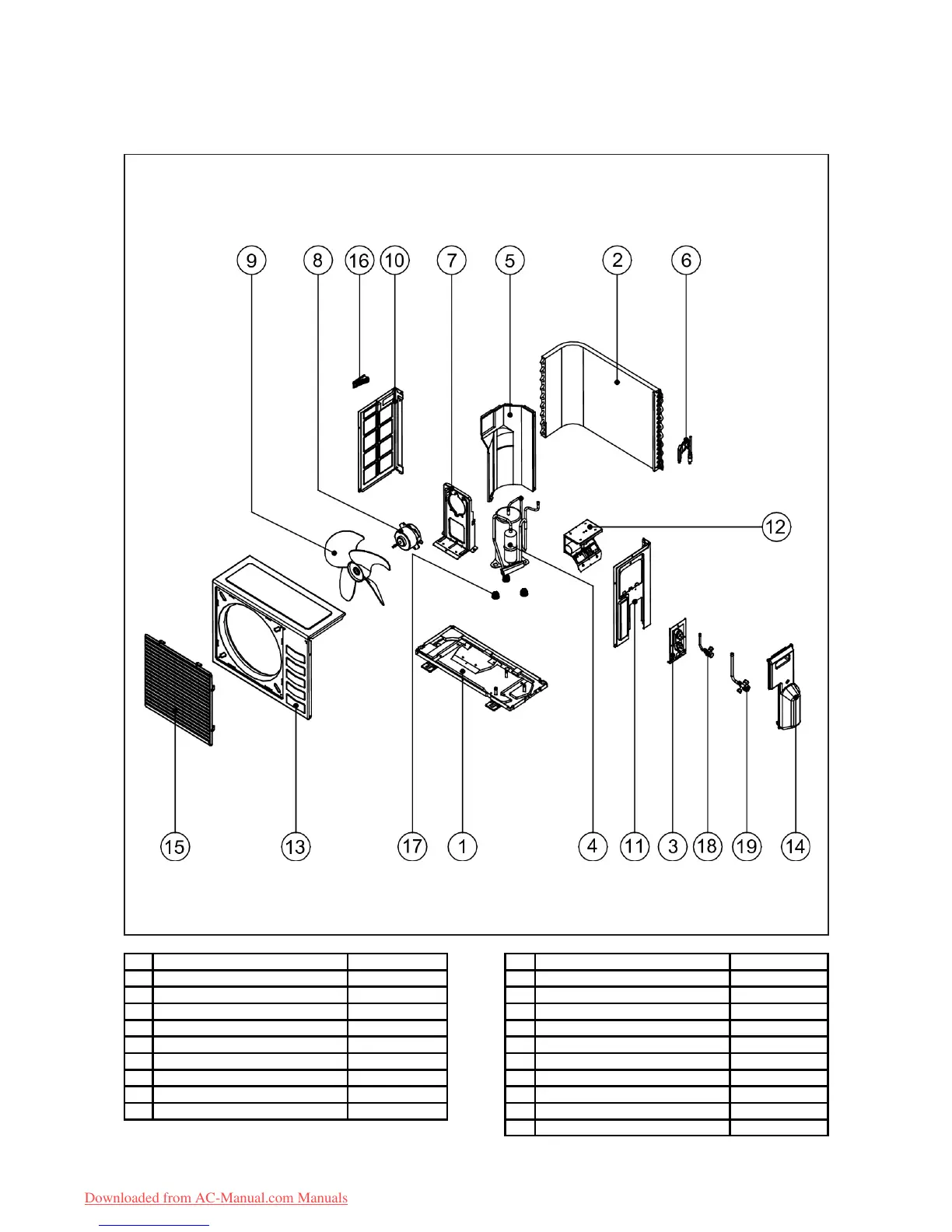

OUTDOOR UNIT
MODEL: A5LC 07C
No Descriptions Part No No Descriptions Part No
1 Assy., Base Pan R50014057372 10 Left Panel R01014052510
2 Assy., Condenser Coil R50024064720 11 Right Panel R01014052509
3 Valve Bracket R01014051164 12 Assy. Control Panel R50044054806
4 Compressor R04019019592 13 Assy., Front Panel R01014052512
5 Assy., Partition R50064065275 14 Assy., Valve Cover R50124055172
6 Assy., Cap Tube R50024064527 15 Assy., Front Grille R50124056905
7 Bracket, Fan Motor R01014052516 16 Plastic, Handle R12014057948
8 Fan Motor R03039015324 17 Rubber Grommet R11059011558
9 Fan Blade R03019004131 18 Assy., Flare Valve 2 Ways 1/4" R50059019453
19 Assy., Flare Valve 3 Ways 3/8" R50059019454
