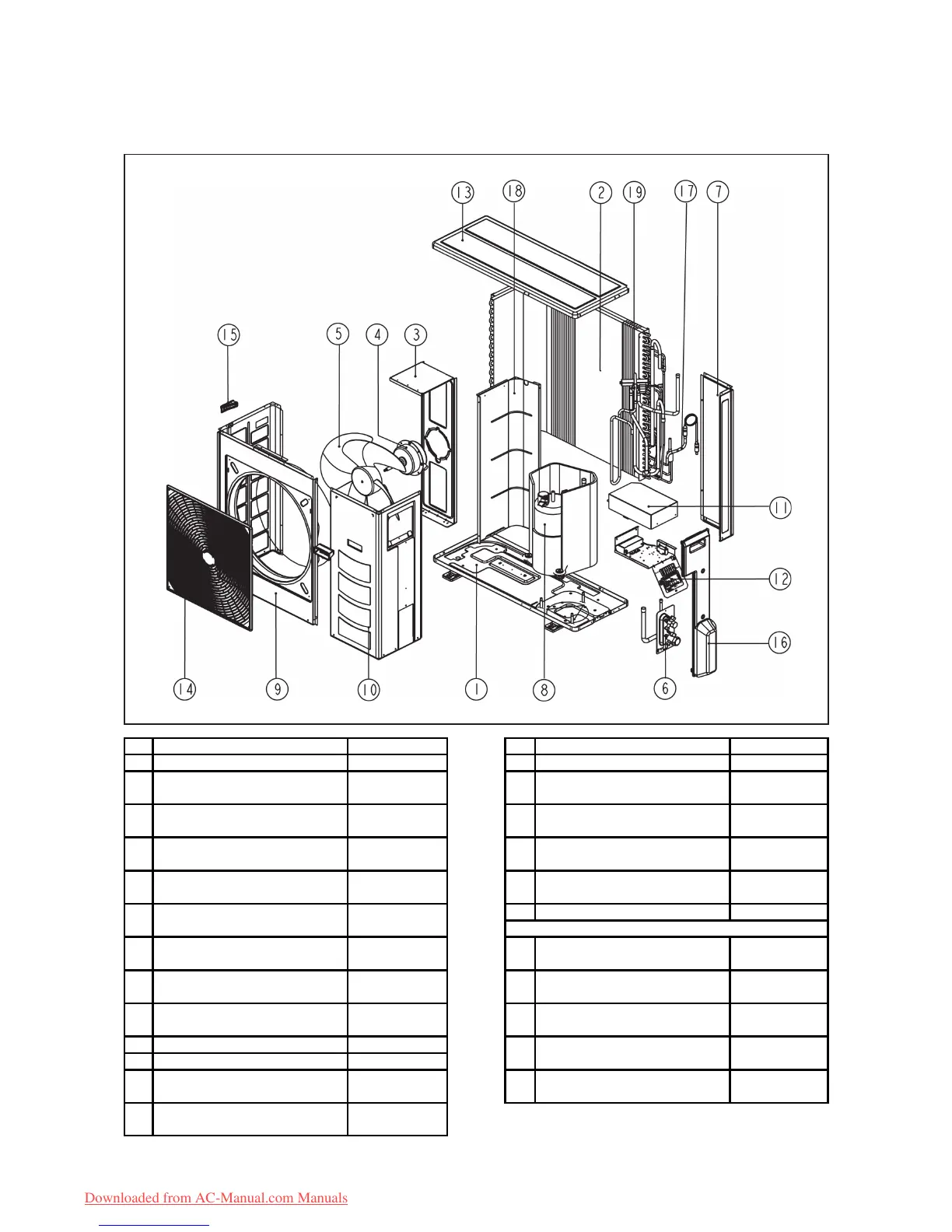

Model: ALC 25CR
No Descriptions Part No No Descriptions Part No
1 ASSY,PAN BASE (5SL20C/CR) R50014078281 13 PANEL TOP (SL20C/25C/28C/CR) R01014070596
18 PARTITION (SL25C/28C/CR) R01014070951
9 PANEL FRONT / LEFT R01014070947
10 PANEL SERVICE (SL25C/28C/CR) R01014070949
2
ASSY. OUTDOOR COIL(SL25CR)2
ROW 7MM COIL
R50024088731
3 BRACKET MOTOR (SL25C/28C/CR) R01014070948
R03039028207
5
FAN PROPELLER, ¥460 0Z40700
SUNWILL CHINA
R03019023393
4
MOTOR, MSL25C-502-WL
WELLING
6
ASSY VALVE BRACKET
(SL25C/28C/CR)R22
R50014073890
7
PANEL RIGHT BACK
(SL25C/28C/CR)
R01014070950
8
COMPRESSOR, ASSY
48B180JV2JH SAMSUNG
R50049022614
8
COMPRESSOR, 2JS438D3AA04
MATSUSHITA
R04019027570
11
PANEL TERMINAL COVER
(SL20C/25C/28C/CR)
R01014070838
12
ASSY. CONTROL PANEL
(5SL20CR)
R50044086136
14
ASSY FRONT GRILLE
(SL20C/25C/28C/CR)
R50124072880
15
PLASTIC,HANDLE
SL07C/09C/10C/15C/CR
R12014057948
16
ASSY VALVE COVER
(SL25C/28C/CR)
R50124073905
17
ASSY. CAP TUBE SL25C/CR (7MM
COIL)
R50024088789
ASSY FLARE VALVE 3
WAY(5/8")SL20C/25C/28
R50054072863
ASSY, 3 WAYS VALVE (3/8")
90.0mmL HANGJI
R50059022577
CAPACITOR, CMPSR 50uF/450VAC
Shizuki
R04029026779
Parts not showed in diagram
FELT, COMPRESSOR (SL20/25C
COMP)
R06074084746
BACK GRILLE WITH PAINT
(SL25C/28C/CR)
R50019026514
