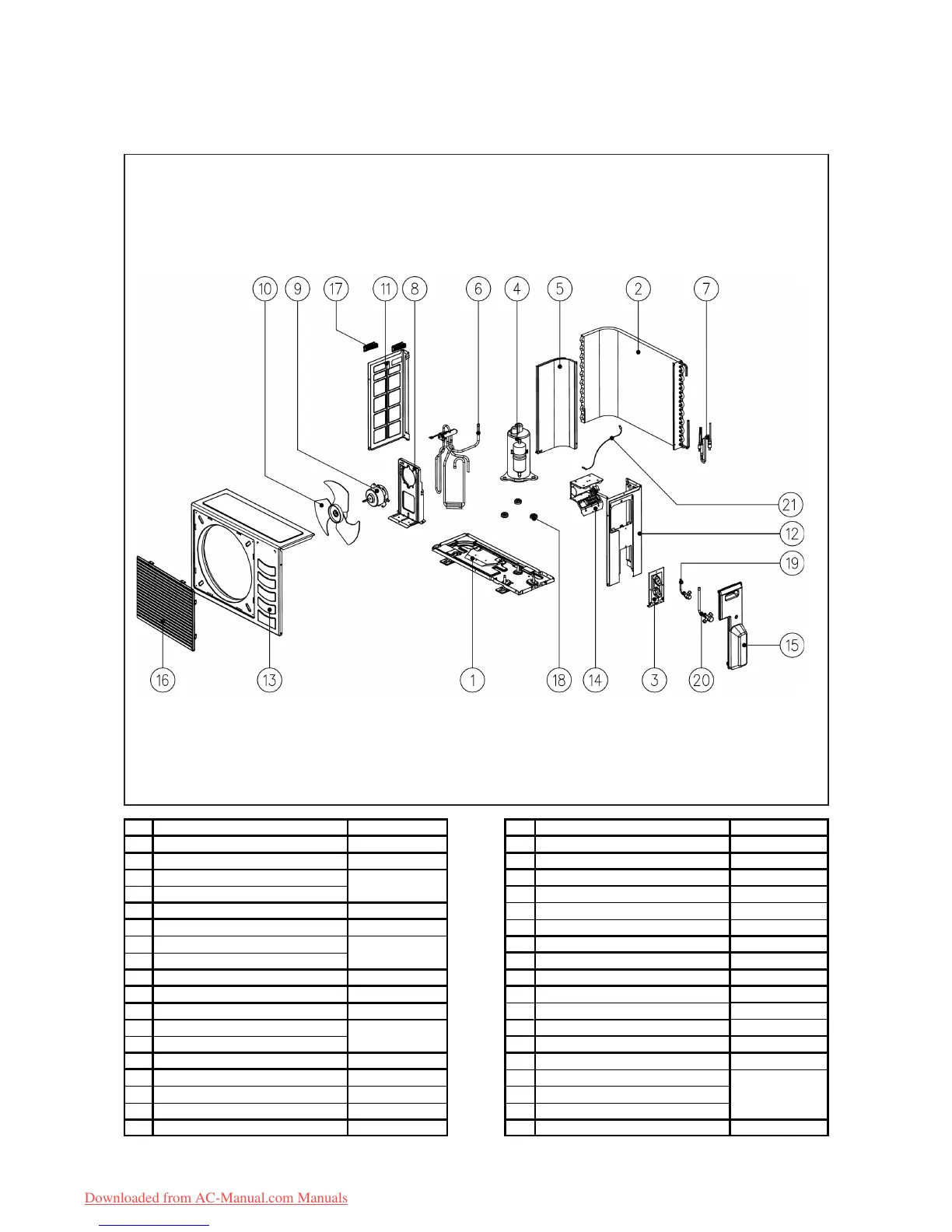

Model: A5LC 10CR / 15CR
No Descriptions Part No No Descriptions Part No
1 Assy., Base Pan R50014051158 11 Left Panel R01014051166
2 Assy., Condenser Coil 12 Right Panel R01014051167
A5LC 10CR R50024064721 13 Assy., Front Panel R01014051171
A5LC 15CR R50024066517 14 Assy. Control Panel
3 Valve Bracket R01014051164 A5LC 10CR R50044059033
4 Compressor A5LC 15CR R50044059034
A5LC 10CR R04019019590 15 Assy., Valve Cover R50124051173
A5LC 15CR R04019019594 16 Assy., Front Grille R50124056700
5 Assy., Partition R01014051165 17 Plastic, Handle R12014057948
6 Assy., 4 Way Valve R50024066173 18 Rubber Grommet
7 Assy., Cap Tube A5LC 10CR R11054000272
A5LC 10CR R50024066256 A5LC 15CR R11054000271
A5LC 15CR R50024066493 19 Assy., Flare Valve 2 Ways 1/4" R50059019453
8 Bracket, Fan Motor R01014051162 20 Assy., Flare Valve 3 Ways 3/8"
9 Fan Motor A5LC 10CR R50059019454
A5LC 10CR R03039016104 Assy., Flare Valve 3 Ways 1/2"
A5LC 15CR R03039015323 A5LC 15CR R50054019452
10 Fan Blade R03019015339 21 Sensor, Outdoor Defrost R50134039416
