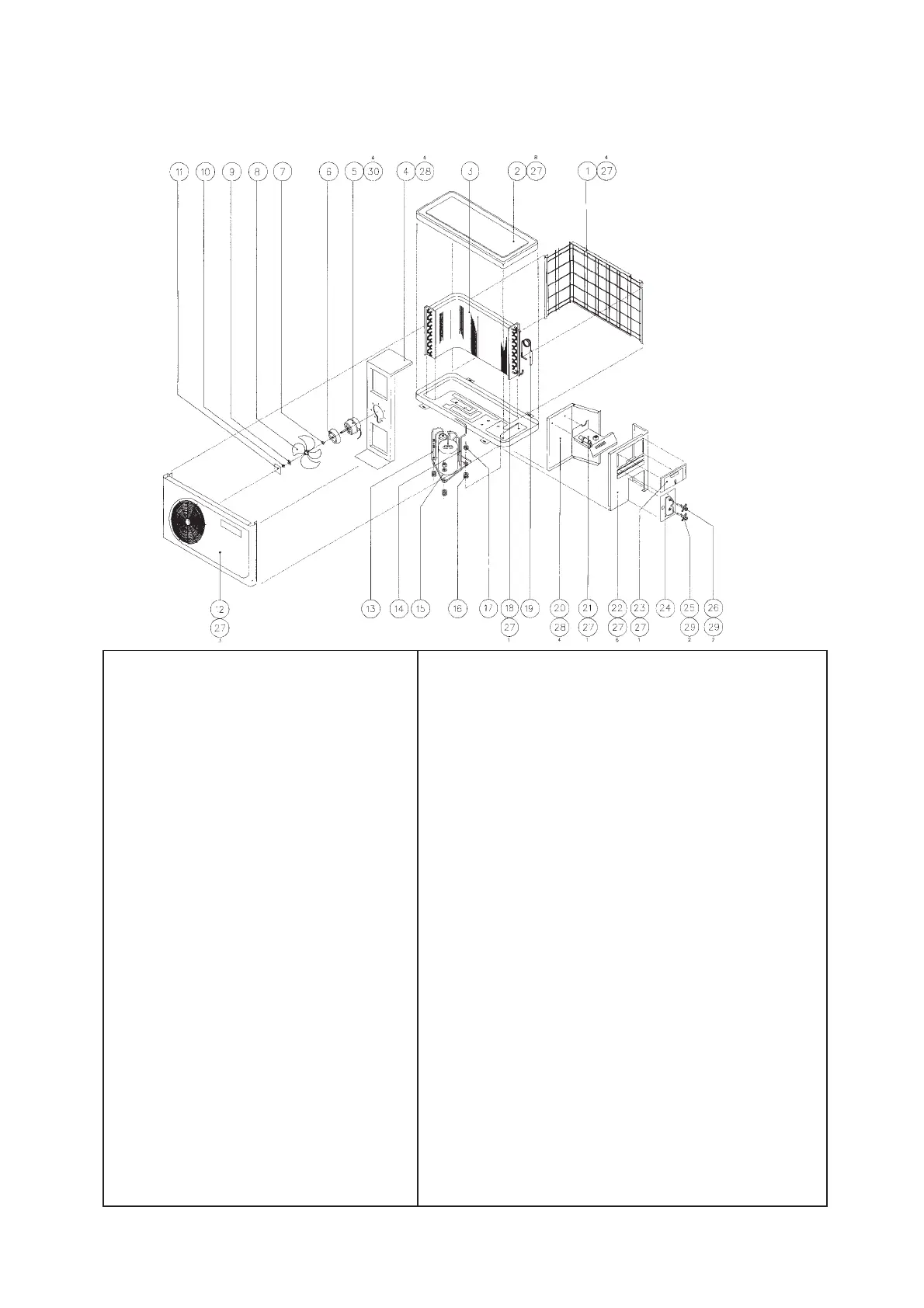

MODEL: ALC 20B / 25B
A4LC 20B / 25B
1. ASSY., BACK PANEL 16. GROMMET, RUBBER
2. ASSY., TOP PANEL 17. NUT, WITH WASHER
3. ASSY., CONDENSOR COIL 18. ASSY., BASE PAN
4. BRACKET, MOTOR MOUNTING 19. ASSY., CAPILLARY TUBE
5. MOTOR, FAN 20. ASSY., PARTITION
6. FLINGER 21. ASSY., TERMINAL BOX PANEL W/O CONT.
7. WASHER, RING 22. ASSY., SIDE PANEL
8. FAN, 16" 23. ASSY., ACCESS PANEL
9. WASHER, SQUARE 24. PLATE, FLARE VALVE
10. HEX. NUT 25. VALVE, SUCTION
11. LABEL, BLACK 26. VALVE, LIQUID
12. ASSY., PANEL FRONT 27. SCREW, TRUSS HEAD PHILIP
13. ASSY., SUCTION TUBE 28. SCREW, PAN HEAD PHILIP
14. ASSY., DISCHARGE TUBE 29. SCREW, ROUND HEAD PHILIP
15.ROTARY COMPRESSOR 30. SCREW, TRUSS HEAD PHILIP
