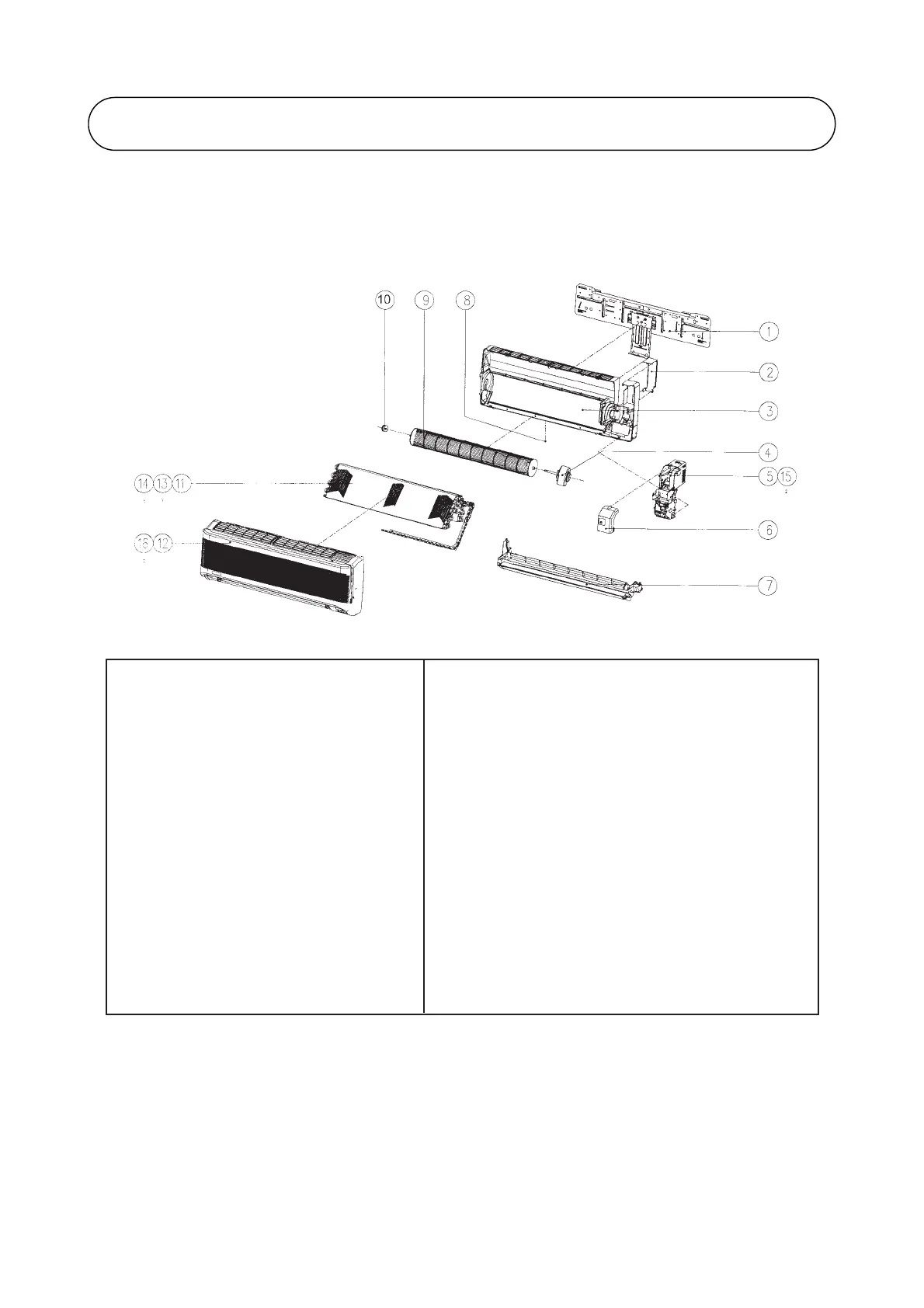

17. PARTS LIST
INDOOR UNIT
MODEL: AWM 10F / 10FR / 15F / 15FR
1. ASSY. MOUNTING PLATE 10. BUSH, FAN
2. CLAMP. PIPING 11. ASSY. EVAPORATOR COIL
3. ASSY. CHASIS 12. ASSY. FRONT FRAME A
4. ASSY. FAN MOTOR 13. WASHER, INT TEETH STAR
5. ASSY. CONTROL BOX 14. SCREW, PAN HEAD MACHINED
6. ASSY. COVER CONTROL BOX 15. SCREW, SELF TAPPING ROUND HEAD
7. ASSY. AIR DISCHARGE HOUSING 16. SCREW, SELF TAPPING PAN HEAD
8. RIVET
9. FAN, CROSS FLOW
