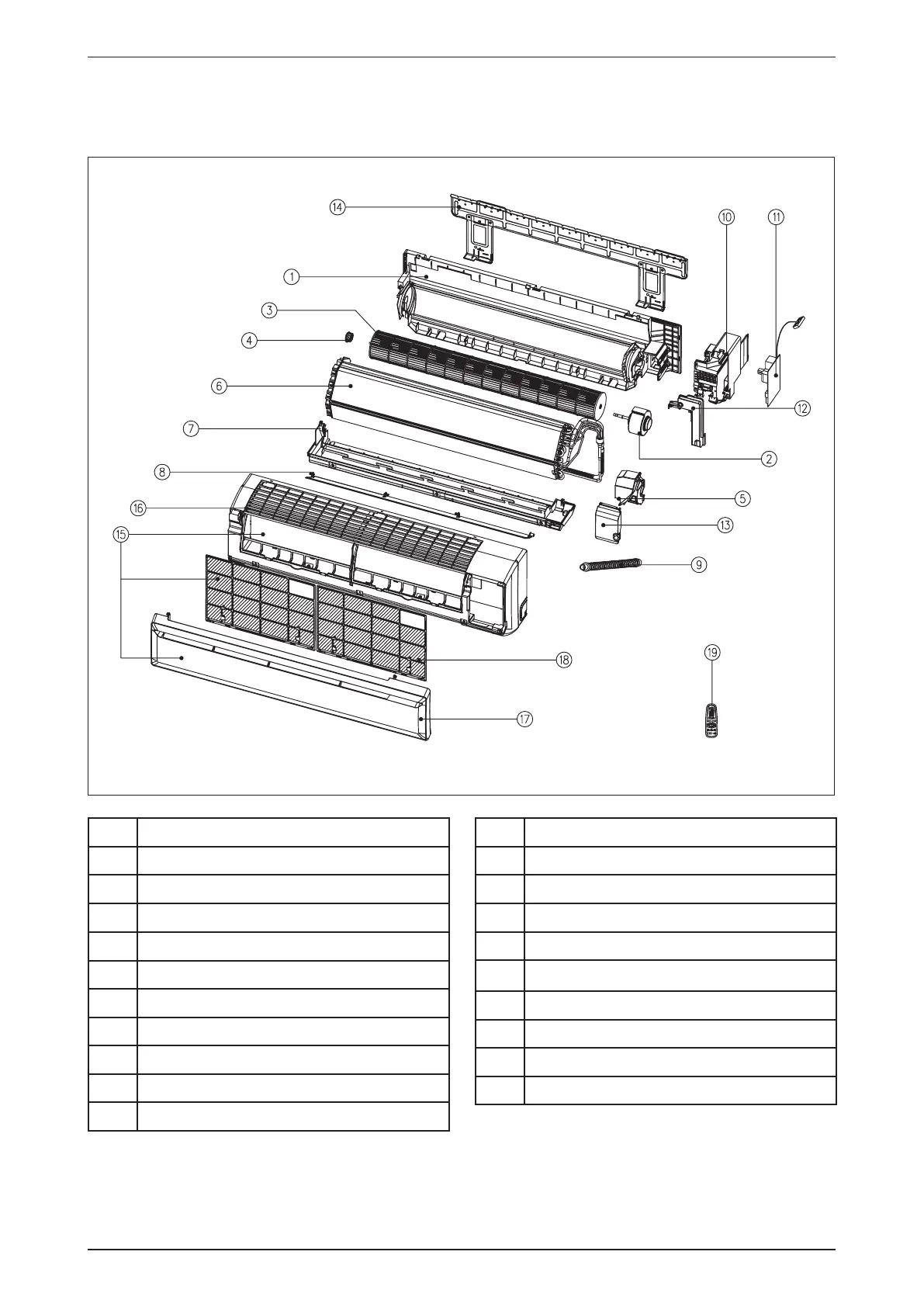

Exploded View and Part List AWM-J-2010
Note: All exploded view and part list are subjected to change by the manufacturer without prior notice
INDOOR UNIT
MODEL: AWM20/25J/JR
No Description
1 Assy, Chassis
2 Motor
3 Blower
4 Fan Bush
5 Motor Cover
6 Assy, Indoor Coil
7 Assy, Air Discharge Housing
8 Assy, Louver
9 Hose
10 Assy, Control Box
No Description
11 Assy, PCB (with Lamp Cover)
12 Control Box Cover
13 Service Cover
14 Assy, Mounting Plate
15 Assy, Front Cover
16 Front Cover
17 Intake Grill
18 Filter
19 Handset Wireless
