Service and Maintenance A5LCY-E-2010

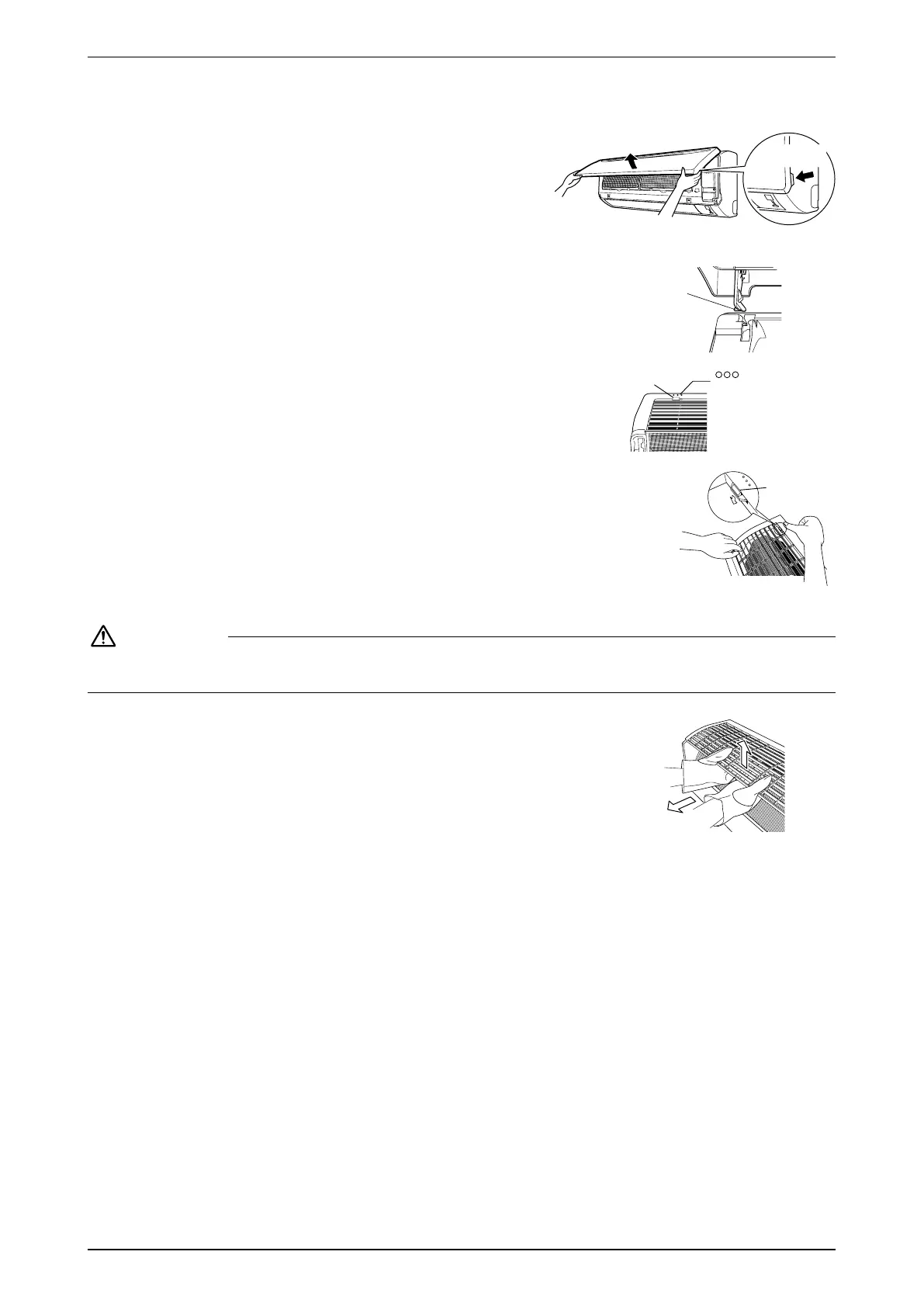

1. Removing and installing front panel
• Removal method
1) Place your fi ngers in the indentations on the main unit
(one each on the left and right sides), and open the panel
until it stops.
2) Continue to open the front panel further while sliding the panel
to the right and pulling it toward you in order to disengage the
rotating shaft on the left side. To disengage the rotating
shaft on the right side, slide the panel to the left while pulling it
toward you.
• Installation method
Align the tabs of the front panel with the grooves, and push all the
way in. Then close slowly. Push the center of the lower surface of
the panel fi rmly to engage the tabs.
2 Removing and installing front grille
• Removal method
1) Remove front panel to remove the air fi lter.
2) Remove the screws (2) from the front grille.
3) In front of the OOO mark of the front grille, there are 3 upper
hooks. Lightly pull the front grille toward you with one hand,
and push down on the hooks with the fi ngers of your other
hand.
When there is no work space because the unit is close to ceiling
CAUTION
Be sure to wear protection gloves.
Place both hands under the center of the front grille, and while pushing up,
pull it toward you.
• Installation method
1) Install the front grille and fi rmly engage the upper hooks (3 locations).
2) Install 2 screws of the front grille.
3) Install the air fi lter and then mount the front panel.
•
Indentations on
the main unit
Push the rotating
shaft of the front
panel into the groove.
Rotating shaft
mark area
(3 locations)
Upper hook
Lightly pull the front
grille toward you with
one hand, and push
down on the hooks with
the fingers of your other
hand. (3 locations)
Push
down.
Upper hook
1) Push up.
2) Pull toward you.
