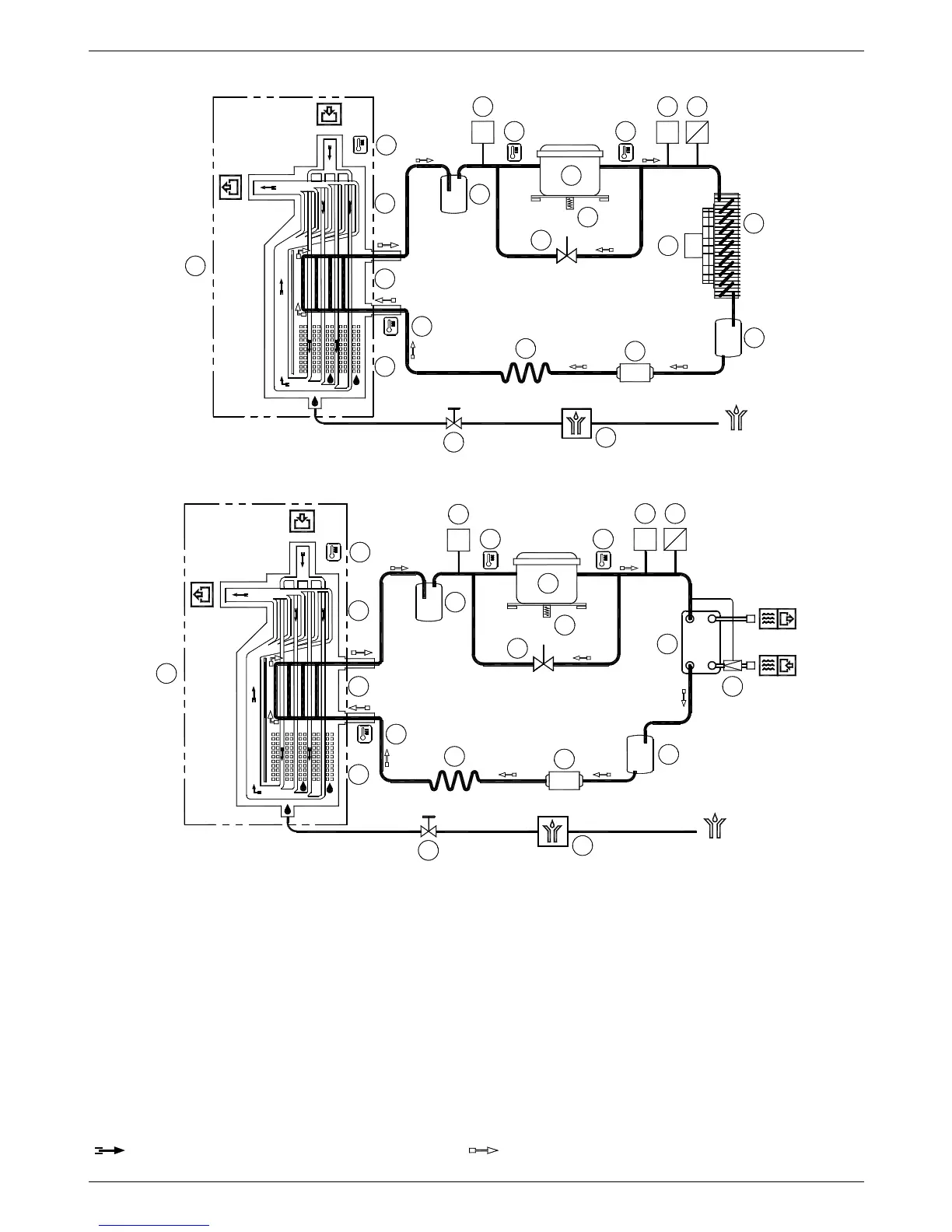

7.3 Flow diagram (Air-Cooled)
13
1
1c
T1
1b
1a
P<
11
10
7
6
9M
8
T2
12.2
25
2
D
G
F
0
1
0
5
21
12.1
4
P>
mA
P
37
20
T4
12.4
12.3
T3
36
7.4 Flow diagram (Water-Cooled)
13
1
1c
T1
1b
1a
T2
12.2
D
G
F
0
1
0
6
21
19
18
20
10
11
12.1
4
37
P>
mA
P
36
7
25
T3
T4
6
12.3
P<
2
12.4
1
Alu-Dry module
12.2
T2 Temperature probe – Air IN
1a
Air-to-air heat exchanger
12.3
T3 Temperature probe – Compressor suction
1b
Air-to-refrigerant heat exchanger
12.4
T4 Temperature probe – Compressor discharge
1c
Condensate separator
13
Condensate drain service valve
2
Refrigerant pressure switch LPS
18
Condenser (Water-Cooled)
4
Refrigerant pressure switch HPS
19
Condenser water regulating valve (Water-Cooled)
6
Compressor
20
Refrigerant accumulator
7
Hot gas by-pass valve (ACT 3000-5000 A.Cooled & ACT 600-5000 W.Cool.)
8
Condenser (Air-Cooled)
21
Electronic drainer
9
Condenser fan (Air-Cooled)
25
Compressor crankcase heater
10
Filter dryer
36
Liquid separator
11
Capillary tube
37
Refrigerant pressure transducer BHP
12.1
T1 Temperature probe – DewPoint
Compressed air flow direction
Refrigerant gas flow direction
