16mm
Installation Procedure Step by Step

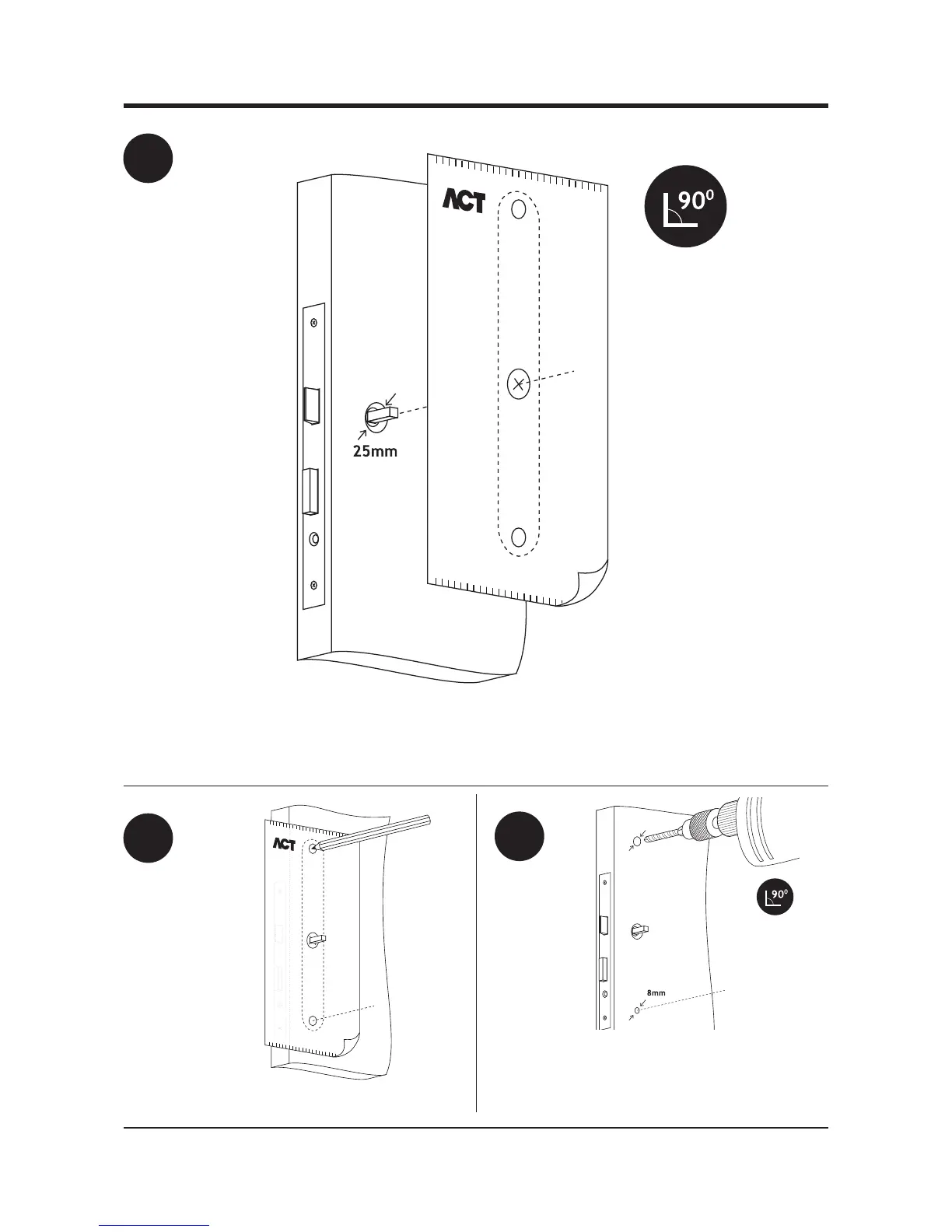

Align the door drill template on the door. Use a spindle inserted through
the mortise lock to position the template correctly.
Drill the top hole using a 16mm bit. Drill the hole at
the bottom using an 8mm drill bit, drilling halfway from
either side of the door. (Top hole needs to be larger to
accommodate the eLock cable).
Mark the drill points on both sides of the door.
1
2
3
