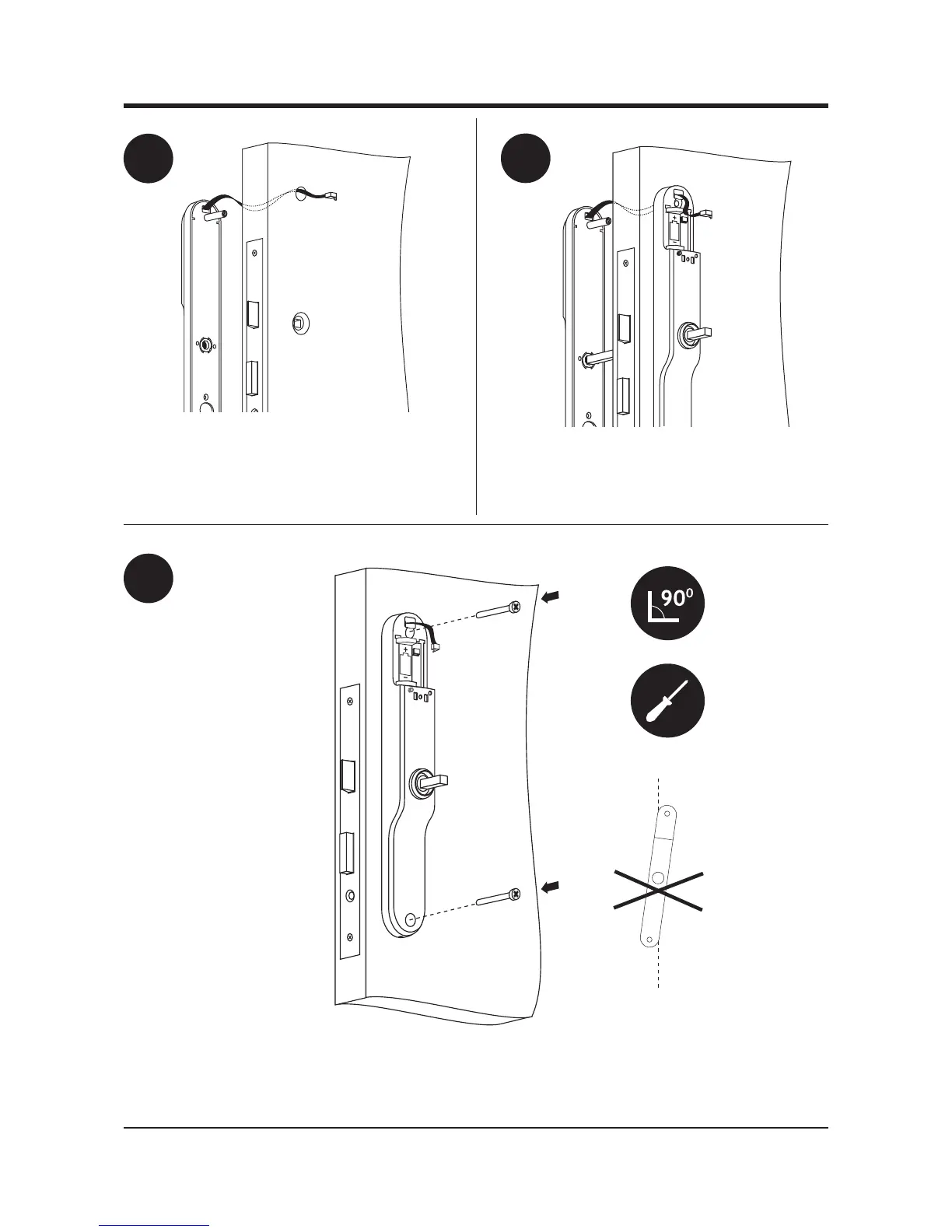

Fit the back escutcheon and spindle through the mortise lock. Thread the cable through
hole at the top of the back escutcheon. Push the spindle through the front escutcheon.
Thread the cable from the front escutcheon through
the top hole in the door. Do not force the cable or use
a sharp instrument to pass it through the door.
5
6
4
Ensure that the unit is aligned correctly. Screw
the units together tightly. Ensure the cable is
not trapped.
